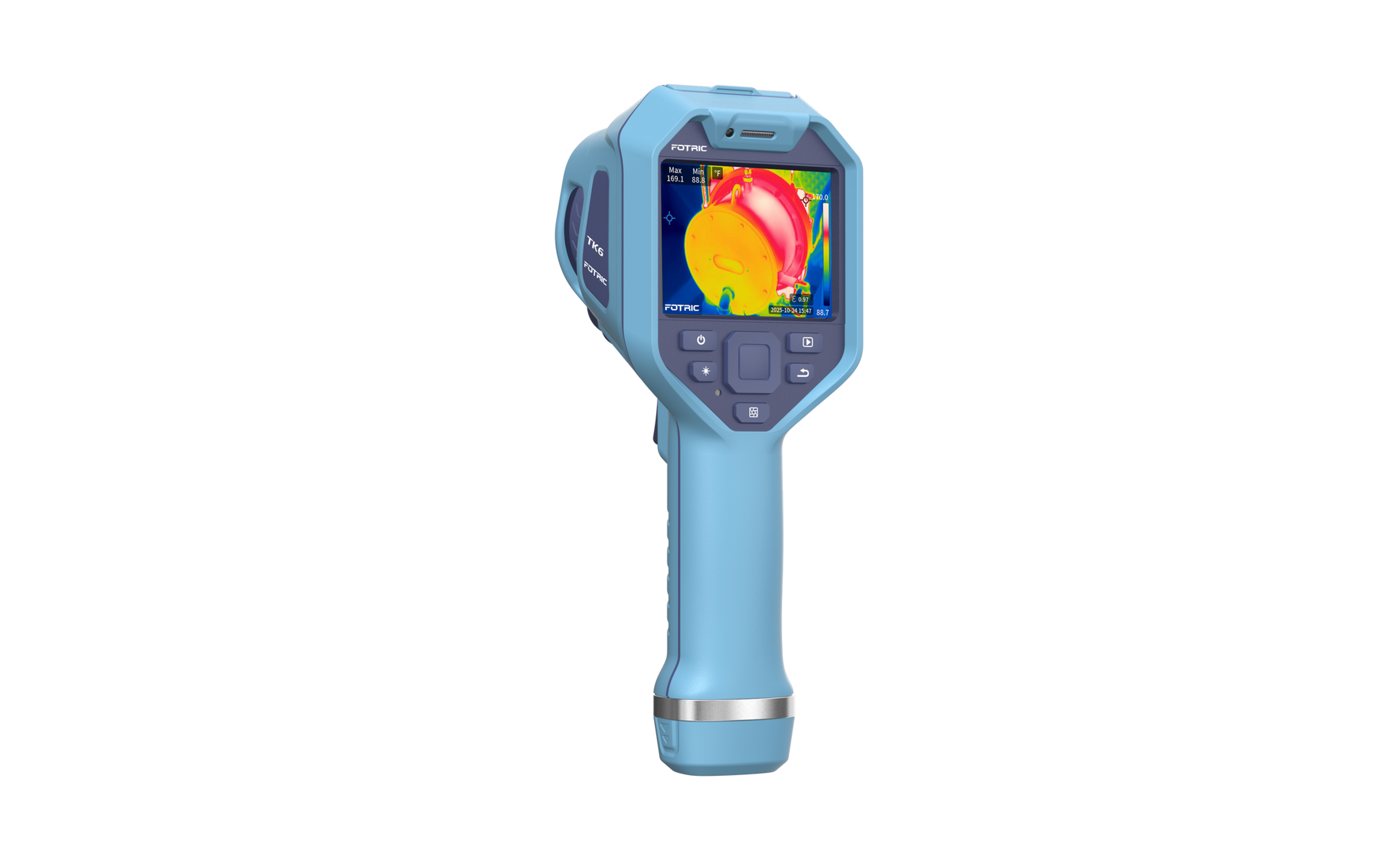

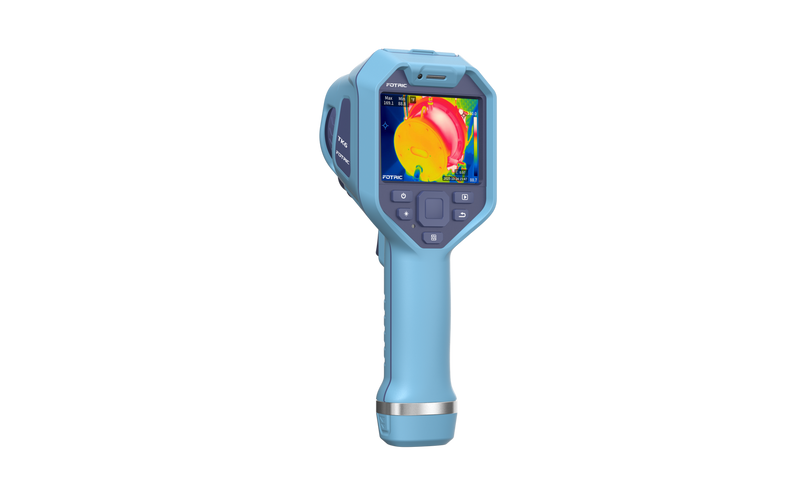

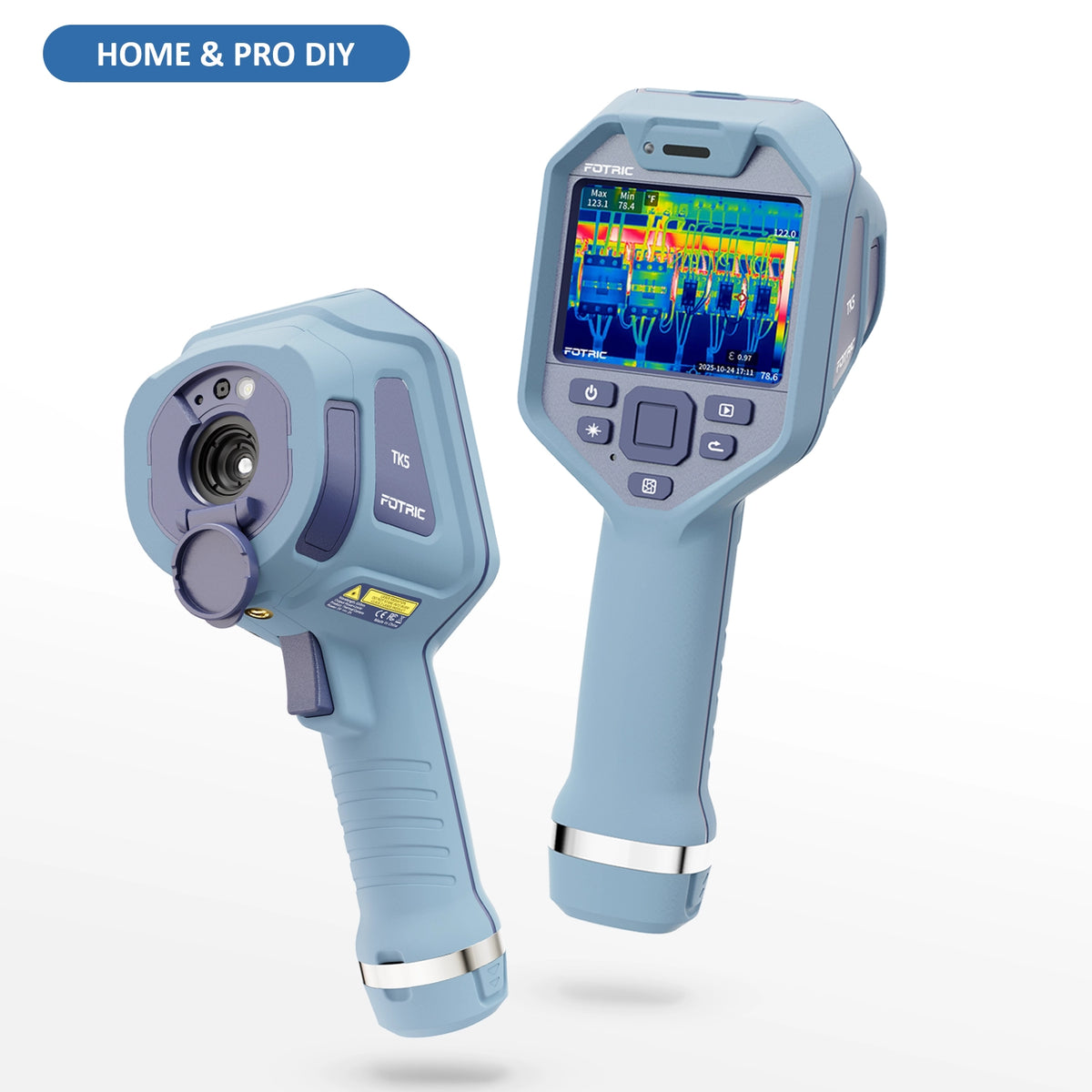

FOTRIC TK5 Thermal Imaging Camera
FOTRIC TK5 열화상 카메라, 384 x 288 IR 해상도, 25°*19° FOV, 건물 및 전기 검사용 5MP 일반 카메라 포함 수동 초점 열화상 카메라, -4°F ~ 1022°F, 3.5인치 터치스크린
- 정가
- $649.00
- 할인가
- $649.00
- 정가
-
배송은(는) 결제 시 계산됩니다.
"
"

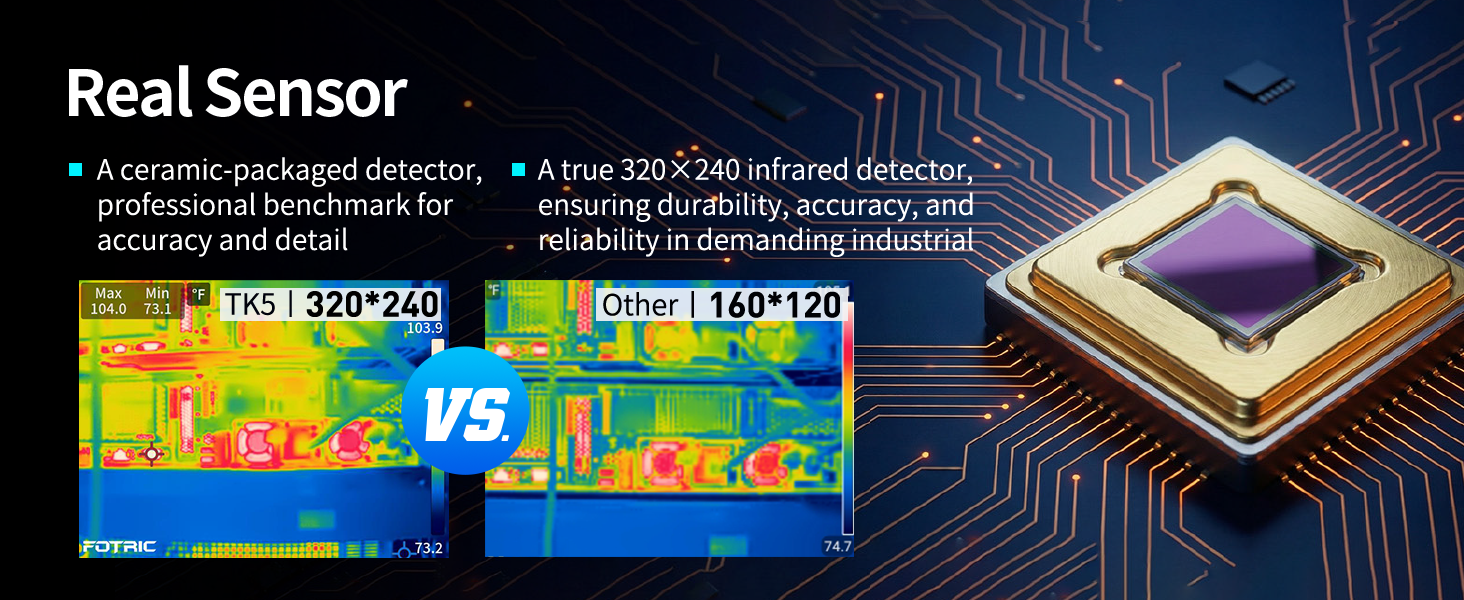

- Professional-Grade 320×240 true thermal resolution delivers 76,800 raw pixels via high-quality ceramic infrared detector. Unlike software-interpolated devices, FOTRIC TK5 captures real pixel-by-pixel thermal data for stable and accurate industrial inspection.
- Featuring 12 µm pixel-pitch design and 40mK (0.04°C) thermal sensitivity, the camera detects subtle temperature differences clearly with high contrast. It efficiently spots electrical hotspots, insulation defects, HVAC malfunctions and hidden building faults.

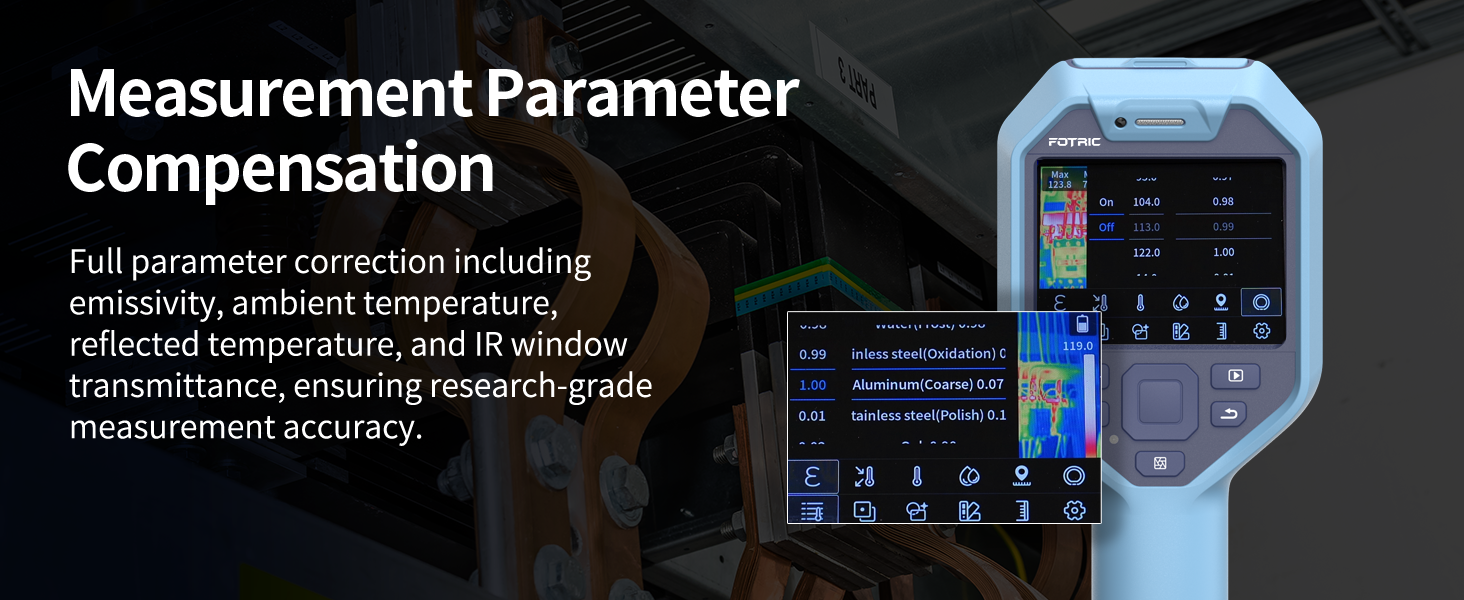

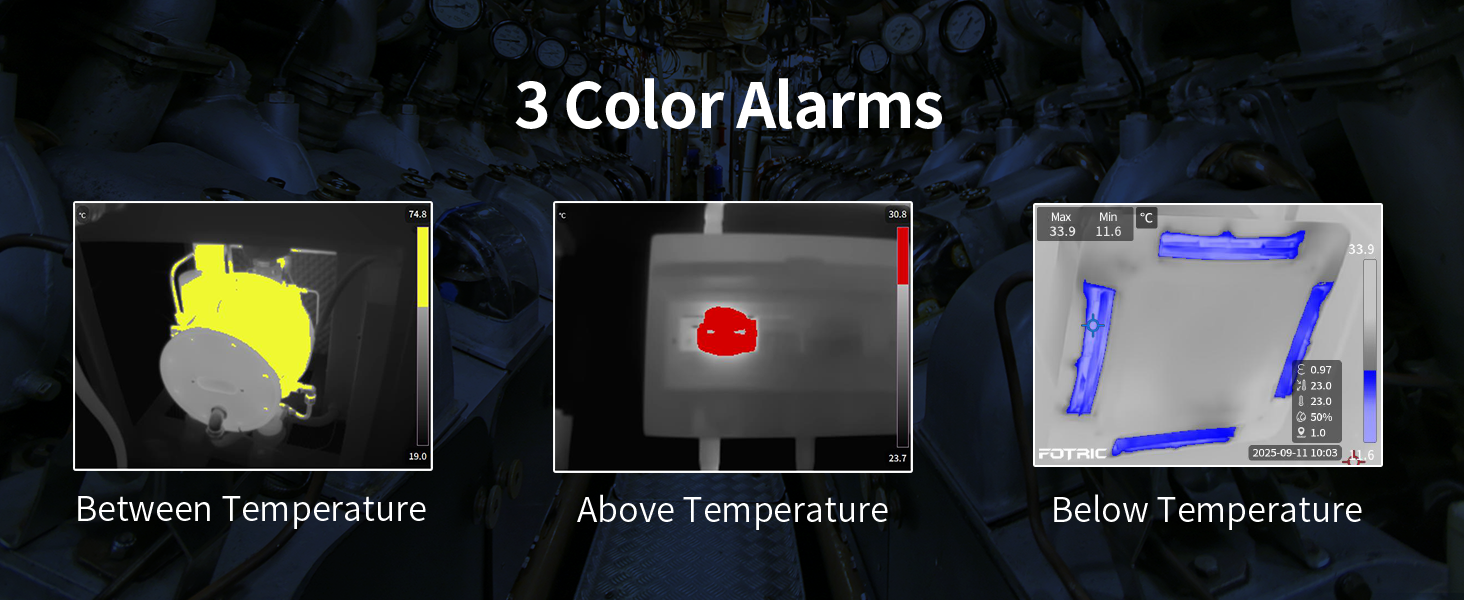

- Equipped with practical built-in diagnostic tools: auto hot/cold spot tracking, adjustable emissivity and customizable temperature color alarms. Perfect for electrical maintenance, HVAC troubleshooting, building moisture detection and home inspection tasks.

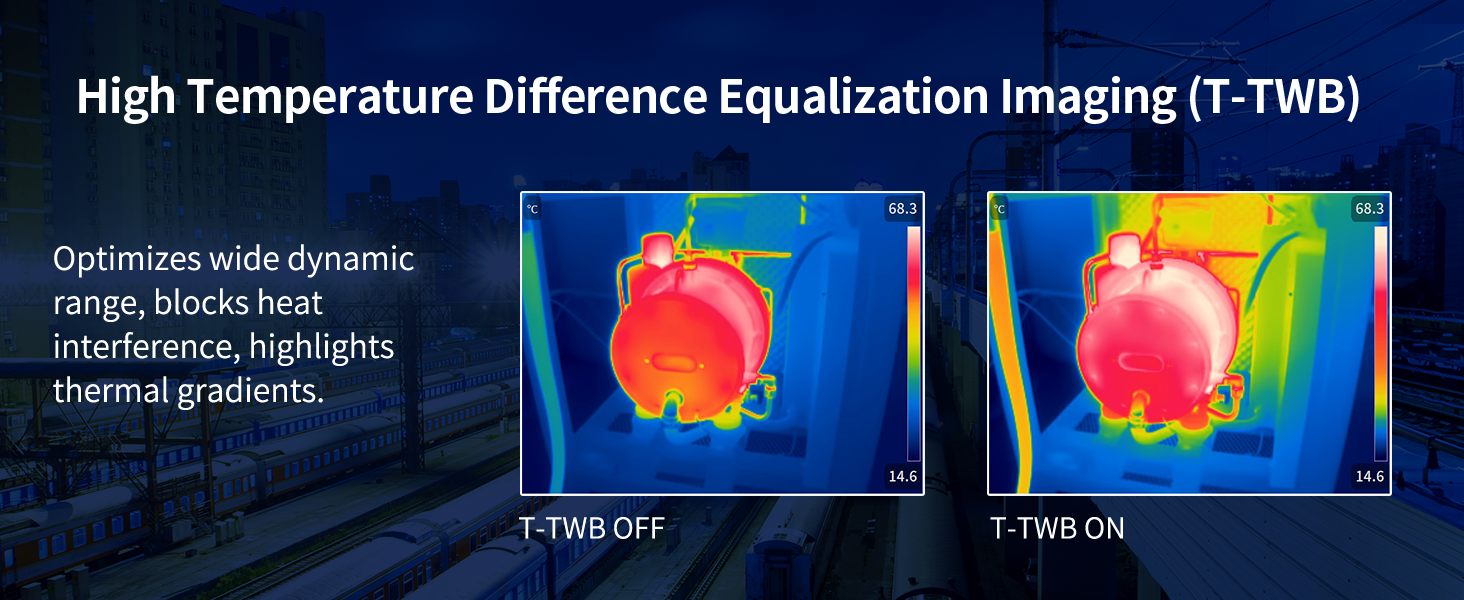

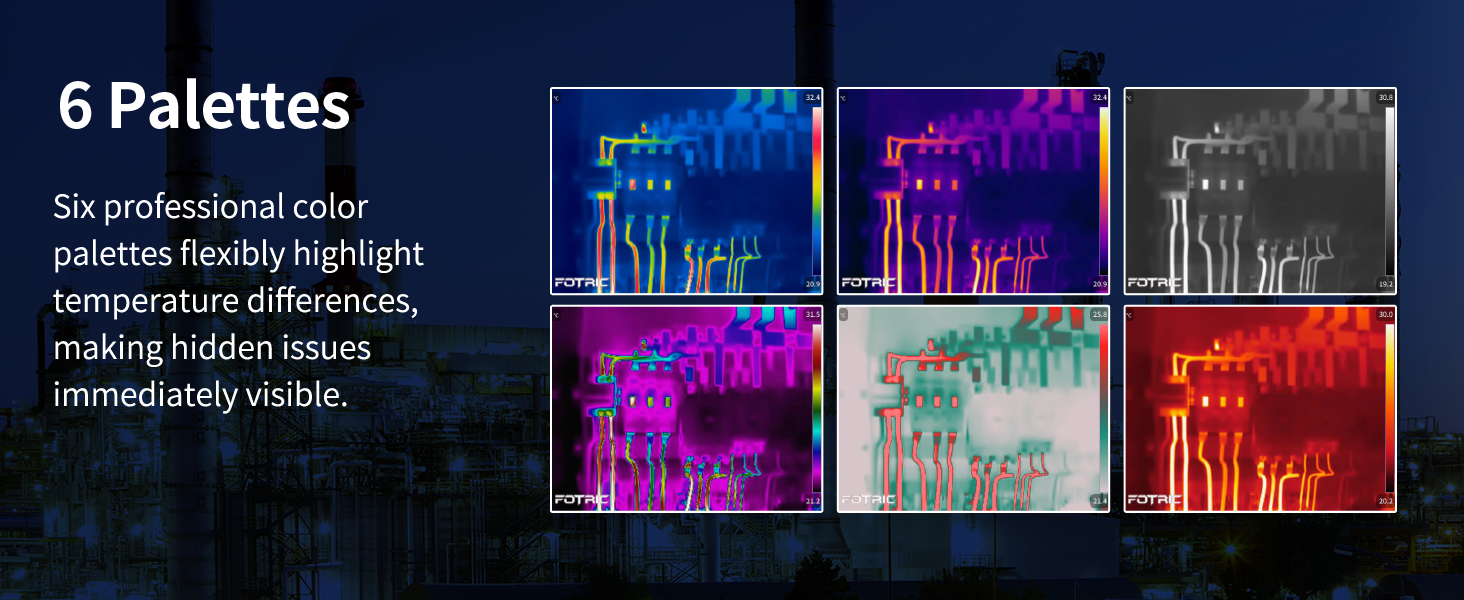

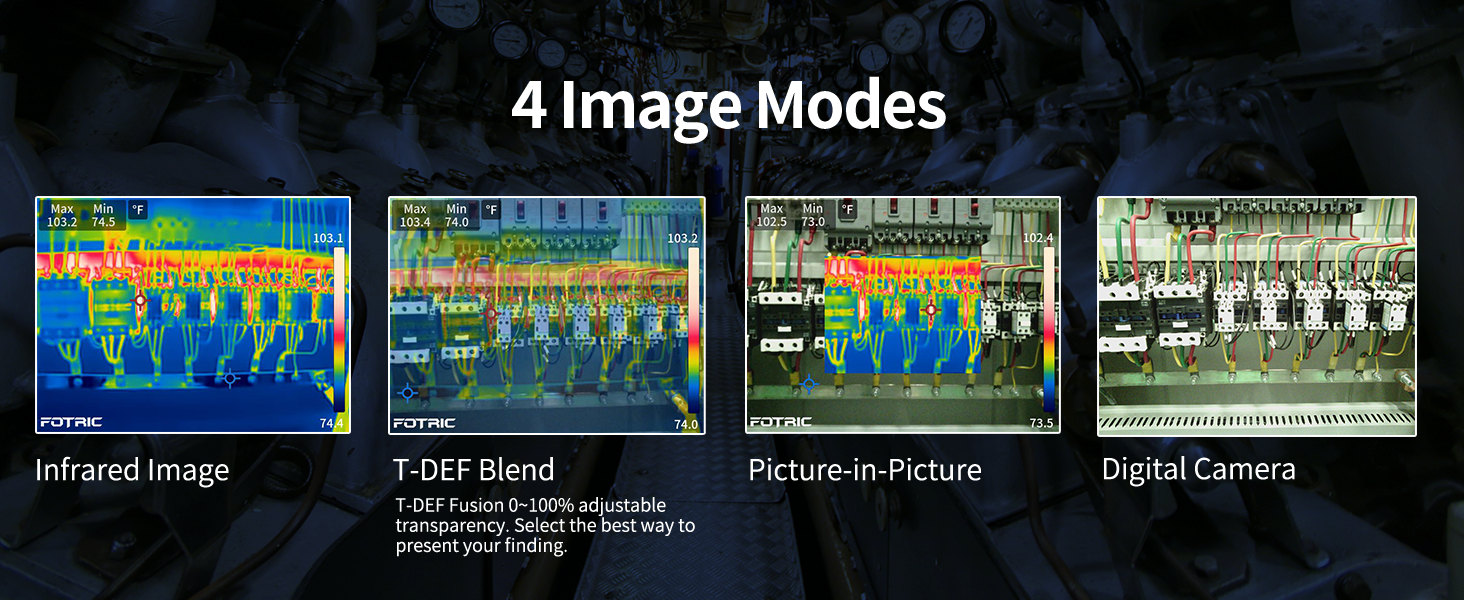

- Support 4 flexible image modes: Infrared, T-DEF Fusion, Picture-in-Picture and Digital Camera. Adopted TWB Thermal Wavelength Balancing technology to optimize color palette distribution, presenting temperature differences more intuitively for faster diagnosis.

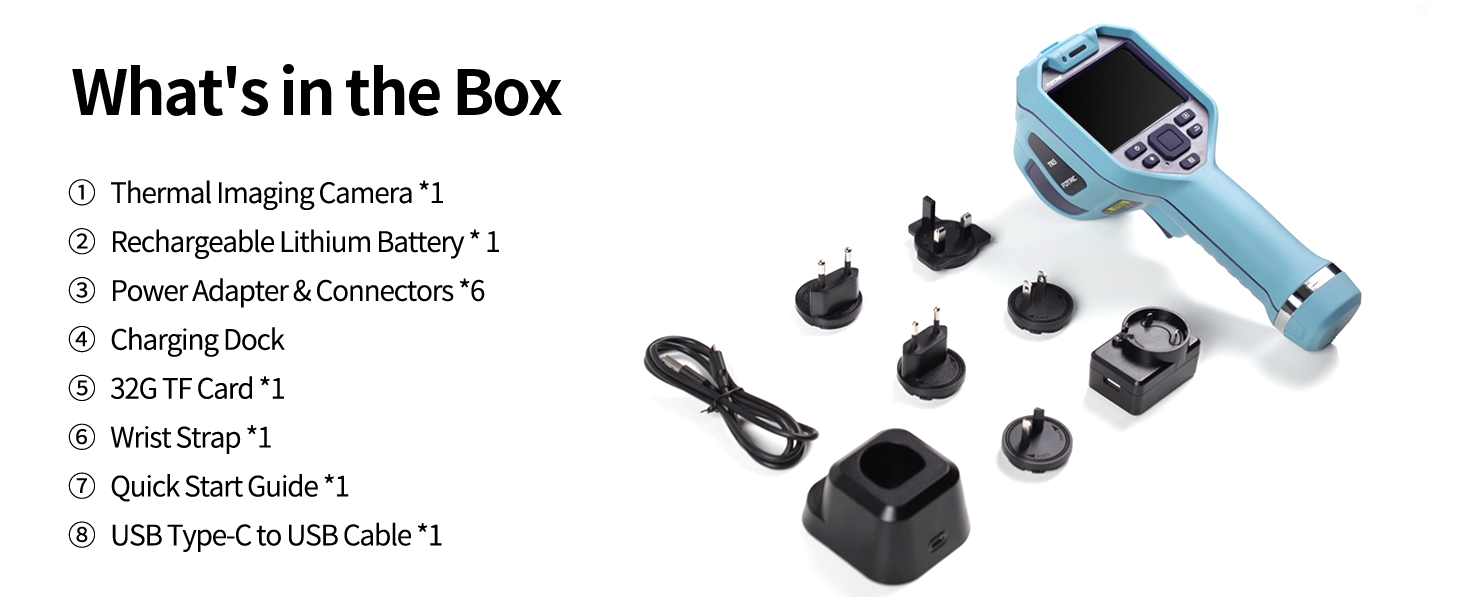

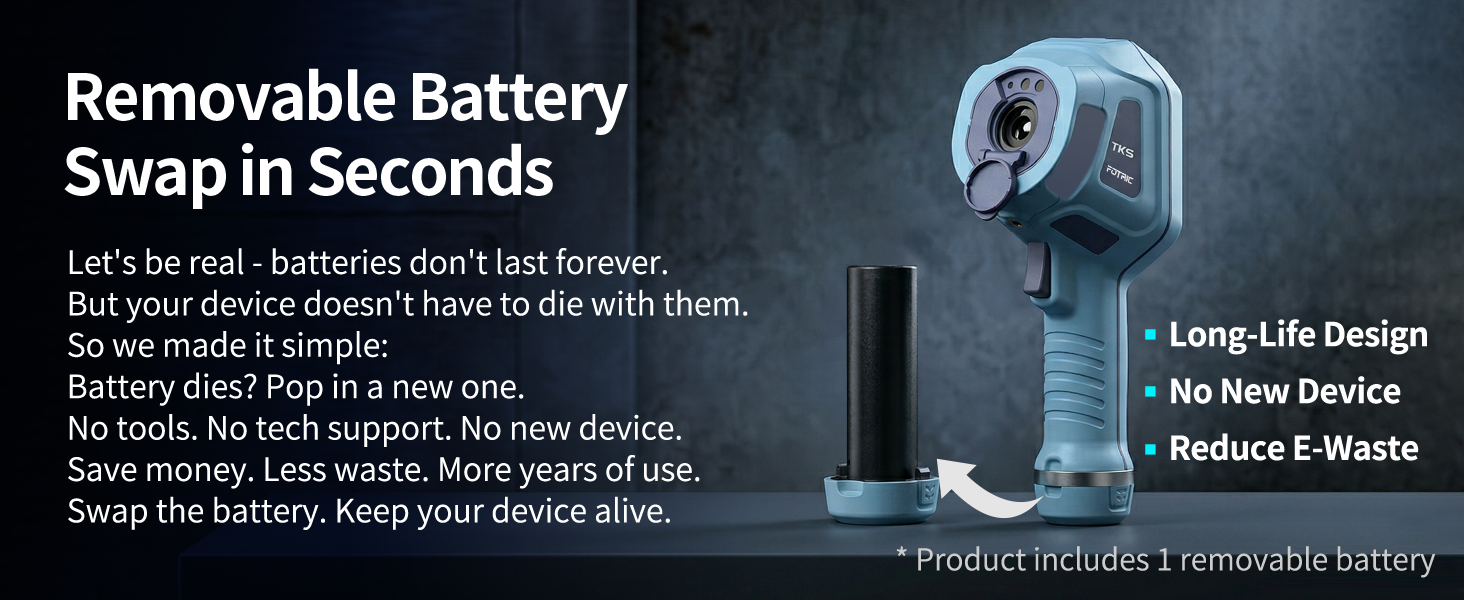

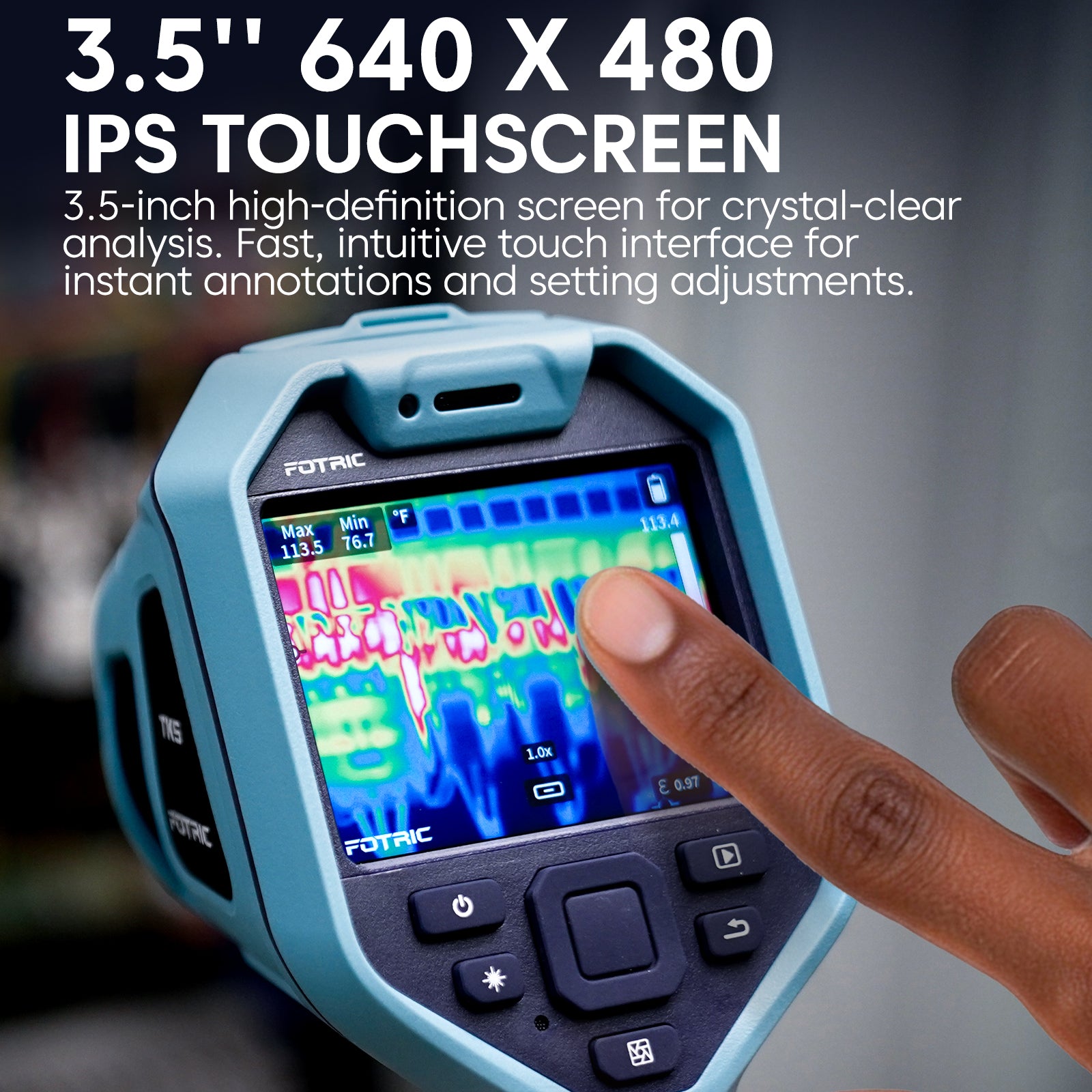

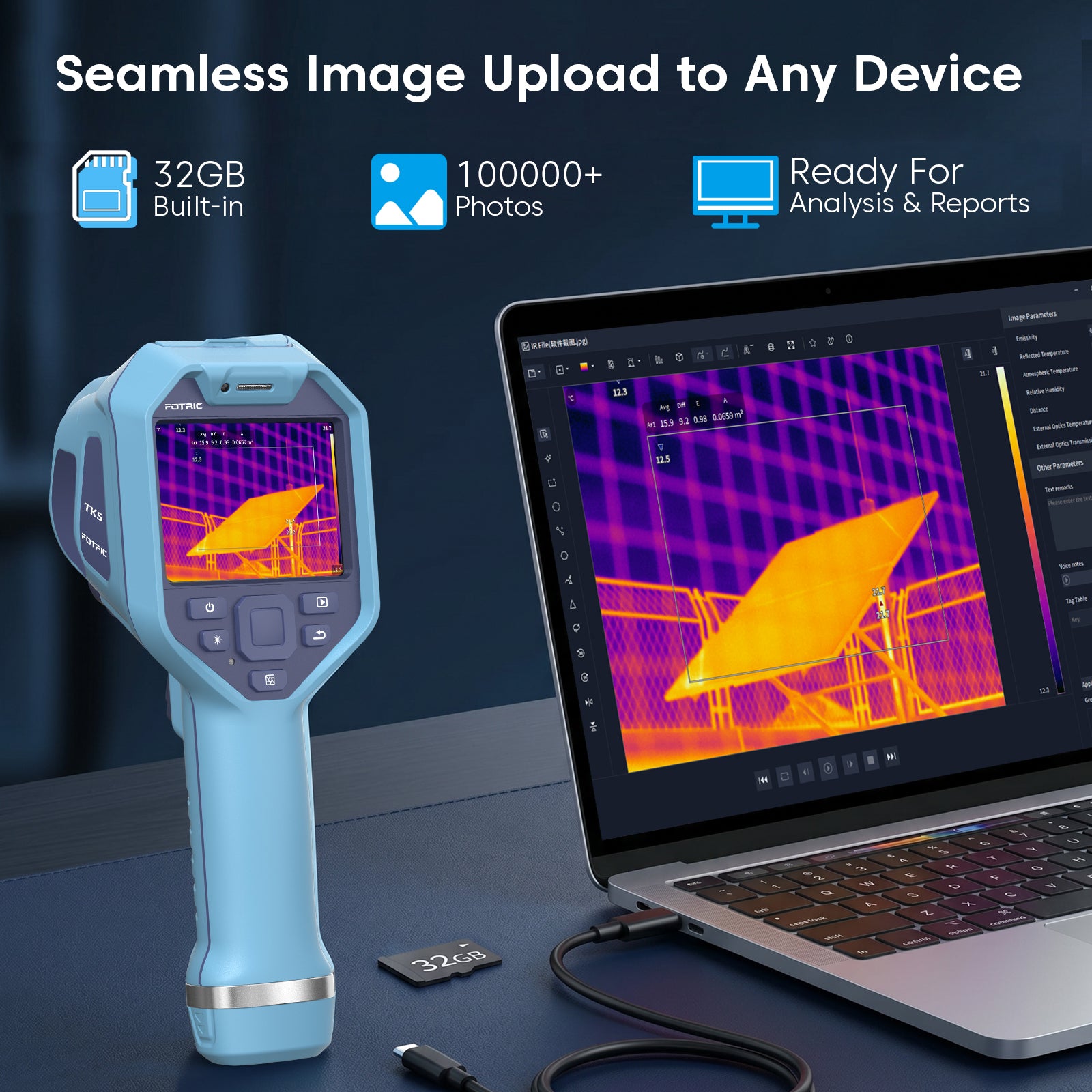

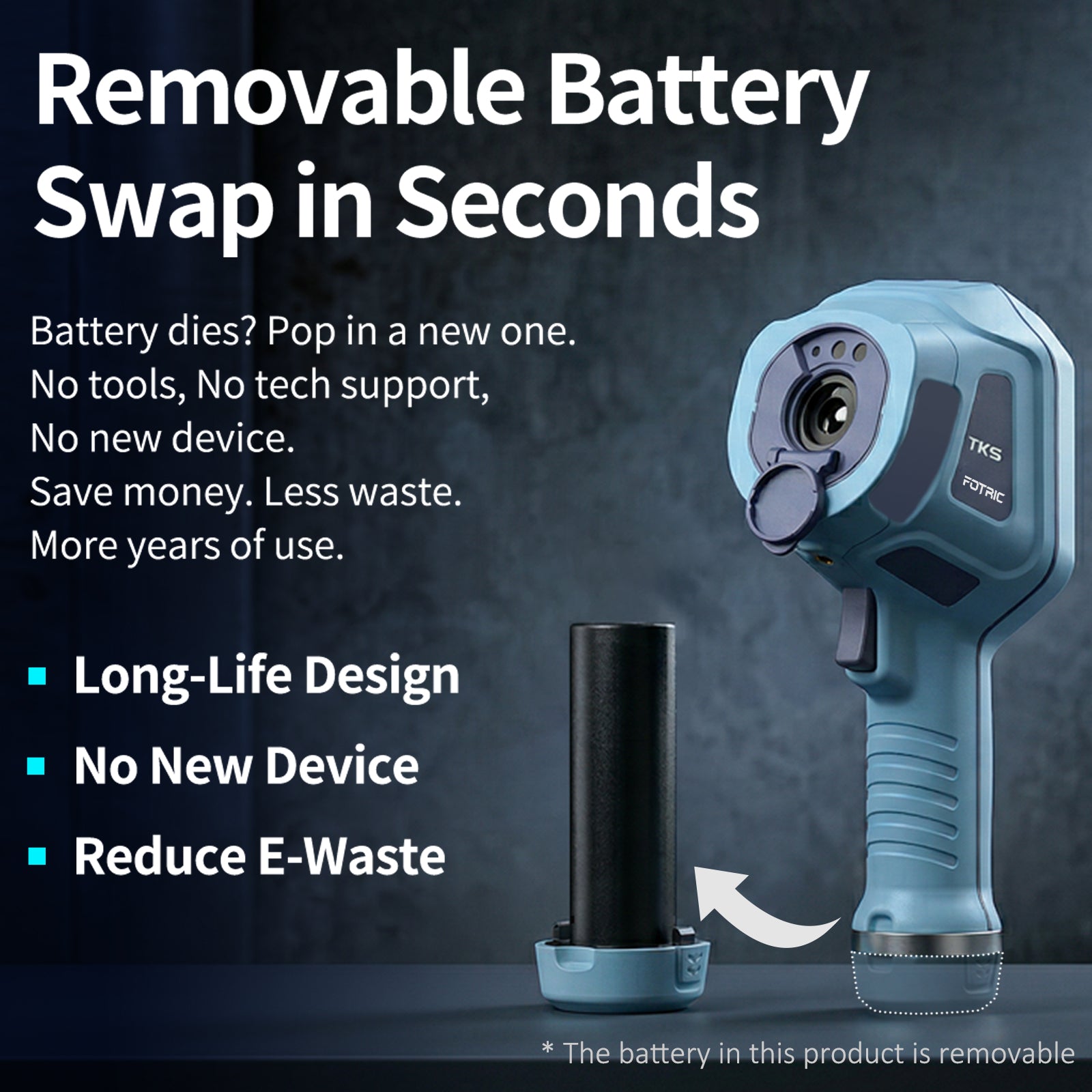

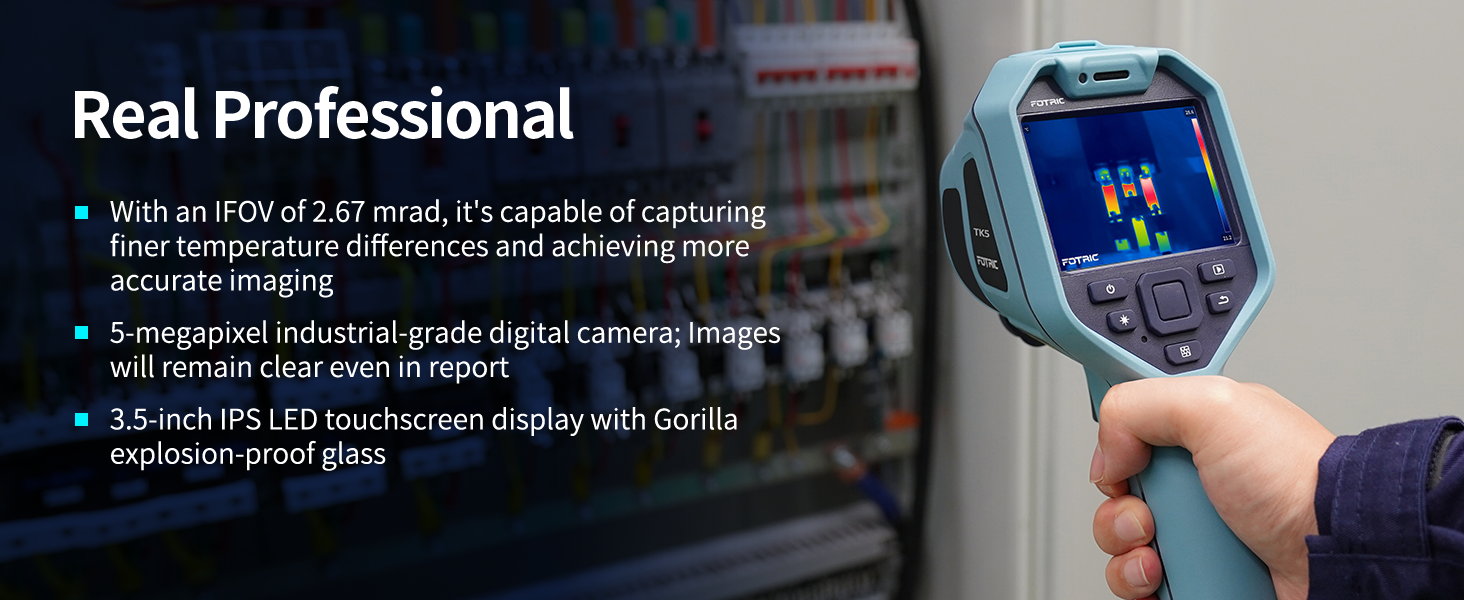

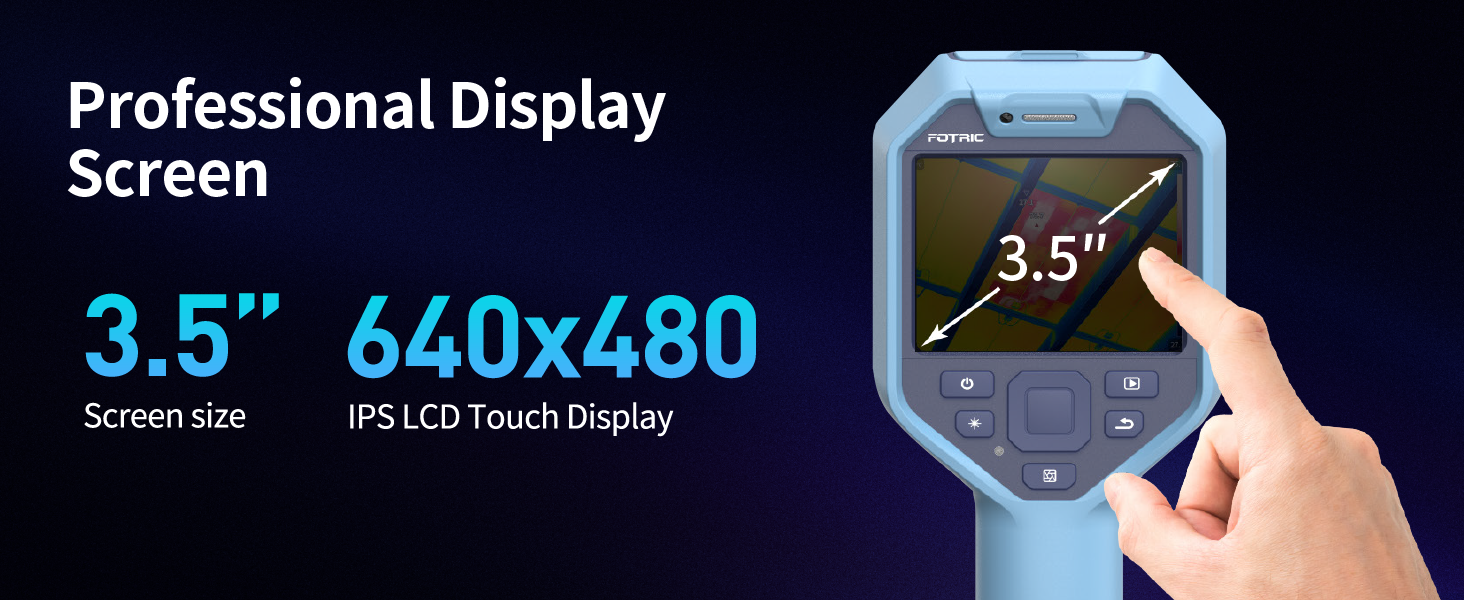

- IP54 dust & water resistant with 2-meter drop protection, perfectly built for job-site use. The 3.5” IPS touchscreen and 5MP visible camera ensure clear viewing even under strong light. Weighing only 1.59 lbs, paired with a swappable 5000mAh battery for 4+ hours runtime, plus a 32GB TF card for convenient image storage.
FOTRIC은 산업 및 검사 애플리케이션을 위한 전문 열 및 음향 이미징 솔루션을 개발합니다.
FOTRIC 열화상 카메라는 엔지니어, 전기 기술자, 유지보수 팀, 연구원 및 산업 검사 전문가에게 적합합니다.
네, FOTRIC 카메라는 분석, 보고서 작성 및 실시간 모니터링을 위한 PC 소프트웨어와 모바일 애플리케이션을 지원합니다.
FOTRIC은 전문적인 기술 지원, 펌웨어 업데이트 및 지속적인 소프트웨어 개선을 제공합니다.
Specifications
- Product Model 30Hz

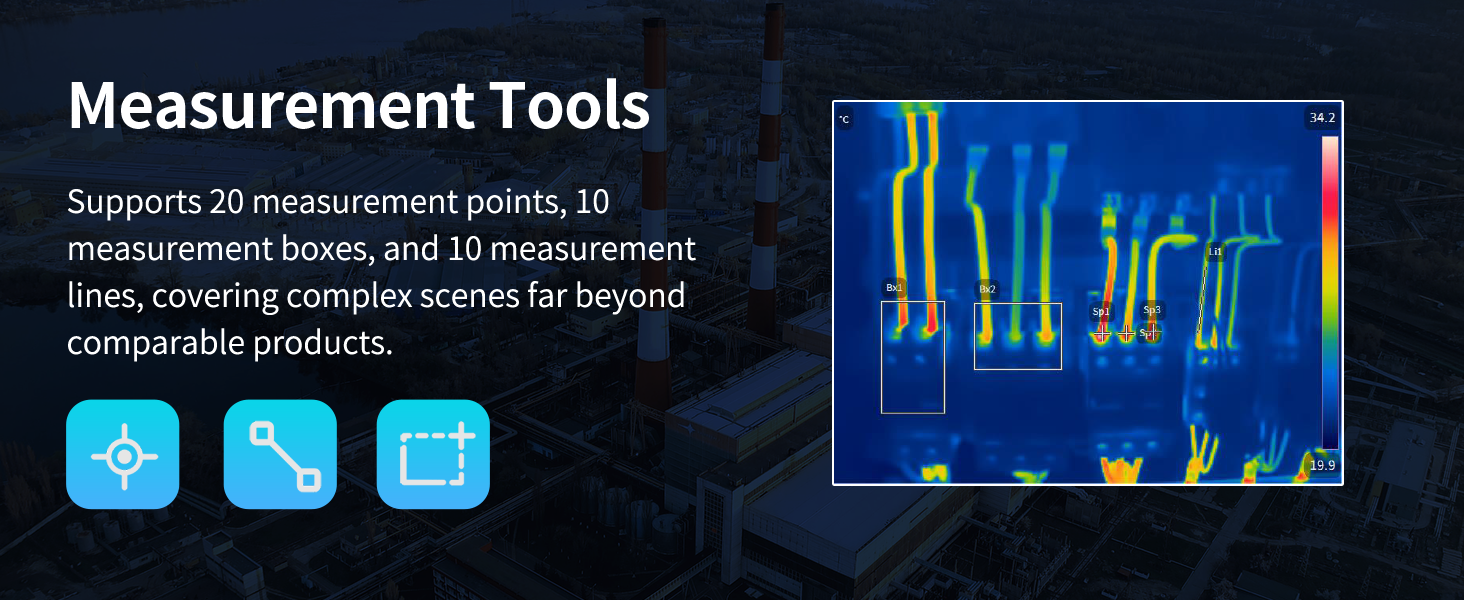

- Measurement Spot 20
- Measurement Line 10
- Measurement Area 10
- Image Mode Thermal image, Digital camera, Picture in Picture & T-DEF® blend
- T-DEF® Support, thermal and visible light image blend, transparency 0% ~100%
- T-TWB® Support histogram thermal color display

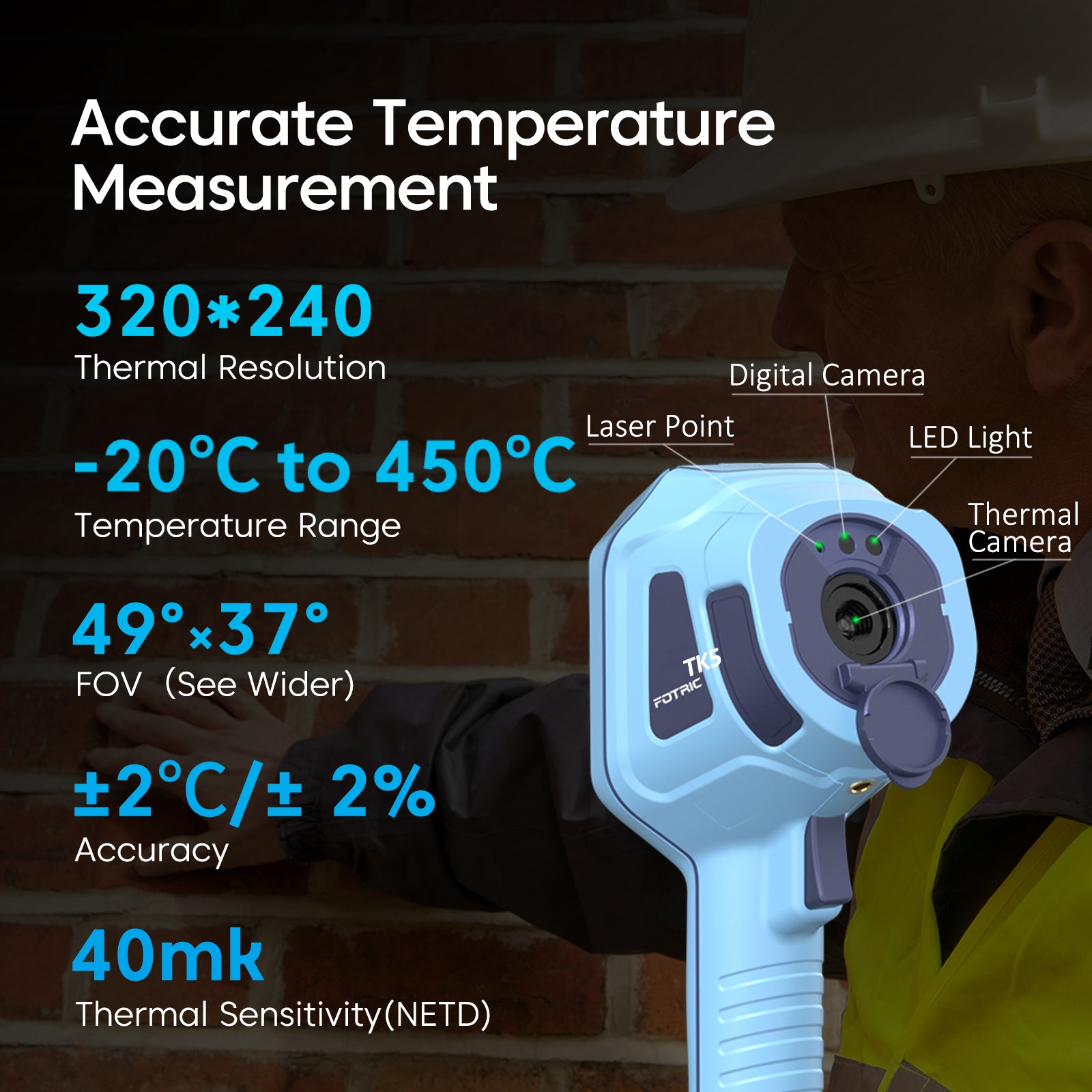

- Infrared Resolution 320×240
- IR Detector Type A ceramic-packaged detector, uncooled FPA infrared detector
- Thermal Sensitivity（NETD) 40mk(0.04° C)@30° C(86 ℉ )
- Detector Pitch 12μm
- Spectral Range 8-14μm
- Field of View (FOV) 49° ×37°
- Spatial Resolution (IFOV) 2.67mrad
- Minimum Imaging Distance 0.4m
- Focus Mode Focus free
- Complete Temperature Range -20℃ ~450℃ (-4~842 ℉ )
- Accuracy ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter
- Digital Camera 5 MP industrial camera

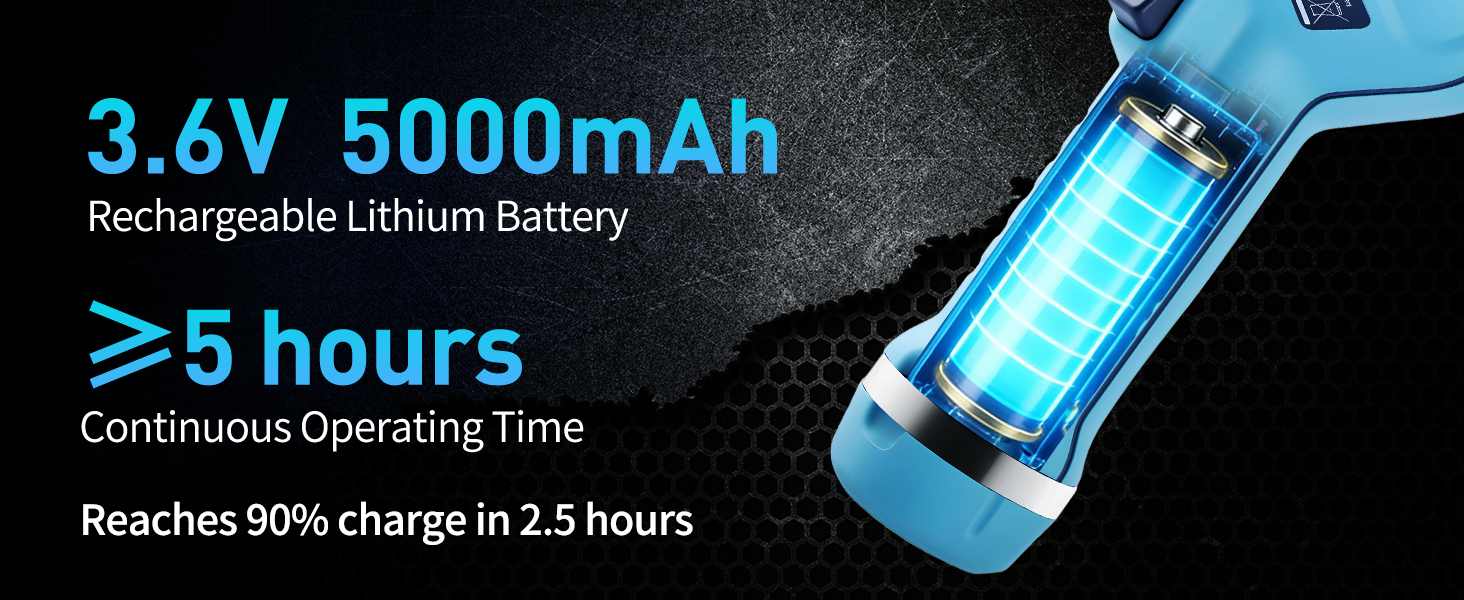

- Battery Type Rechargeable Li-ion, 3.6V, 5000mAh, ≥ 5 hours
