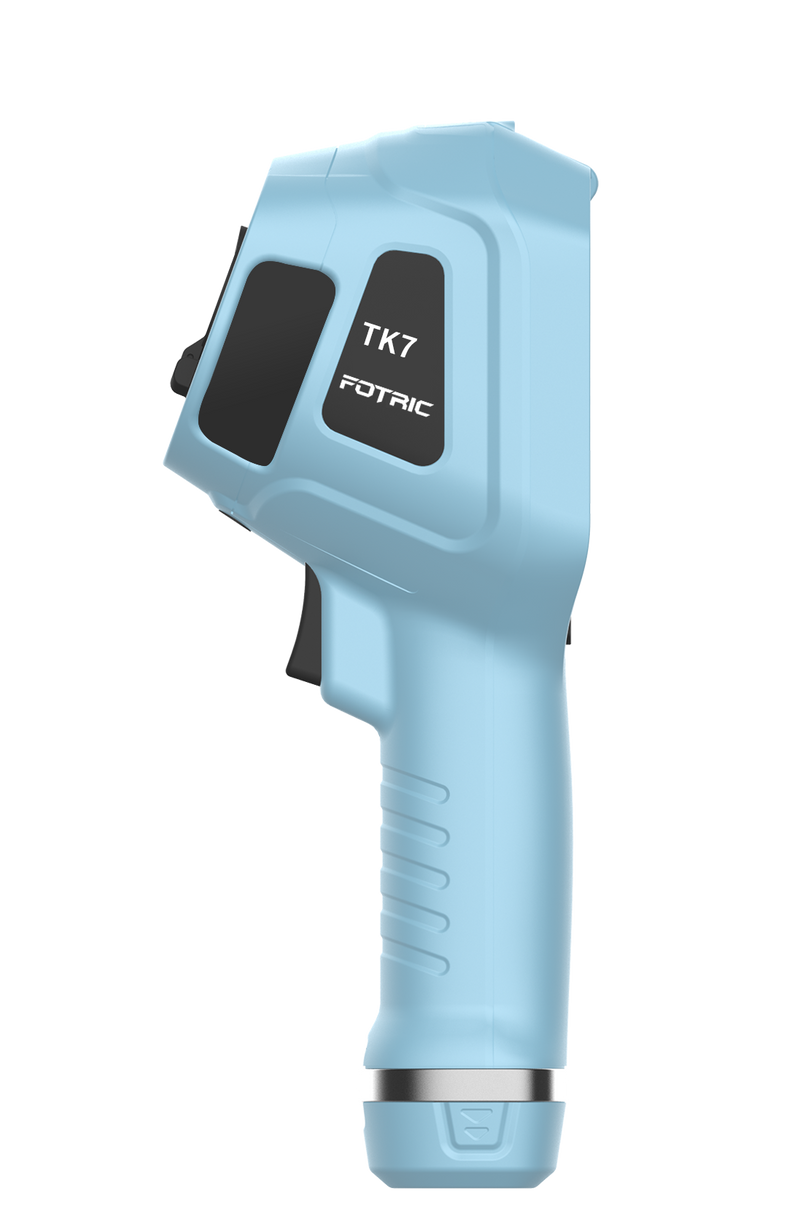

FOTRIC TK7 Thermal Imaging Camera
FOTRIC TK7 열화상 카메라, 384 x 288 IR 해상도, 49°*37° FOV, 초점 없는 열화상 카메라, 건물 및 전기 검사를 위한 8MP 비주얼 카메라, -4°F ~ 1022°F, 3.5인치 터치스크린
- 정가
- $1,499.00
- 할인가
- $1,499.00
- 정가
-
배송은(는) 결제 시 계산됩니다.
"
-

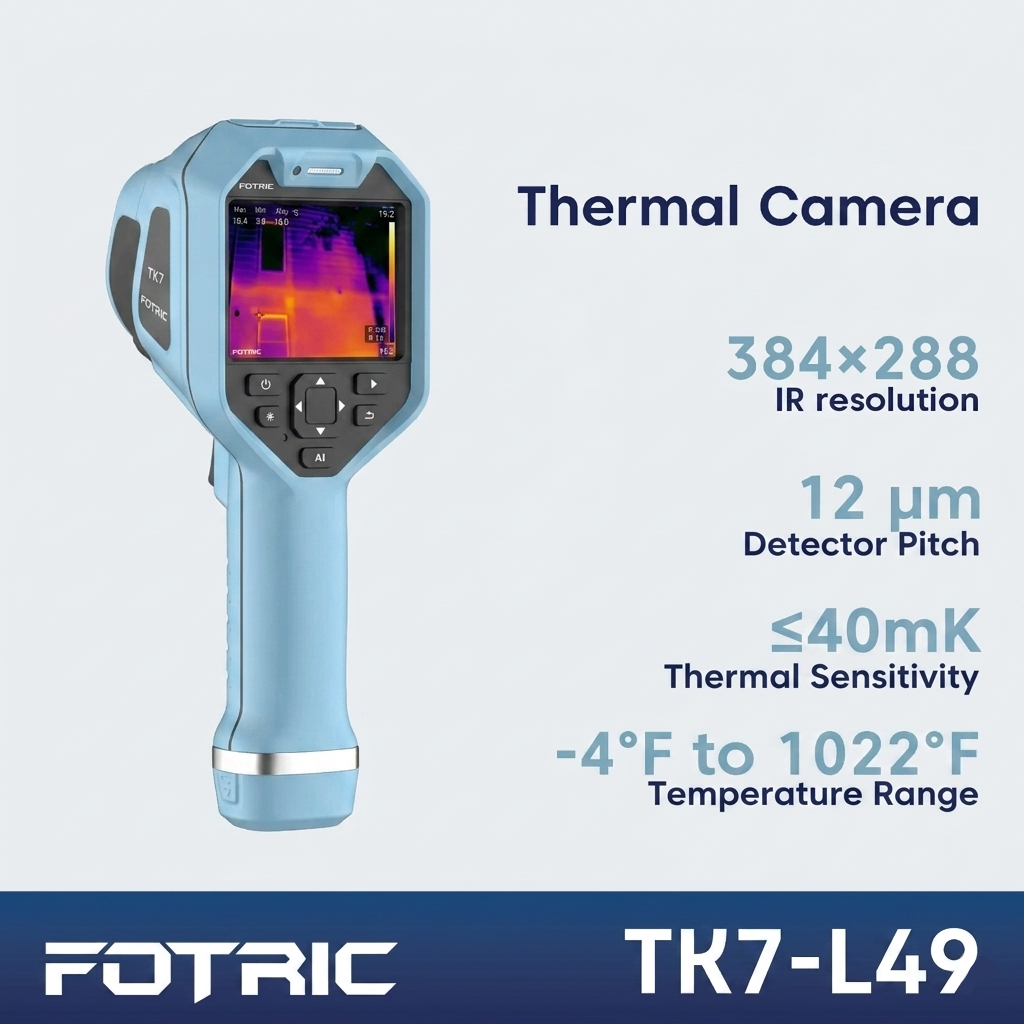

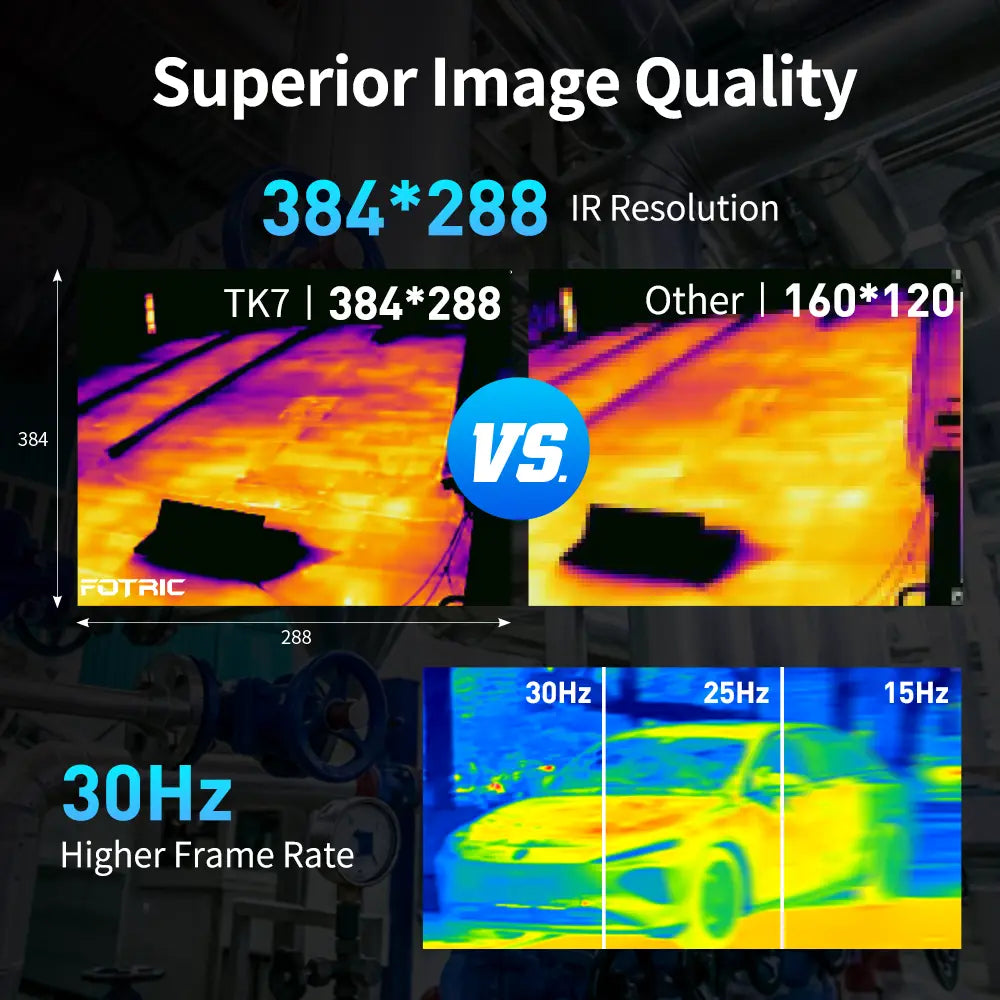

Clear Thermal Imaging with True 384 × 288 Resolution

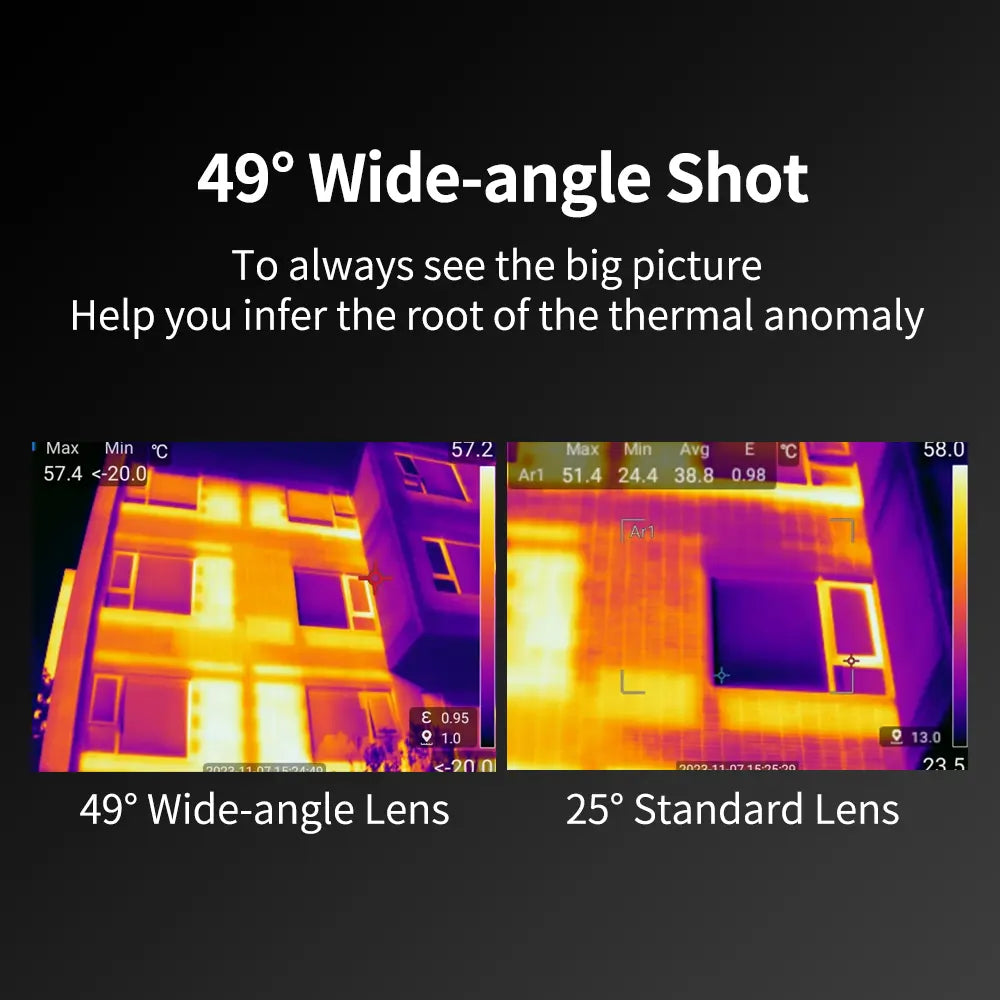

Equipped with a true 384 × 288 infrared detector and a wide 49° × 37° field of view, TK7 delivers clear thermal images for fast scanning and general inspection tasks. The focus-free design allows users to capture thermal images instantly without manual adjustment. -
Ideal for Everyday Inspection Applications

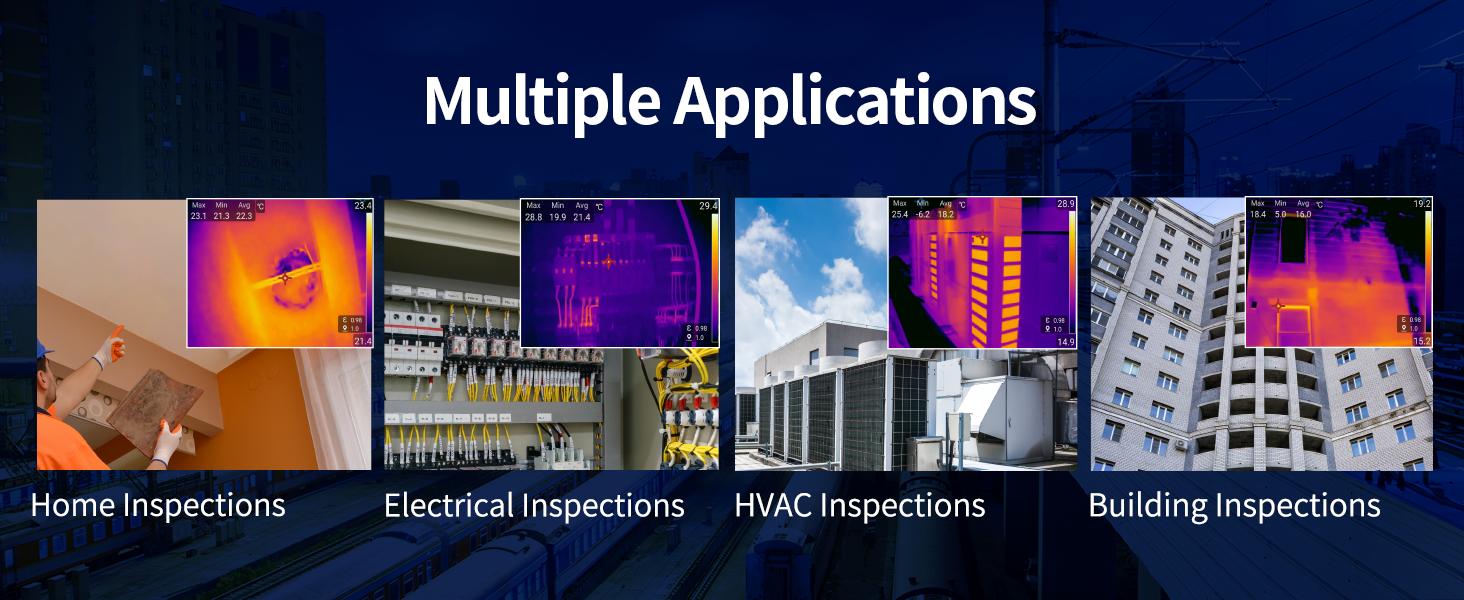

Designed for routine electrical, mechanical, HVAC, and building inspections, TK7 helps quickly identify overheating components, insulation issues, and abnormal temperature patterns—enabling efficient, non-contact fault detection. -

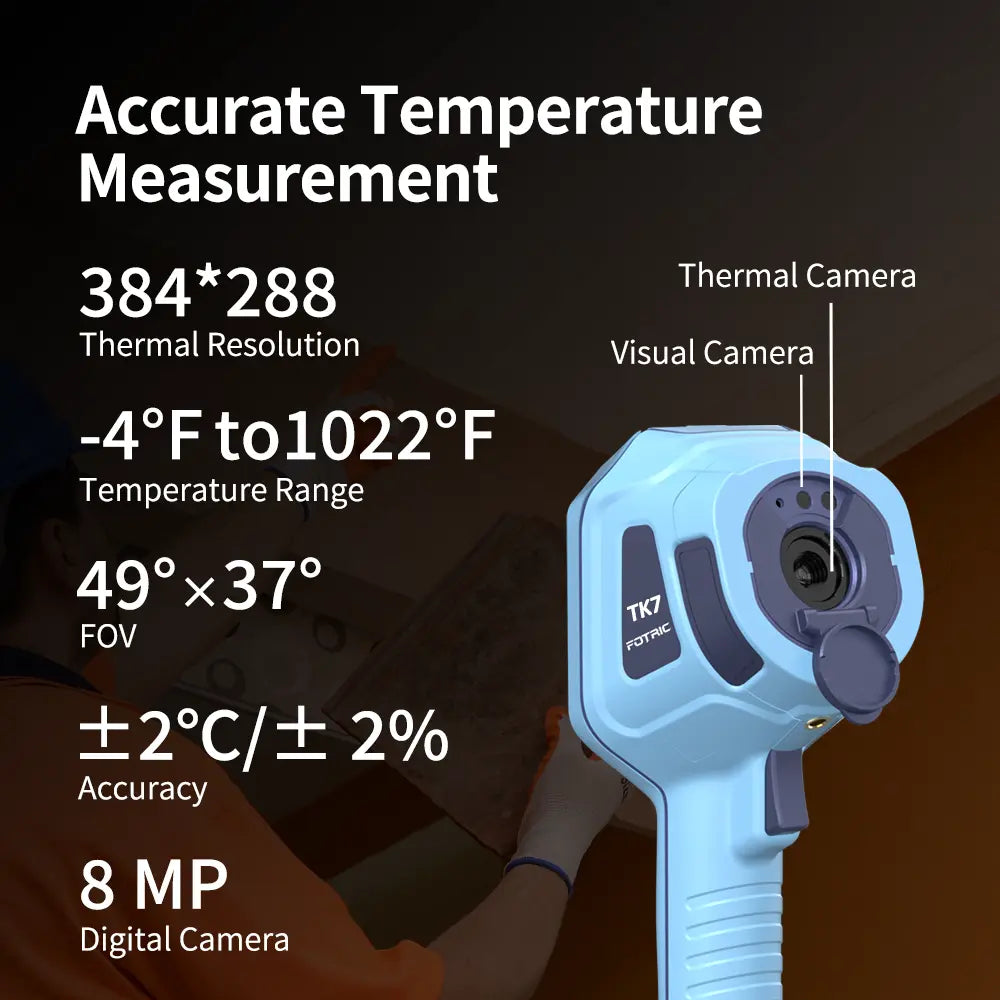

Wide Temperature Measurement Range
Covers a broad temperature range from −4 °F to 1022 °F (−20 °C to 550 °C), making it suitable for a variety of industrial and maintenance scenarios, from low-temperature environments to high-heat equipment checks. -
Thermal & Visual Image Fusion
Features an 8-megapixel visual camera that works alongside thermal imaging, providing clear visual references to improve inspection accuracy and reporting clarity. -

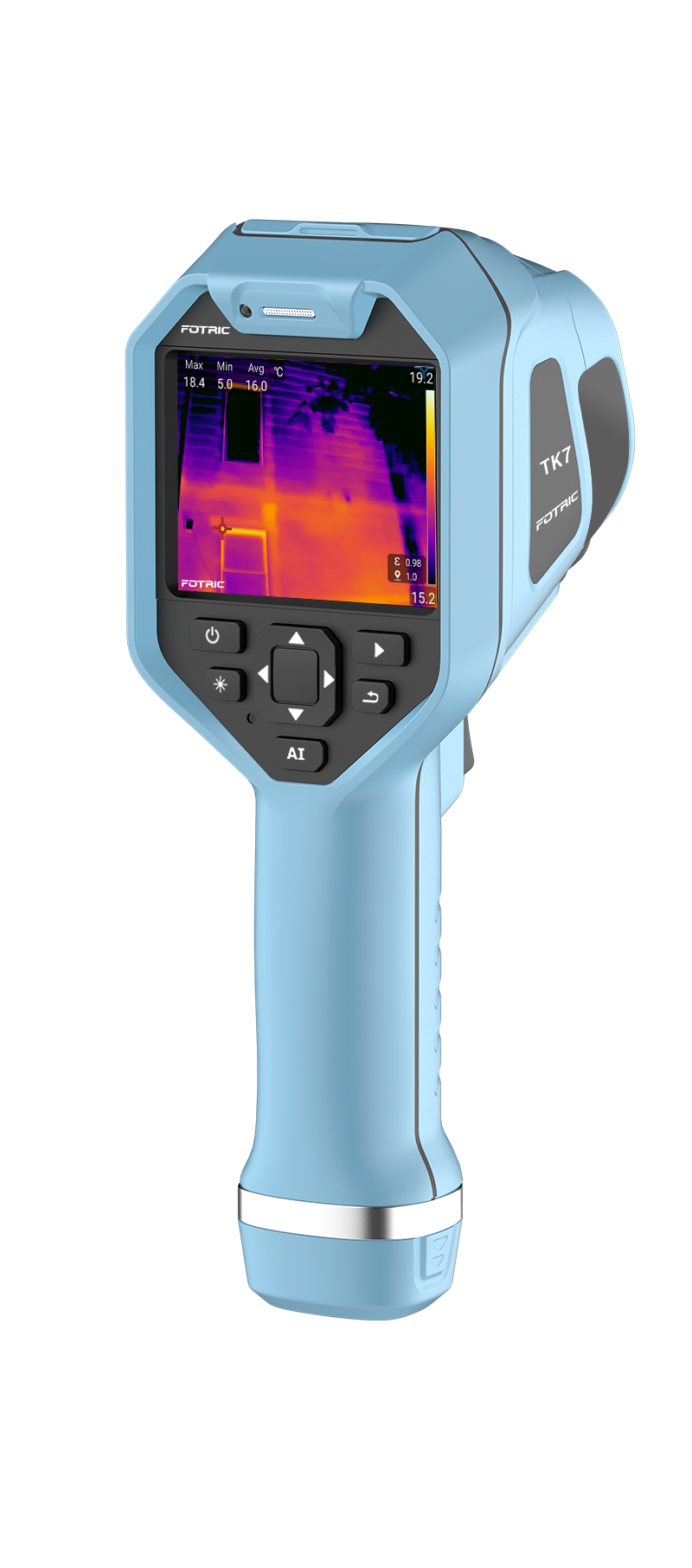

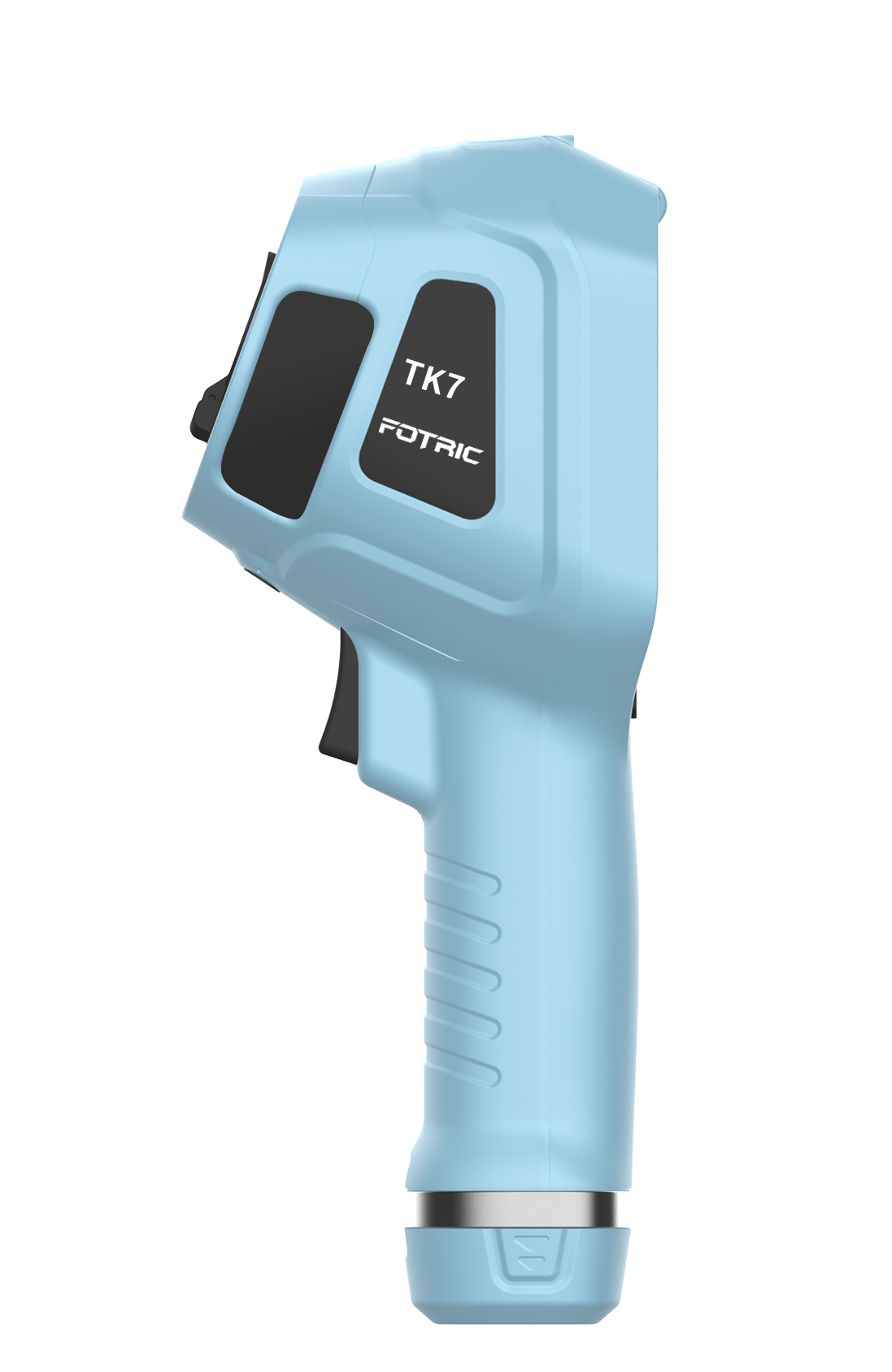

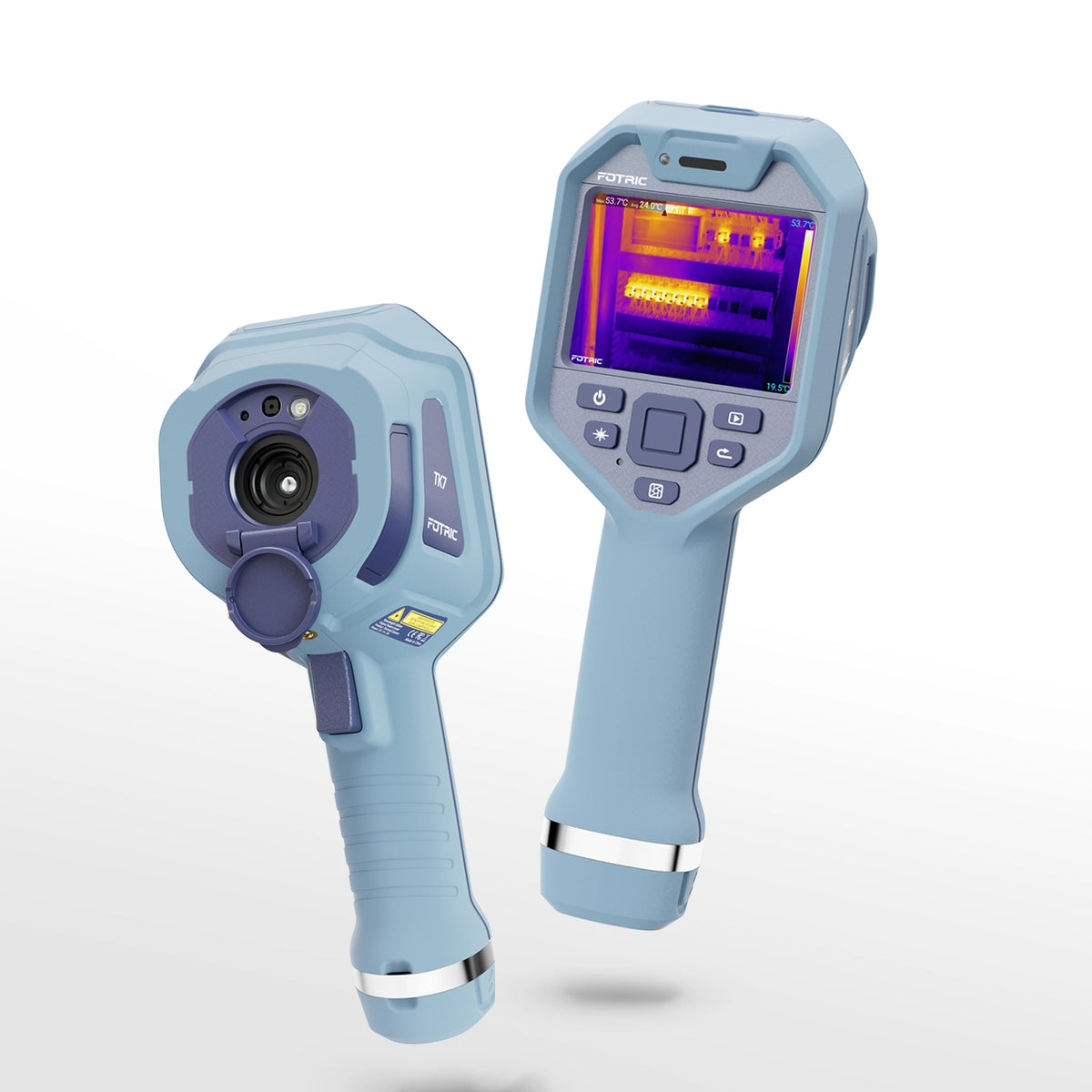

Touchscreen Operation in a Compact Design
The 3.5" touchscreen offers intuitive operation and clear visualization of thermal data, while the lightweight, handheld form factor makes TK7 easy to carry and use for daily inspections.
FOTRIC은 산업 및 검사 애플리케이션을 위한 전문 열 및 음향 이미징 솔루션을 개발합니다.
FOTRIC 열화상 카메라는 엔지니어, 전기 기술자, 유지보수 팀, 연구원 및 산업 검사 전문가에게 적합합니다.
네, FOTRIC 카메라는 분석, 보고서 작성 및 실시간 모니터링을 위한 PC 소프트웨어와 모바일 애플리케이션을 지원합니다.
FOTRIC은 전문적인 기술 지원, 펌웨어 업데이트 및 지속적인 소프트웨어 개선을 제공합니다.
Specifications
- IR Resolution(SR) 384*288
- Thermal Sensitivity（NETD) 40mk(0.04°C)@30°C
- Lens /Field of View 49°x 37°
- Focus Mode Focus free
- Frame Rate 40Hz
- Build-in digital camera 8 MP industrial camera

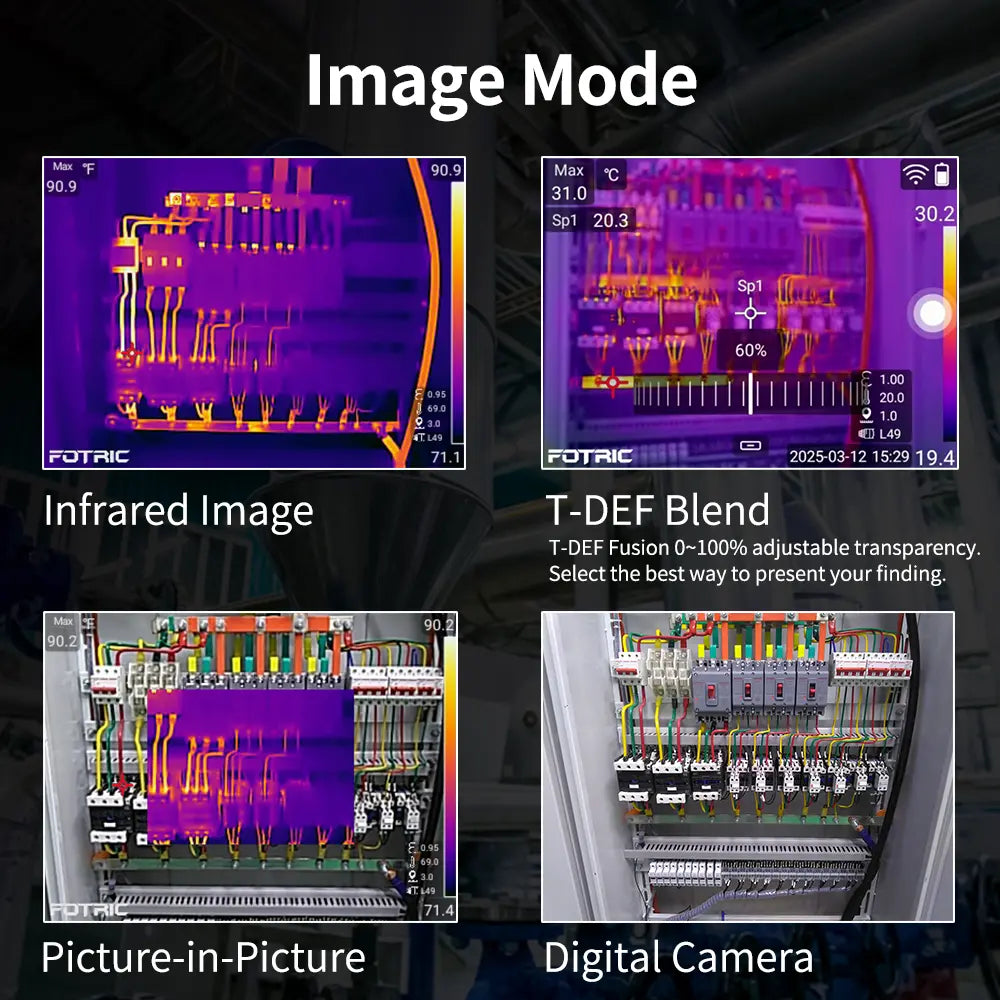

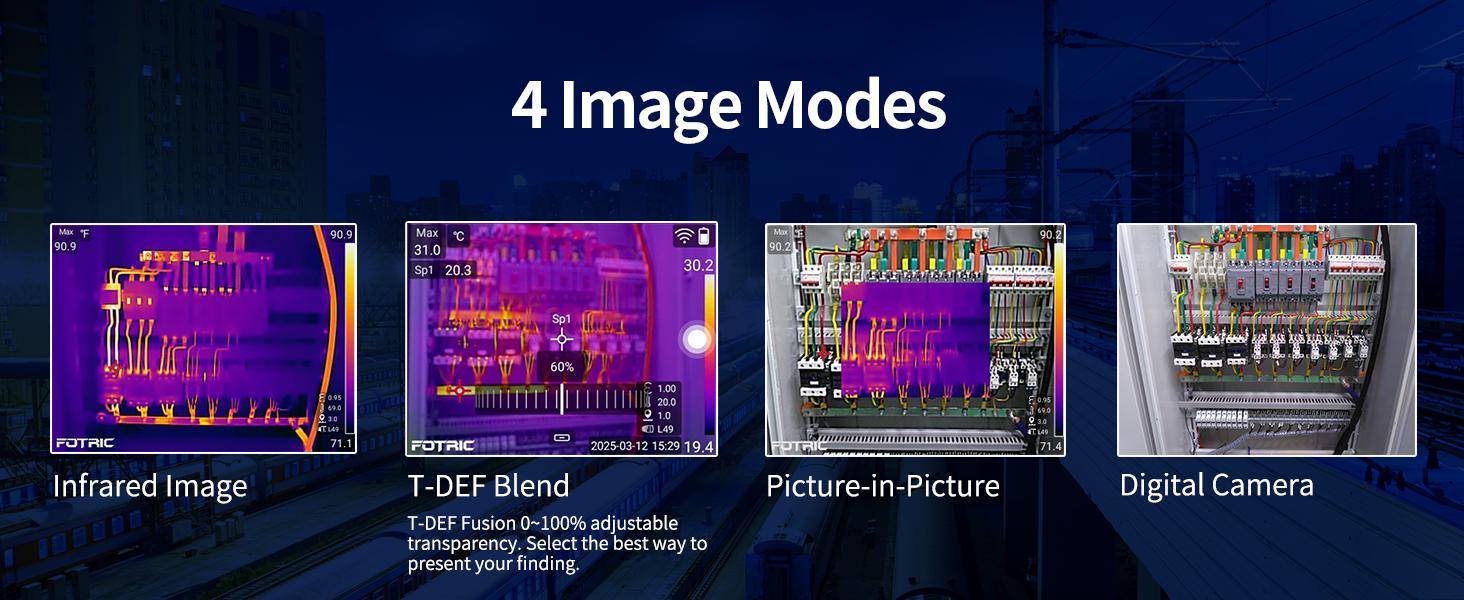

- Image Modes Thermal Image Mode, Visible Light Mode, Picture in Picture Mode, T-DEF (Image Fusion) Mode
- Temperature Range -20 °C to 550°C
- Measurement Accuracy ±2 °C or 2% , whichever is greater (at 25 °C ambient temperature）
- Measurement Tools Spot：6 Line：3 Rectangle/Circle：4
- Palettes 8 Palettes，8 Inverted Palettes
- Storage Card TF card, 32GB, expandable to 128GB
- Voice & Text Annotation Support (120 seconds for voice annotation)
- Battery Rechargeable Li-ion, 3.6V, 5000mAh,≥4 hours
- Operation temperature -20°C to 50°C
- Storage temperature -40°C to 70°C， without battery
- Drop 2m(GB/T 2423.8/IEC 60068-2-32)
- Enclosure rating IP54
- Weight ( include battery) 800g
