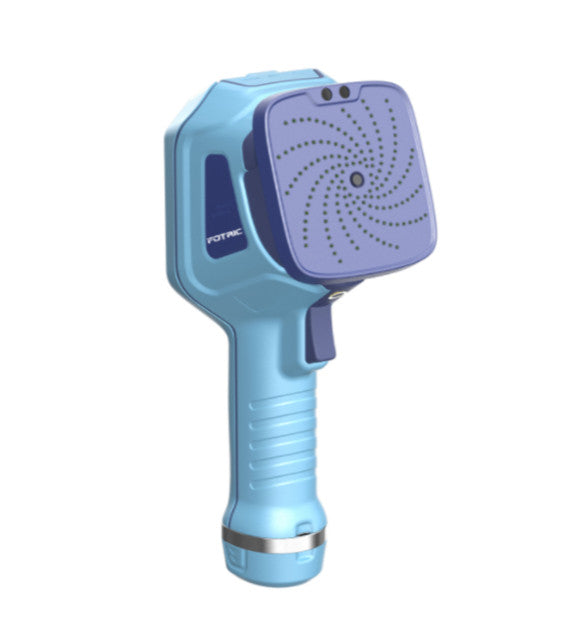

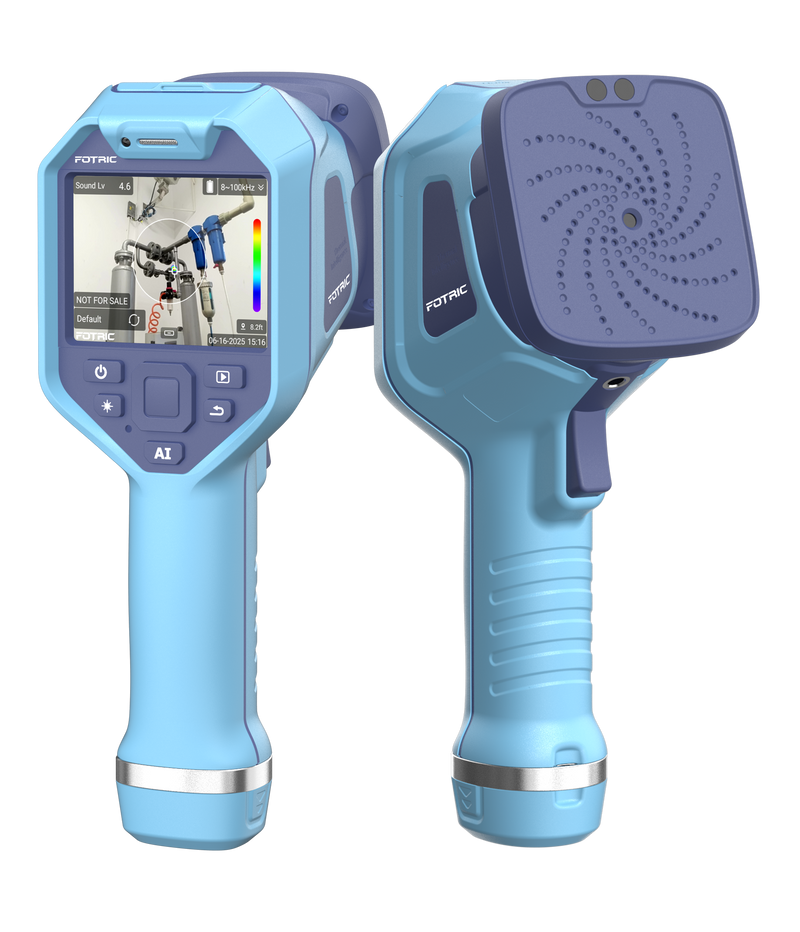

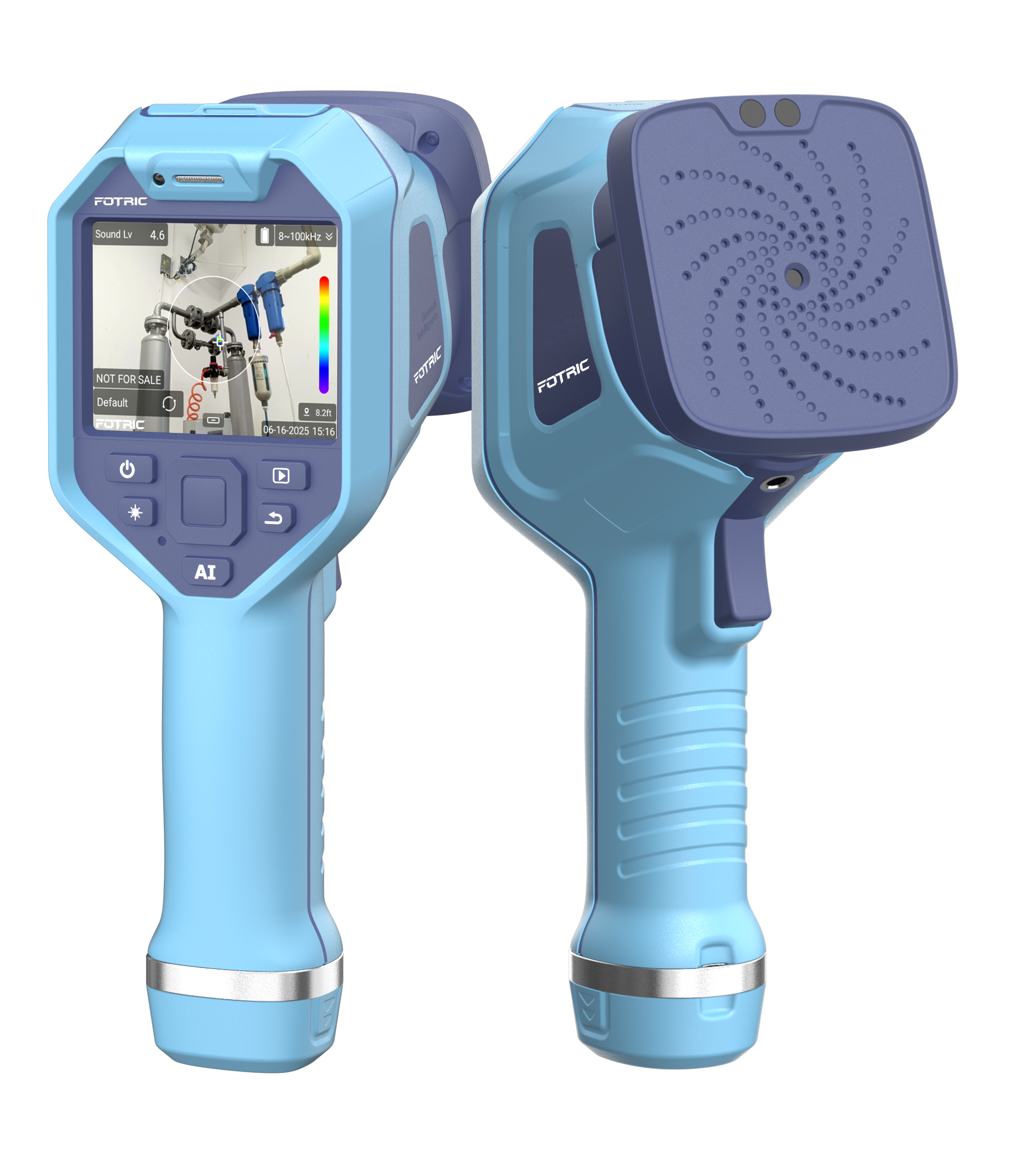

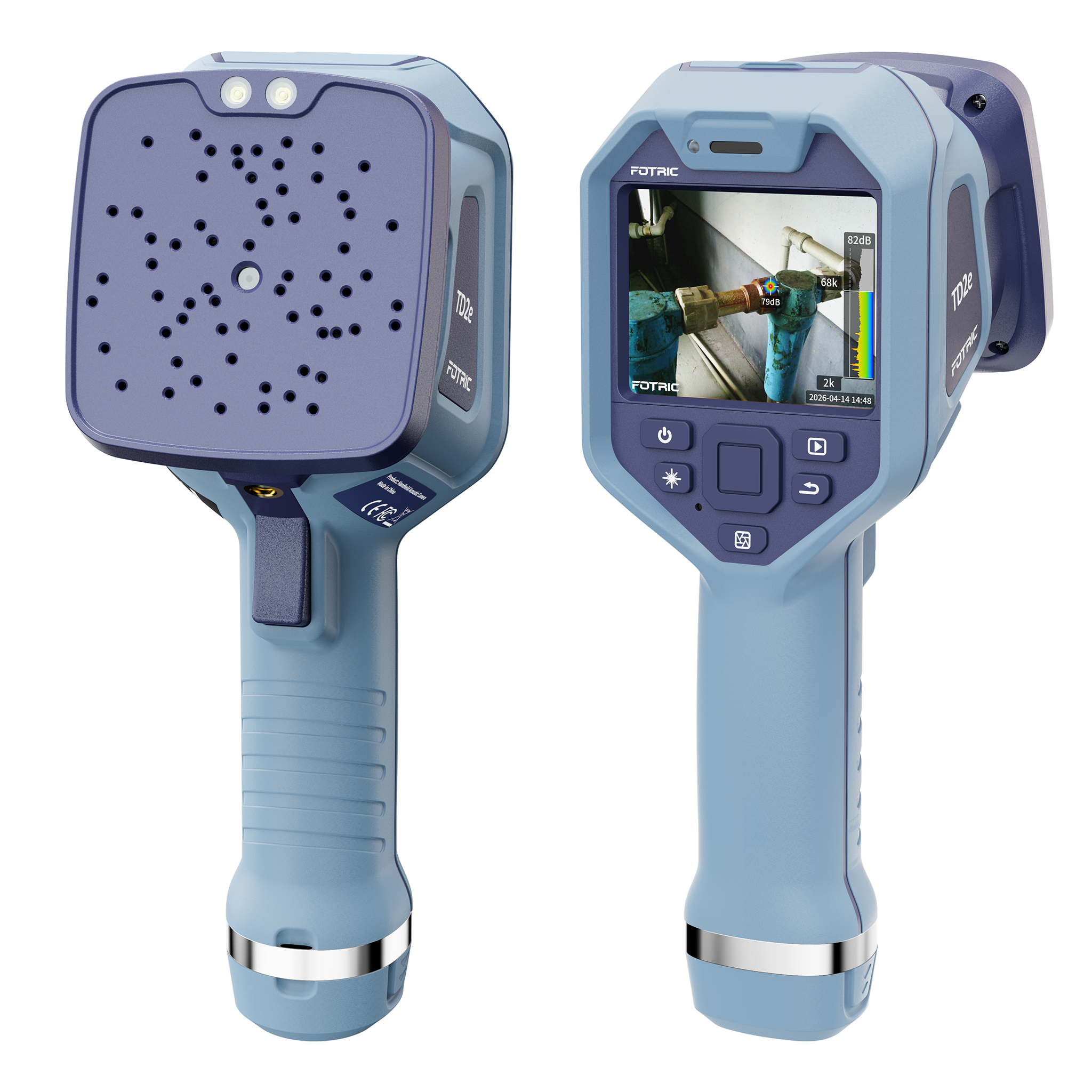

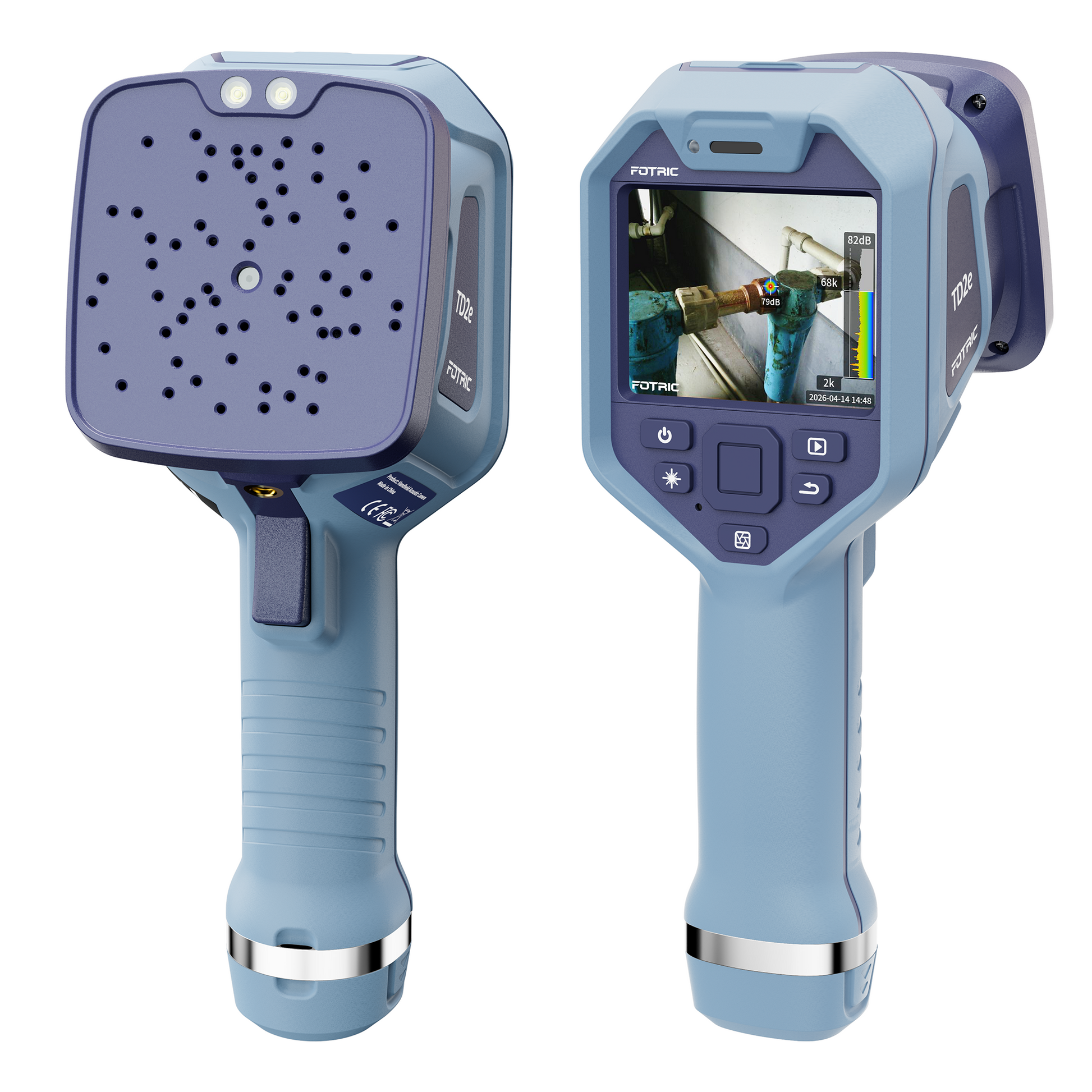

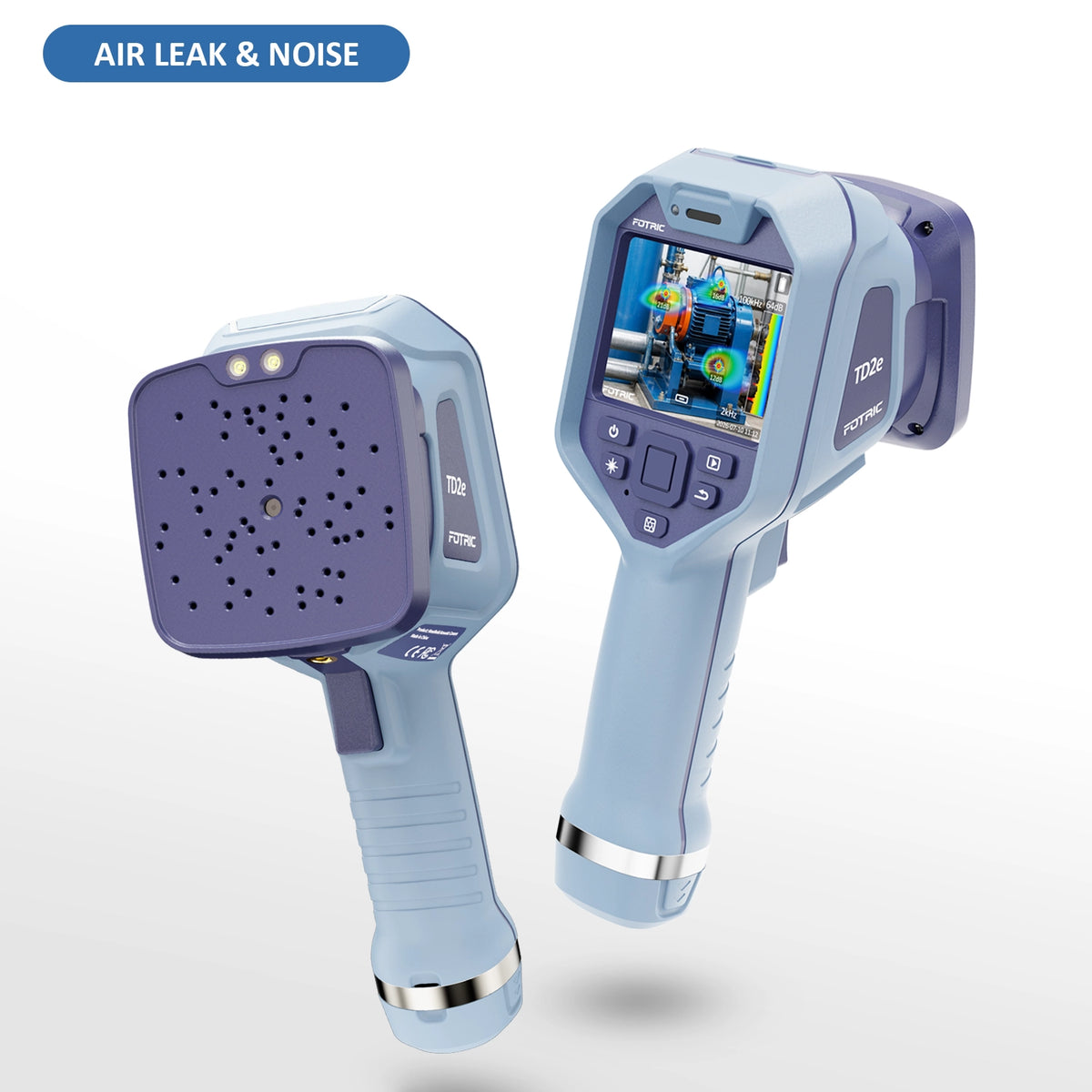

FOTRIC TD2e Acoustic Imager Camera
FOTRIC TD2e 음향 이미징 카메라, 64개의 MEMS 마이크, 0.3–60m 작업 거리, 2–100kHz 주파수 범위, 58°×45° FOV, 산업용 누출 감지 및 부분 방전 검사
- 정가
- $1,234.00
- 할인가
- $1,234.00
- 정가
-
배송은(는) 결제 시 계산됩니다.
"
-
Advanced Acoustic Imaging Technology

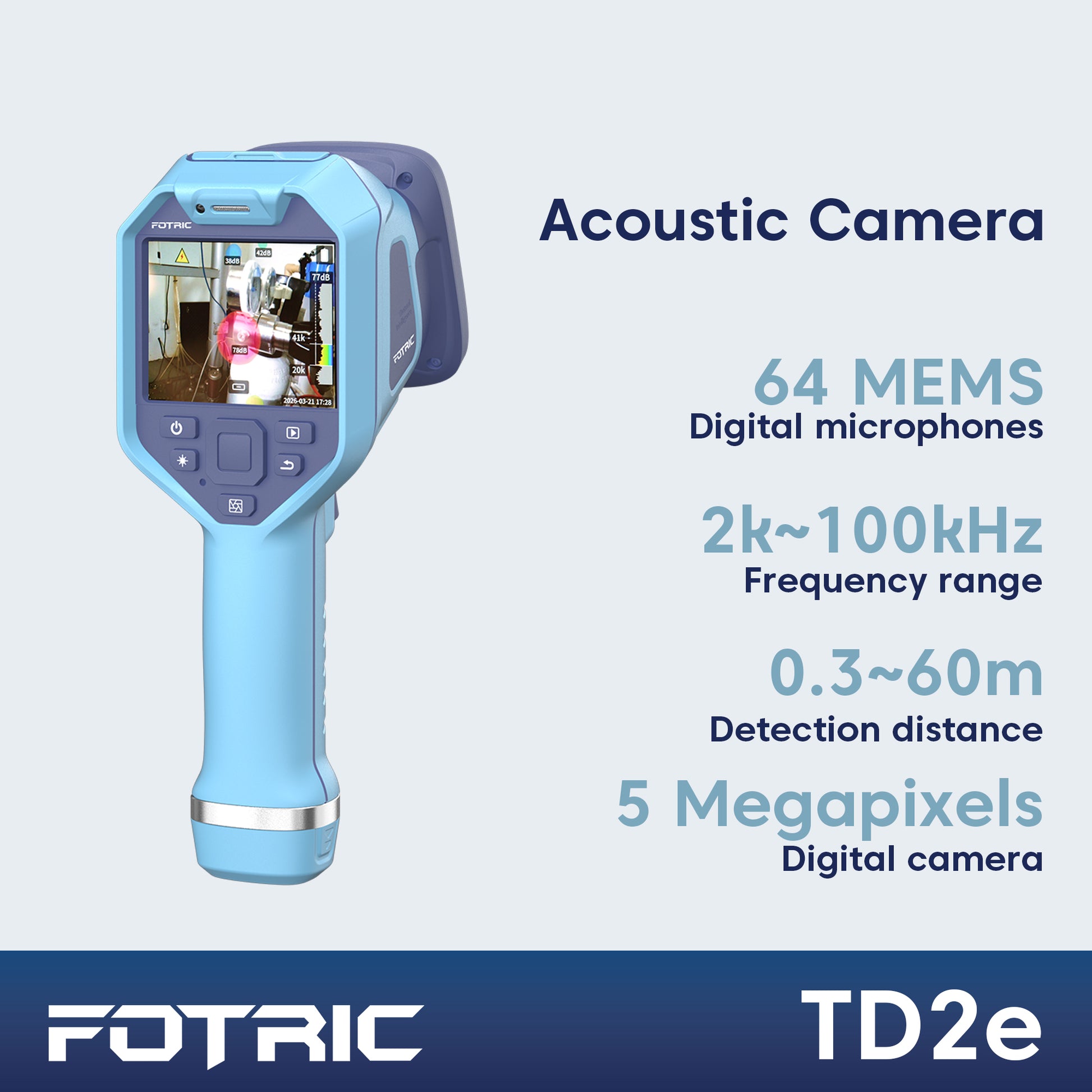

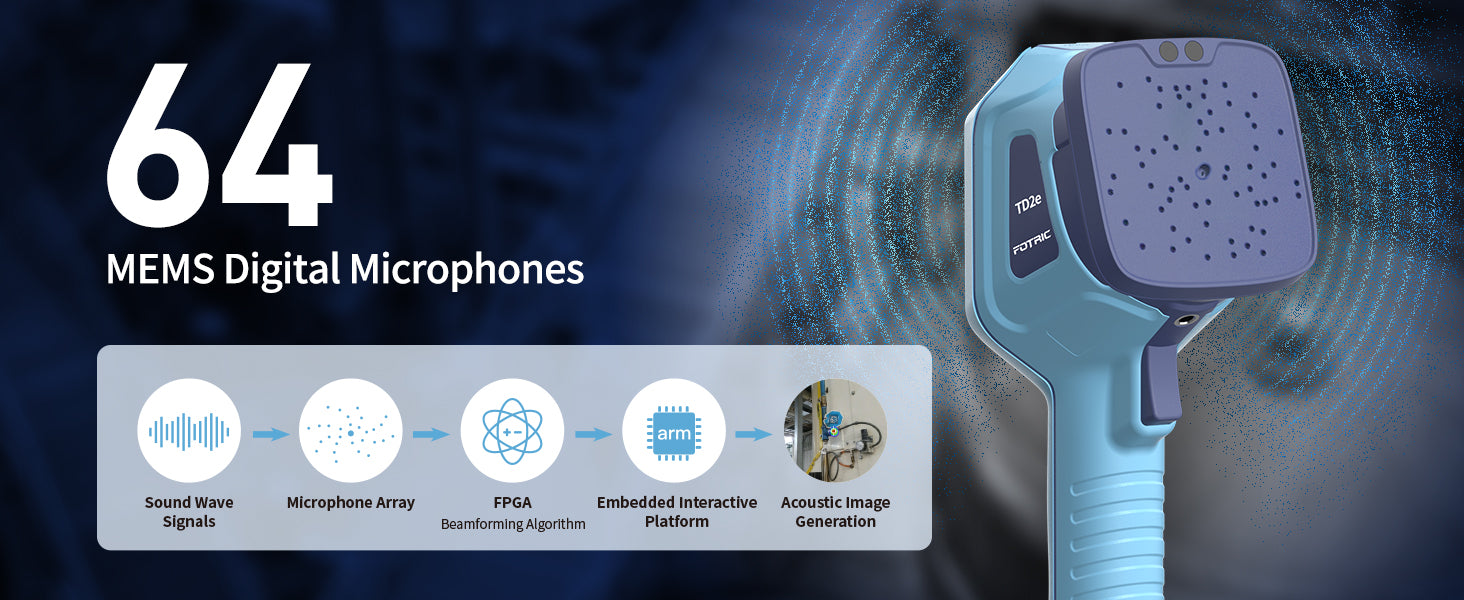

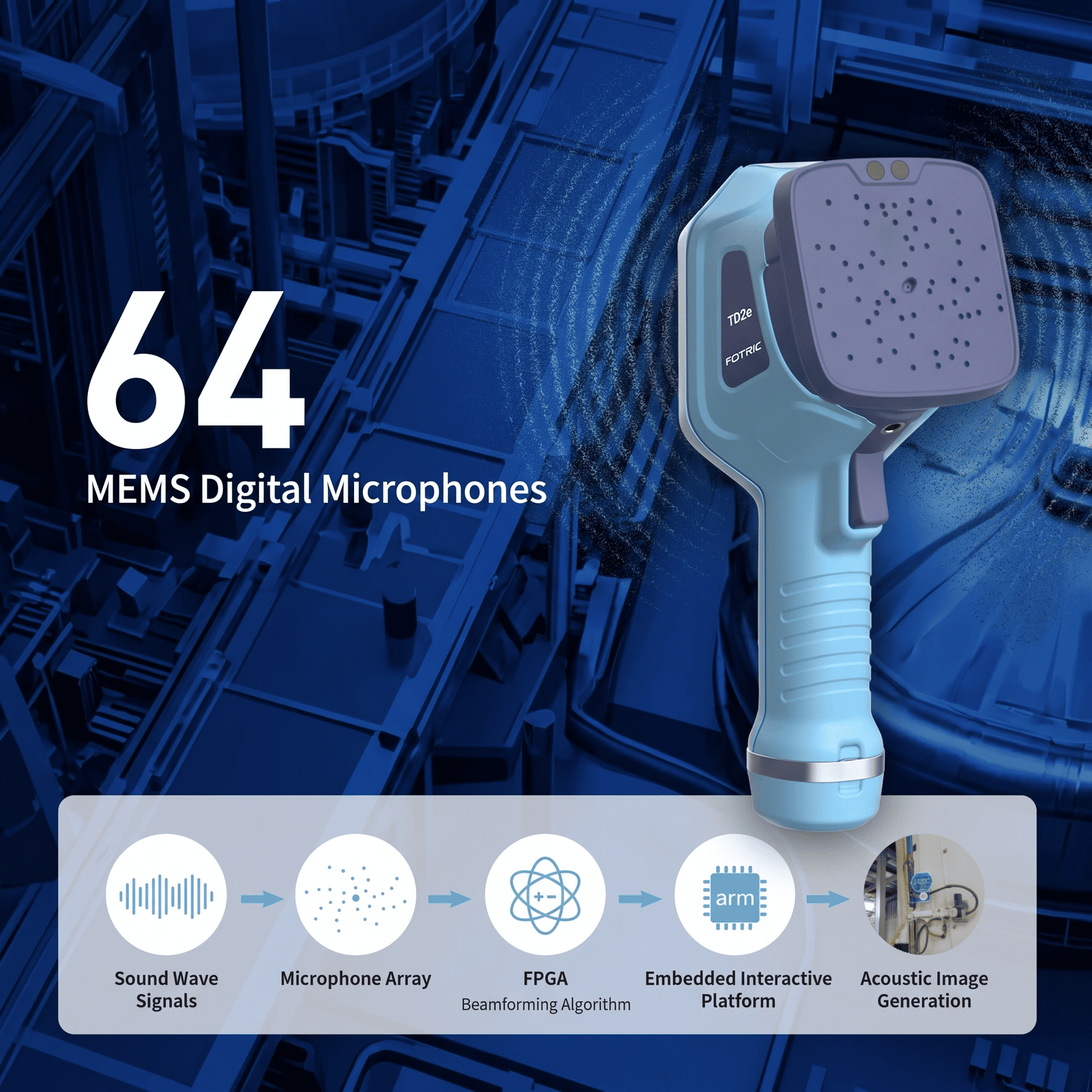

Equipped with 64 high-sensitivity MEMS digital microphones and a 58° × 45° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2kHz to 100kHz, with a working distance of 0.3~60m, ideal for detecting both audible and ultrasonic leaks, partial discharge and mechanical anomalies. Also features a 5-megapixel industrial digital camera for detailed visual reference.
-
Quickly Locate Various Industrial Leaks & Vibration Problems

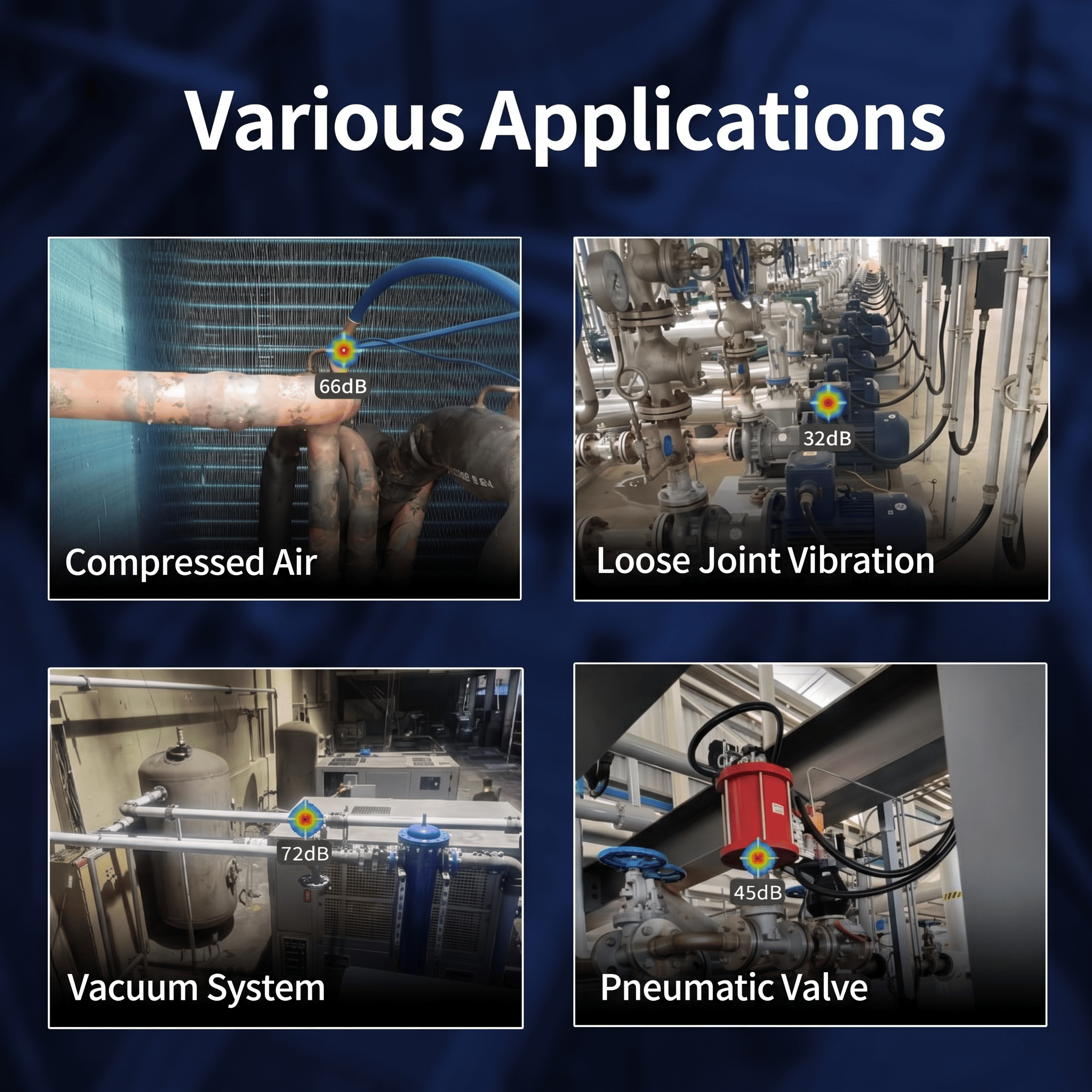

FOTRIC TD2e acoustic imaging camera enables compressed air leak detection, vacuum leak identification, pneumatic valve leakage check, loose joint vibration detection and seal integrity verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.
-
Acoustic Image Focus & Sound Pressure Level Measurement

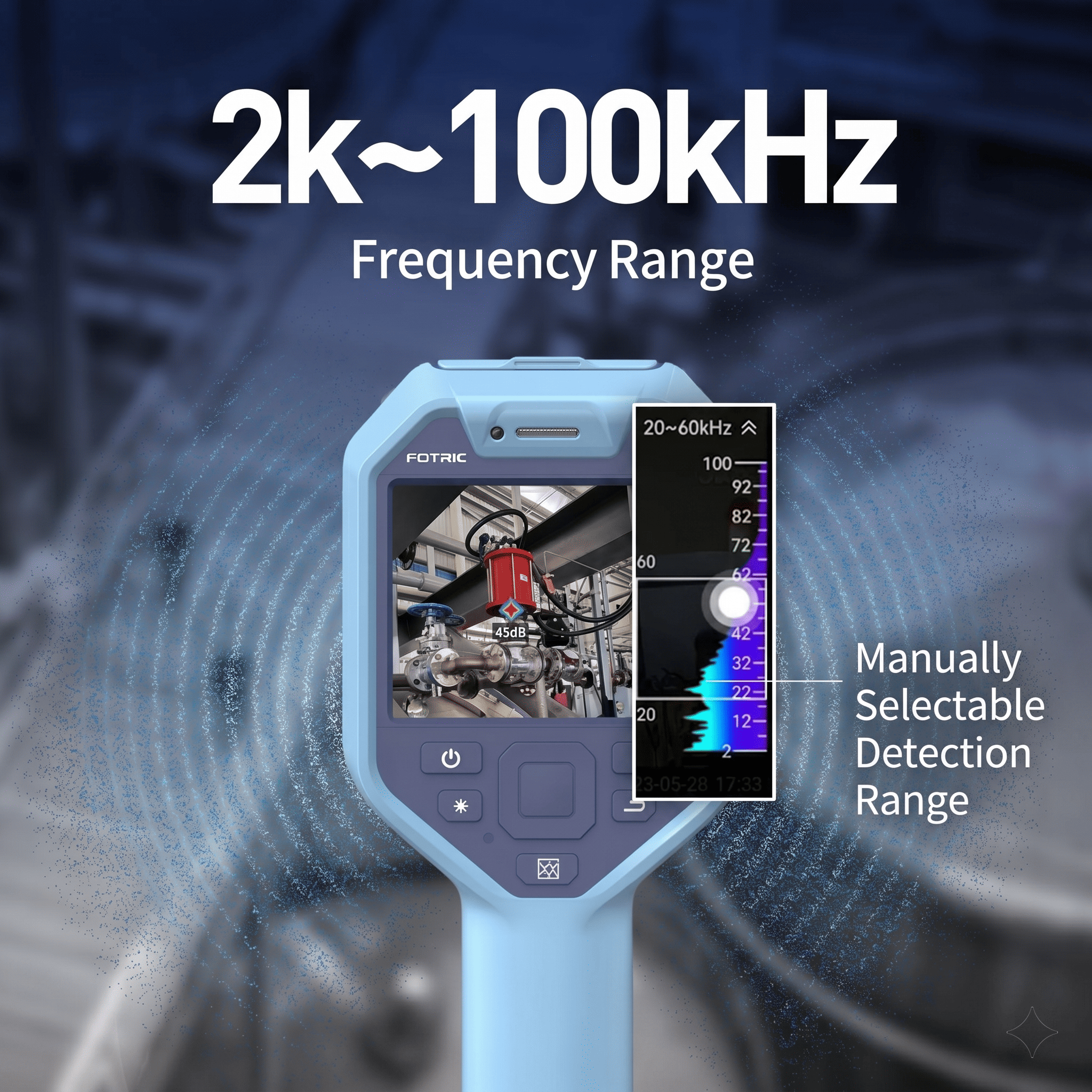

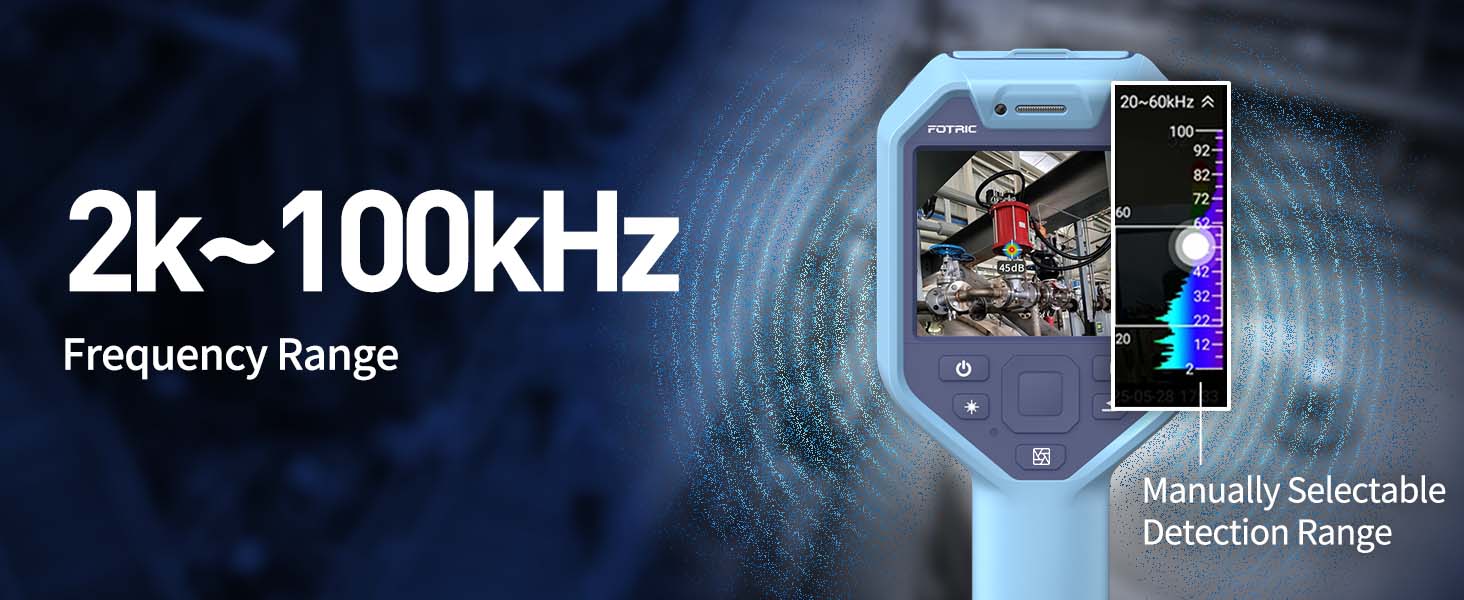

Combines adaptive dynamic noise reduction and micro-detection algorithms to achieve focused localization of sound sources. Supports manual frequency adjustment and peak frequency display, with real-time dB-level data output paired with acoustic images, well-suited for locating and diagnosing a wide range of industrial sound sources.
-
High-Resolution Touch Screen & Multiple Display Modes

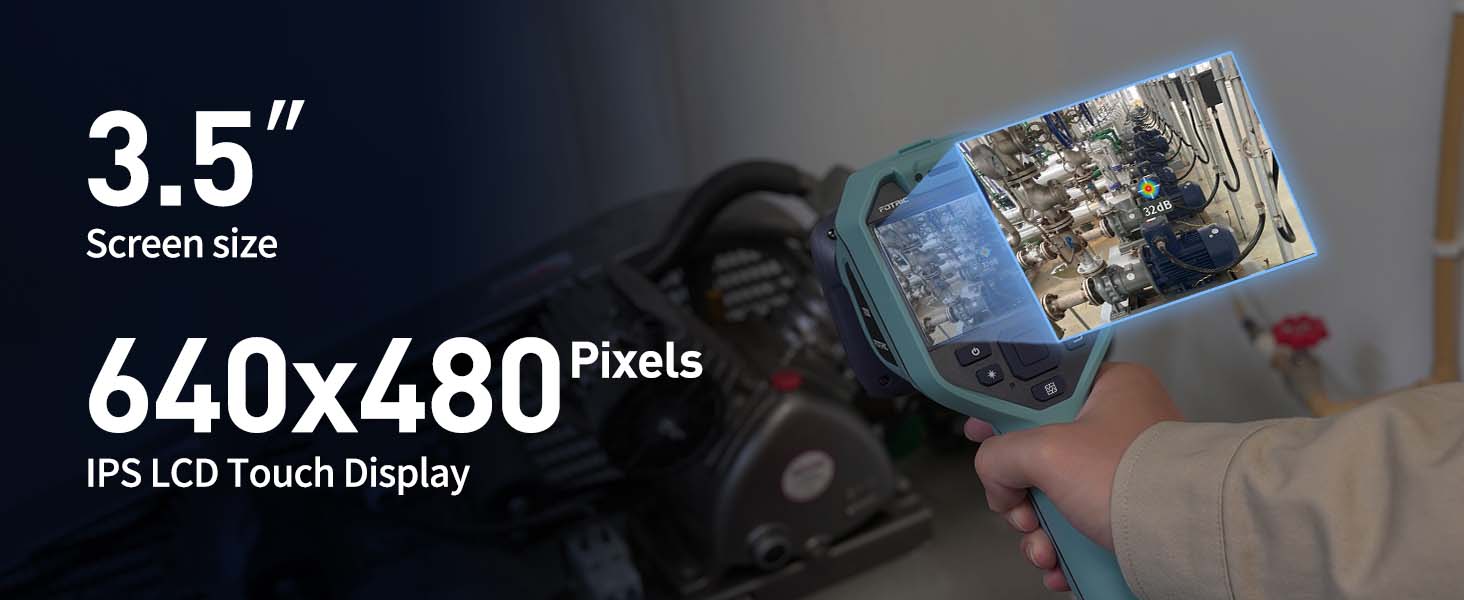

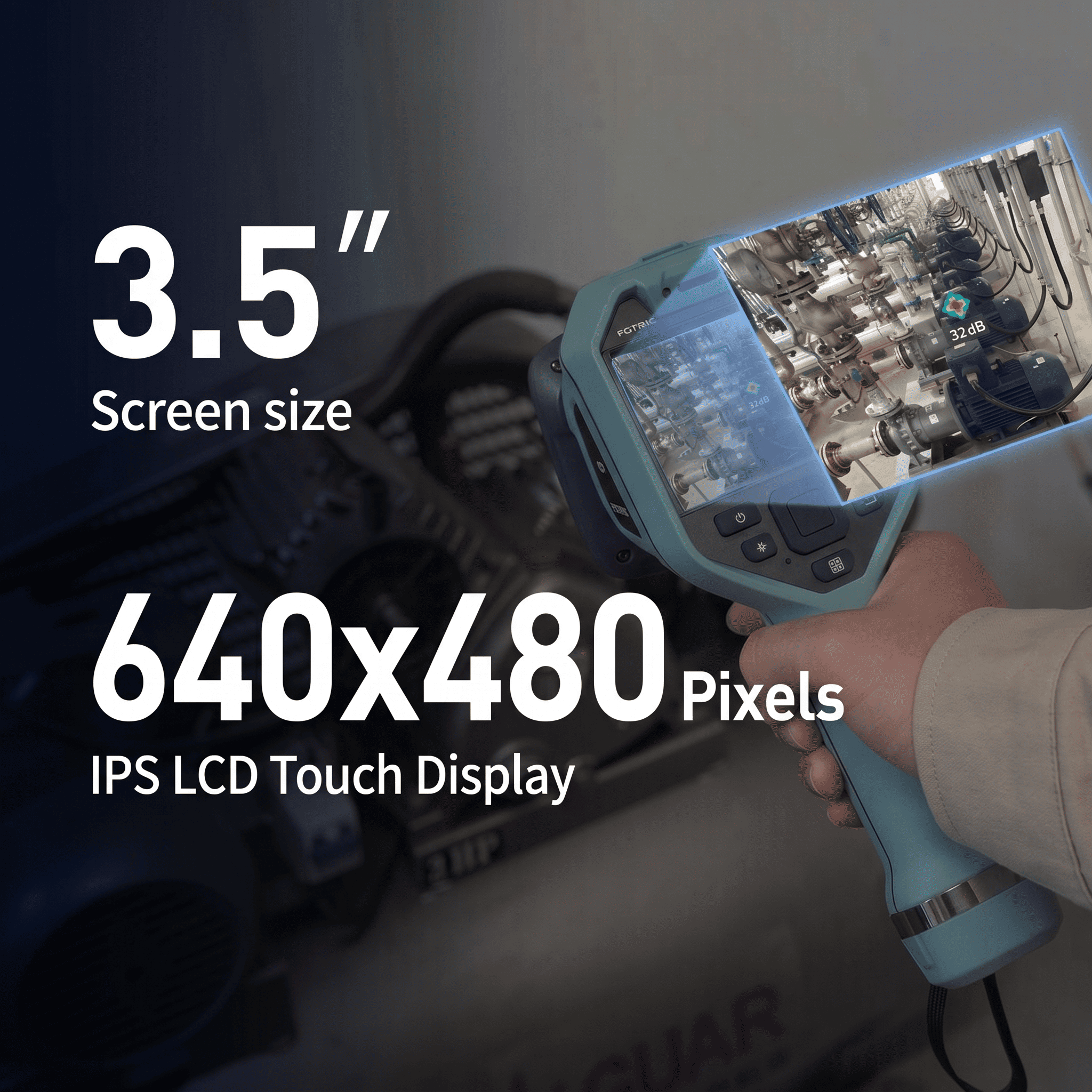

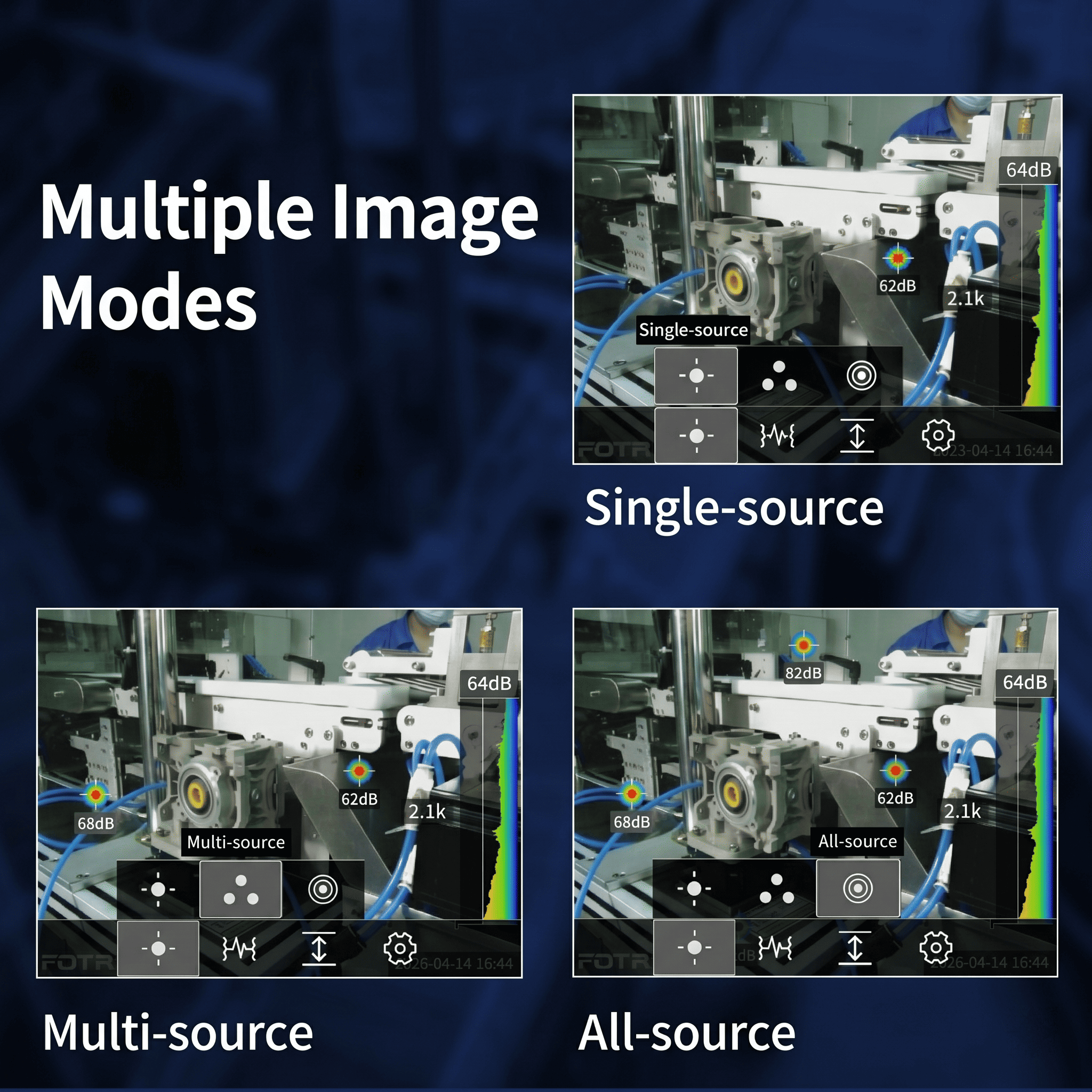

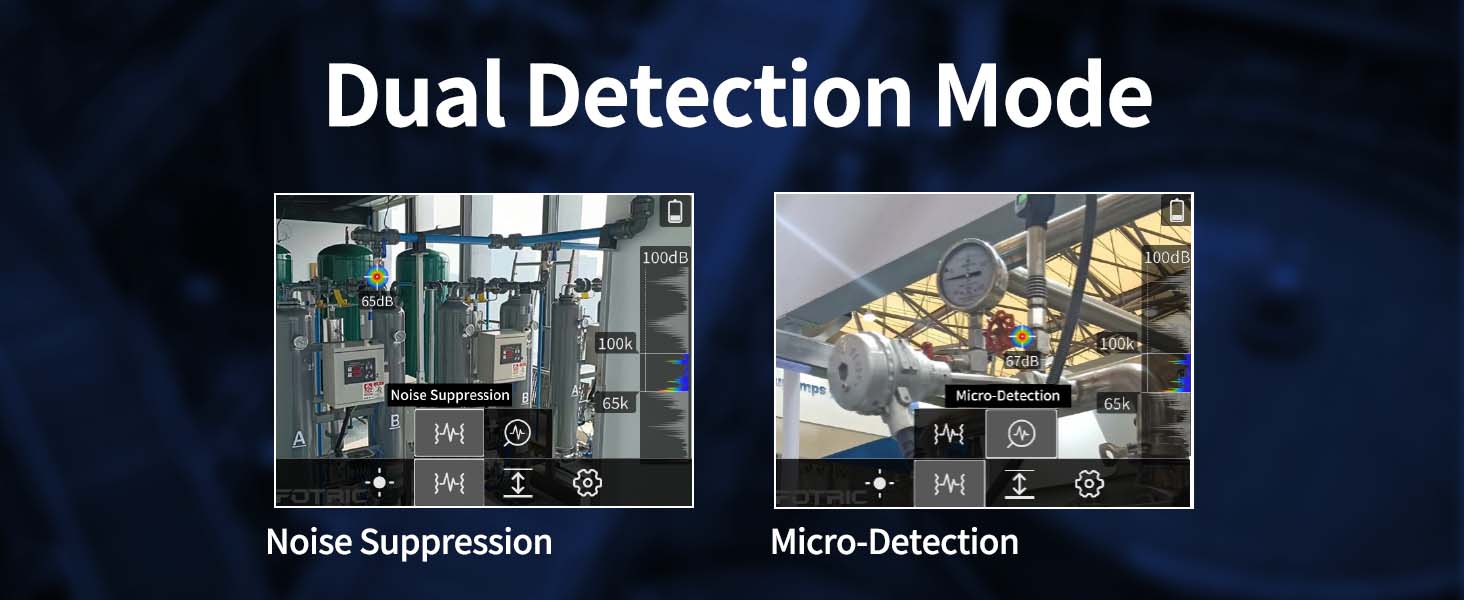

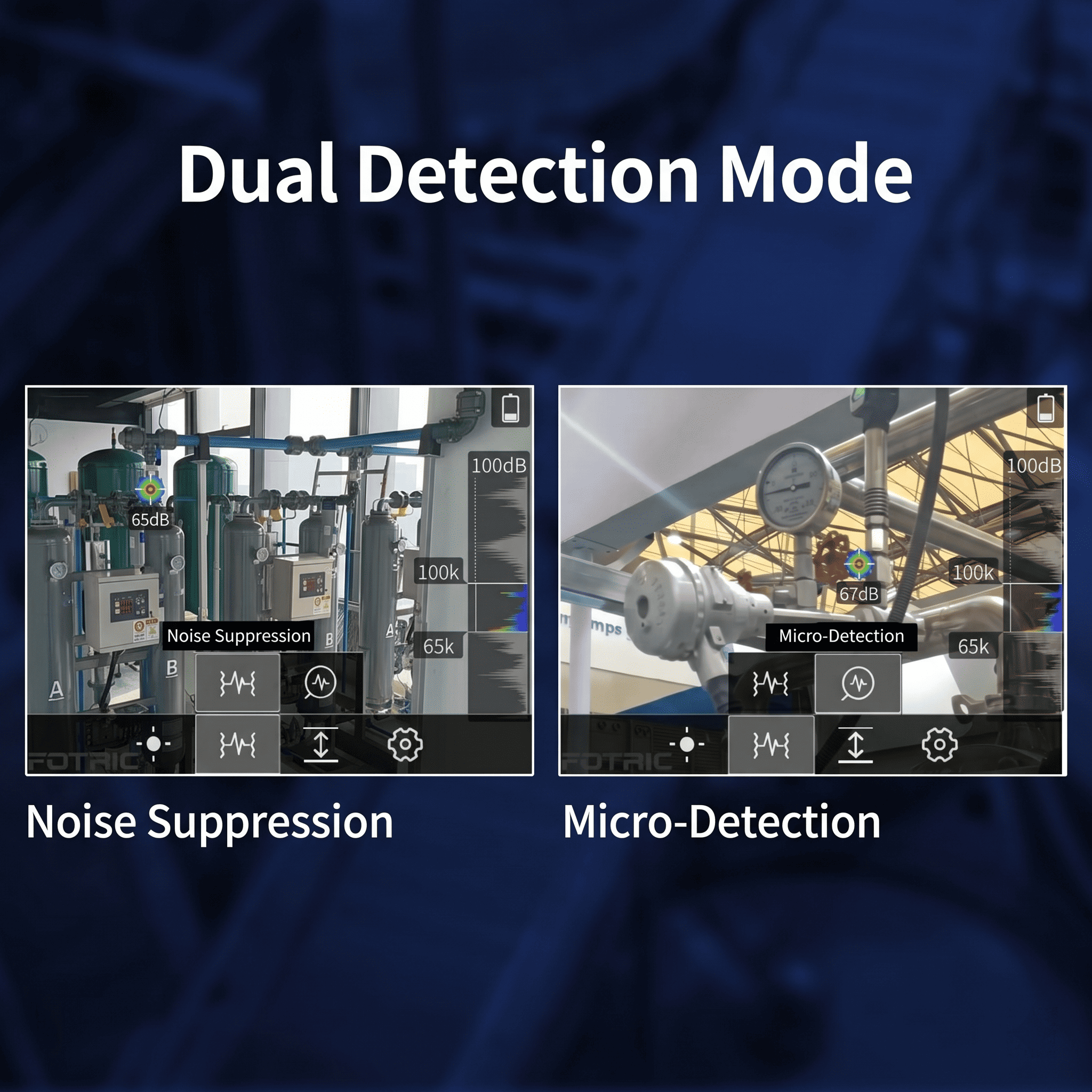

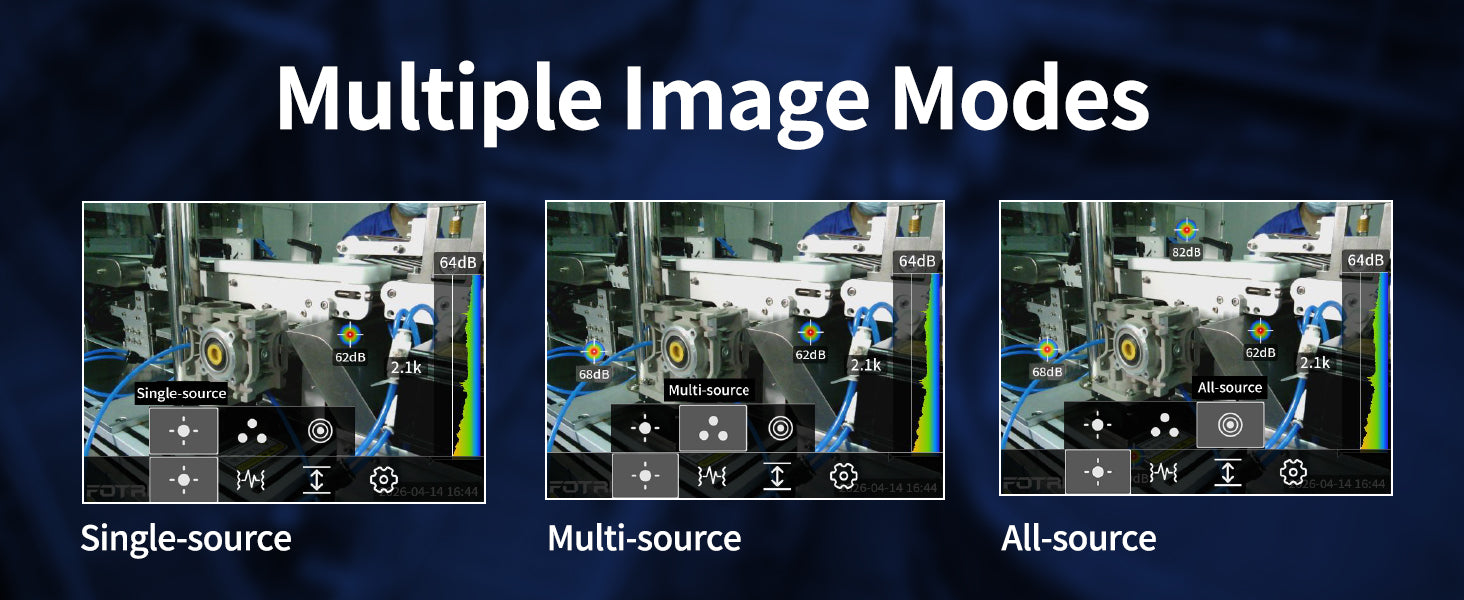

The 3.5" high-resolution IPS touchscreen (640 × 480) with protective cover glass supports single-source, multi-source and all-source display modes. Equipped with noise suppression and micro-detection dual modes, it can overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.
-
Portable & Durable Design
Lightweight and rugged with IP54 rating and 2-meter drop resistance. The FOTRIC TD2e acoustic imager includes a 5000mAh field-replaceable rechargeable battery for ≥3 hours of continuous operation, ideal for field inspections in industrial, HVAC, manufacturing and energy sectors.
FOTRIC은 산업 및 검사 애플리케이션을 위한 전문 열 및 음향 이미징 솔루션을 개발합니다.
FOTRIC 열화상 카메라는 엔지니어, 전기 기술자, 유지보수 팀, 연구원 및 산업 검사 전문가에게 적합합니다.
네, FOTRIC 카메라는 분석, 보고서 작성 및 실시간 모니터링을 위한 PC 소프트웨어와 모바일 애플리케이션을 지원합니다.
FOTRIC은 전문적인 기술 지원, 펌웨어 업데이트 및 지속적인 소프트웨어 개선을 제공합니다.
Specifications
- Microphone channels 64 MEMS Digital Microphone
- Acoustic image field of view (FOV) 58° *45°
- Sound sampling rate 200kHz
- Image Mode Single-source, Multi-source, All-source
- Working distance 0.3~60m
- Positioning frequency range 2k–100kHz
- Frequency range selection Supports manual adjustment of the frequency range Supports displaying the peak frequency
- Display screen 3.5-inch, 640*480 pixels, IPS LCD touchscreen with explosion-proof cover glass
- Noise reduction mode Filters out low-level sounds to reduce environmental interference
- Micro detection mode Captures faint sounds to avoid missing potential issues
- Digital camera 5MP industrial-grade digital camera
- Image format jpg (acoustic image)
- USB interface USB Type-C, compliant with USB 3.0/2.0 standard
- LED illumination lamp Support flashlight illumination and flash mode
- Battery type 3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
- Battery operating time ≥ 3 hours per battery(depends on
- Protection rating IP54(GB/T 4208/IEC 60529)
- Drop resistance Designed for 2-meter drop resistance
- Shock resistance 25g(GB/T 2423.5/IEC 60068-2-27)
- Vibration resistance Vibration resistance
