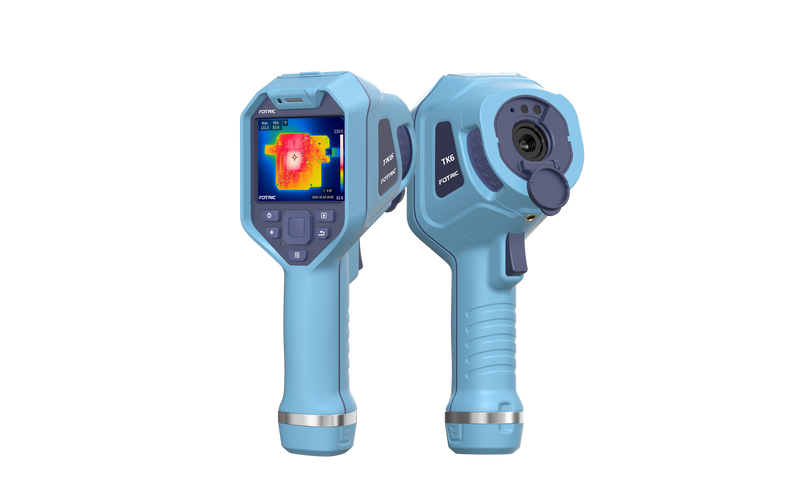

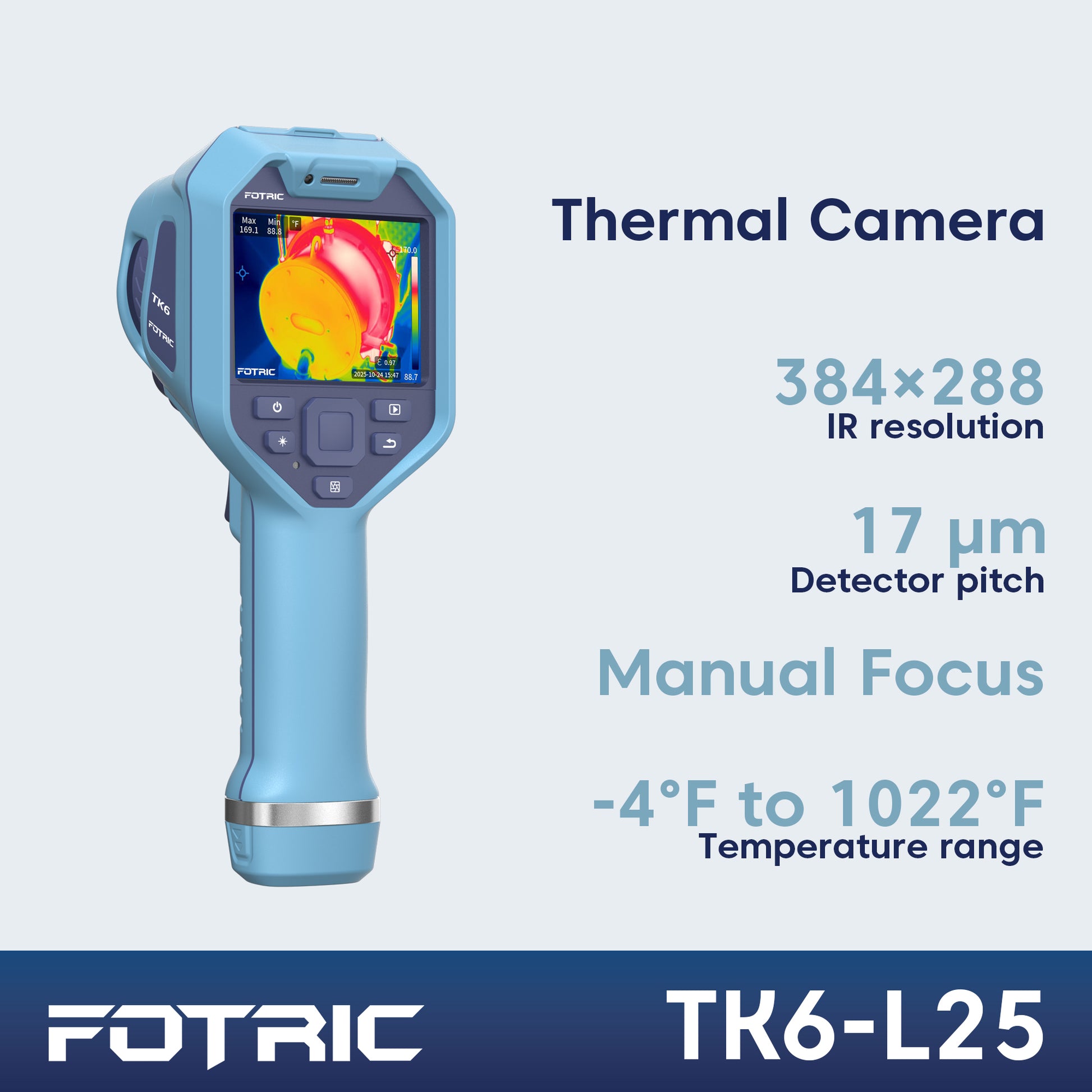

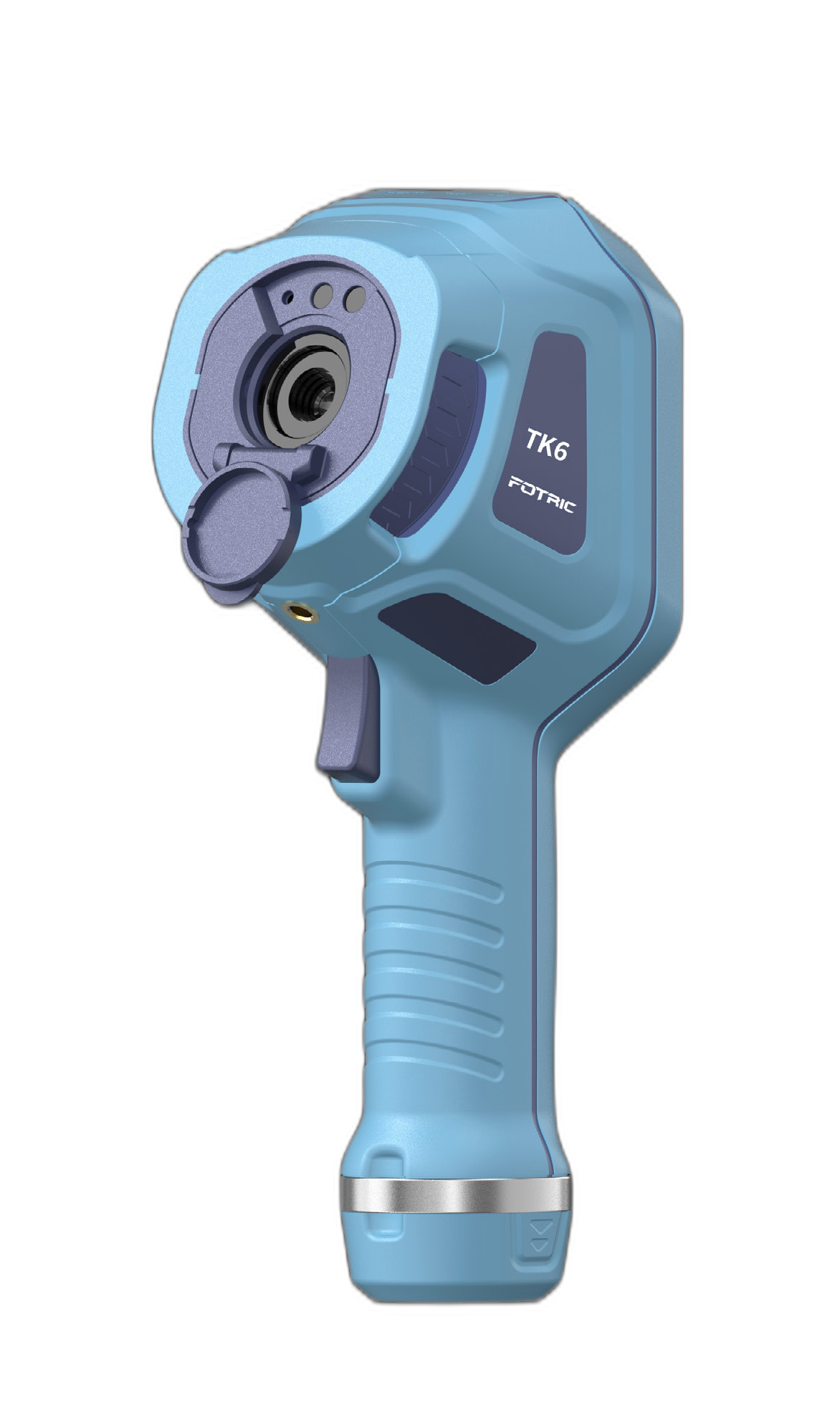

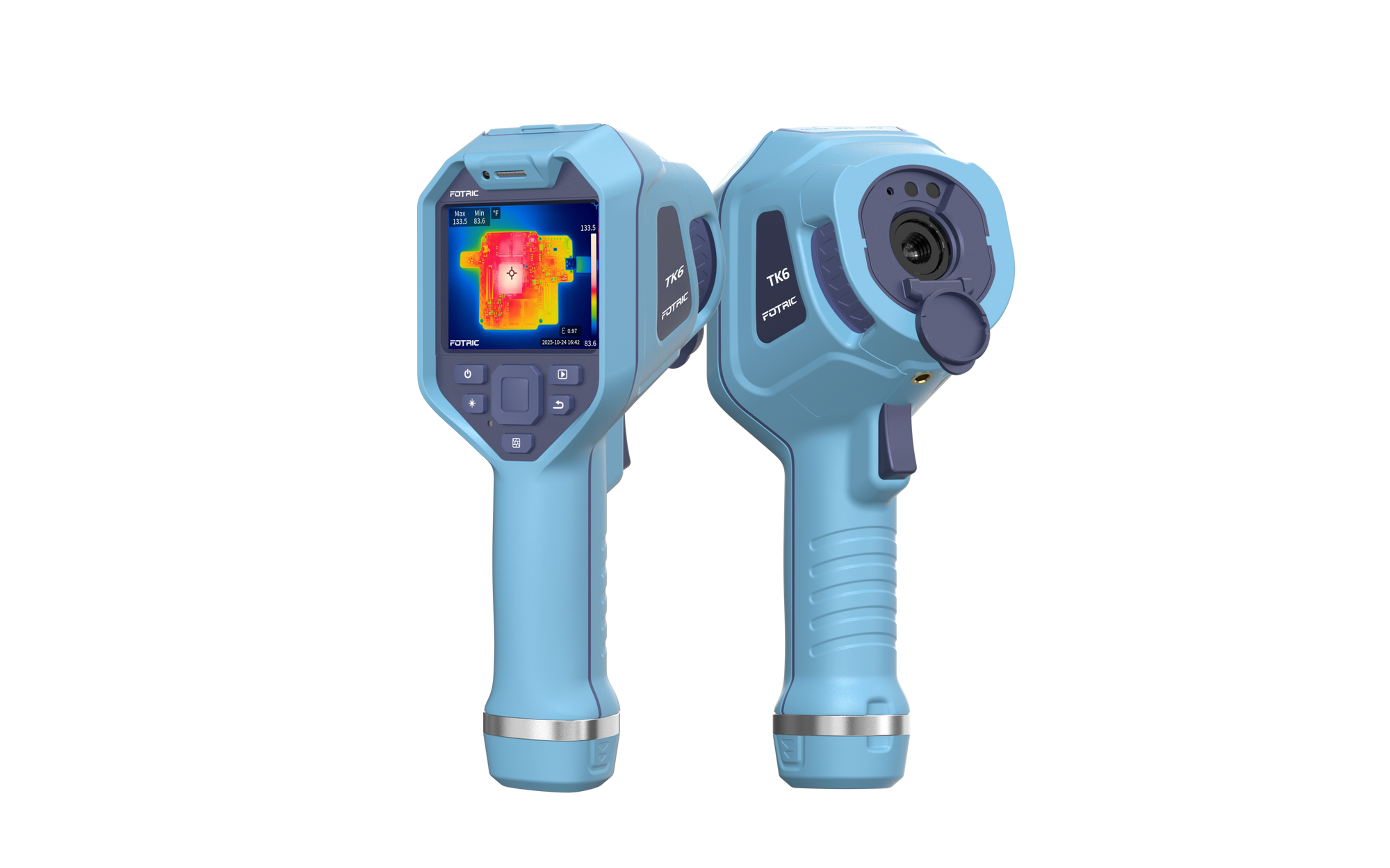

FOTRIC TK6 Thermal Imaging Camera

FOTRIC TK6 열화상 카메라, 384 x 288 IR 해상도, 25°*19° FOV, 건물 및 전기 검사용 5MP 일반 카메라 포함 수동 초점 열화상 카메라, -4°F ~ 1022°F, 3.5인치 터치스크린

정가: $699.00
할인가: $699.00
정가

배송은(는) 결제 시 계산됩니다.

Quantity:

Professional-Grade Thermal Imaging

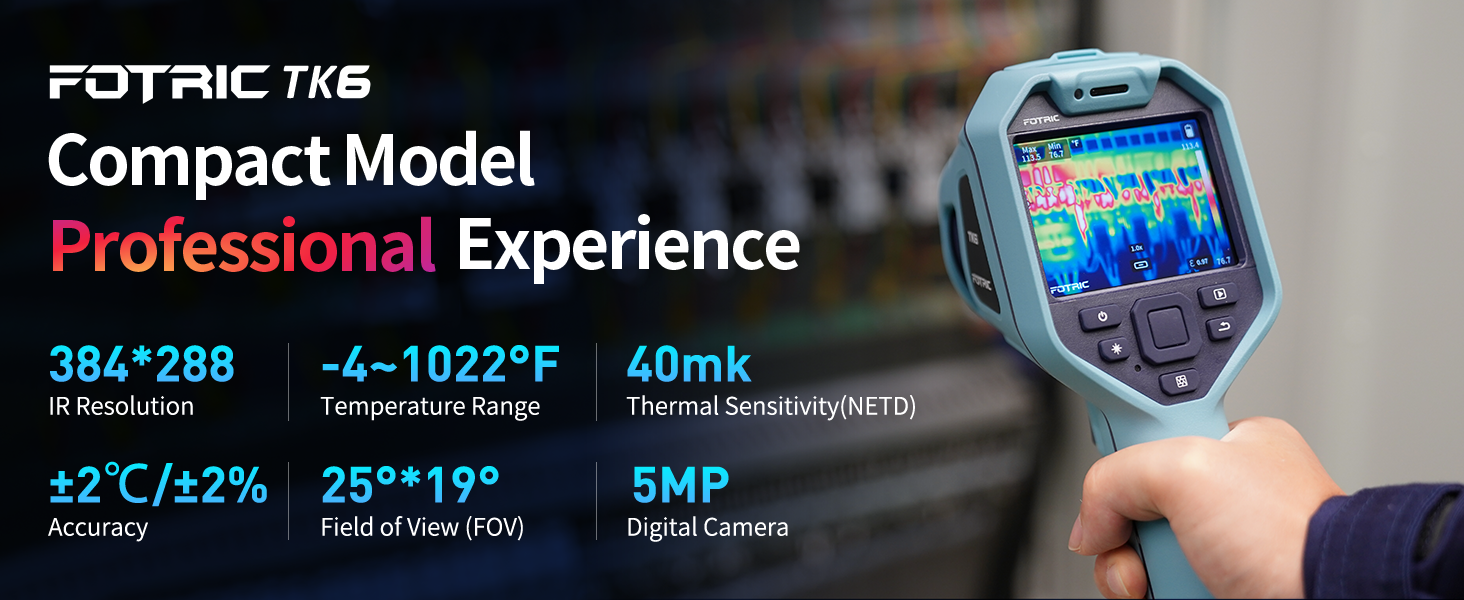

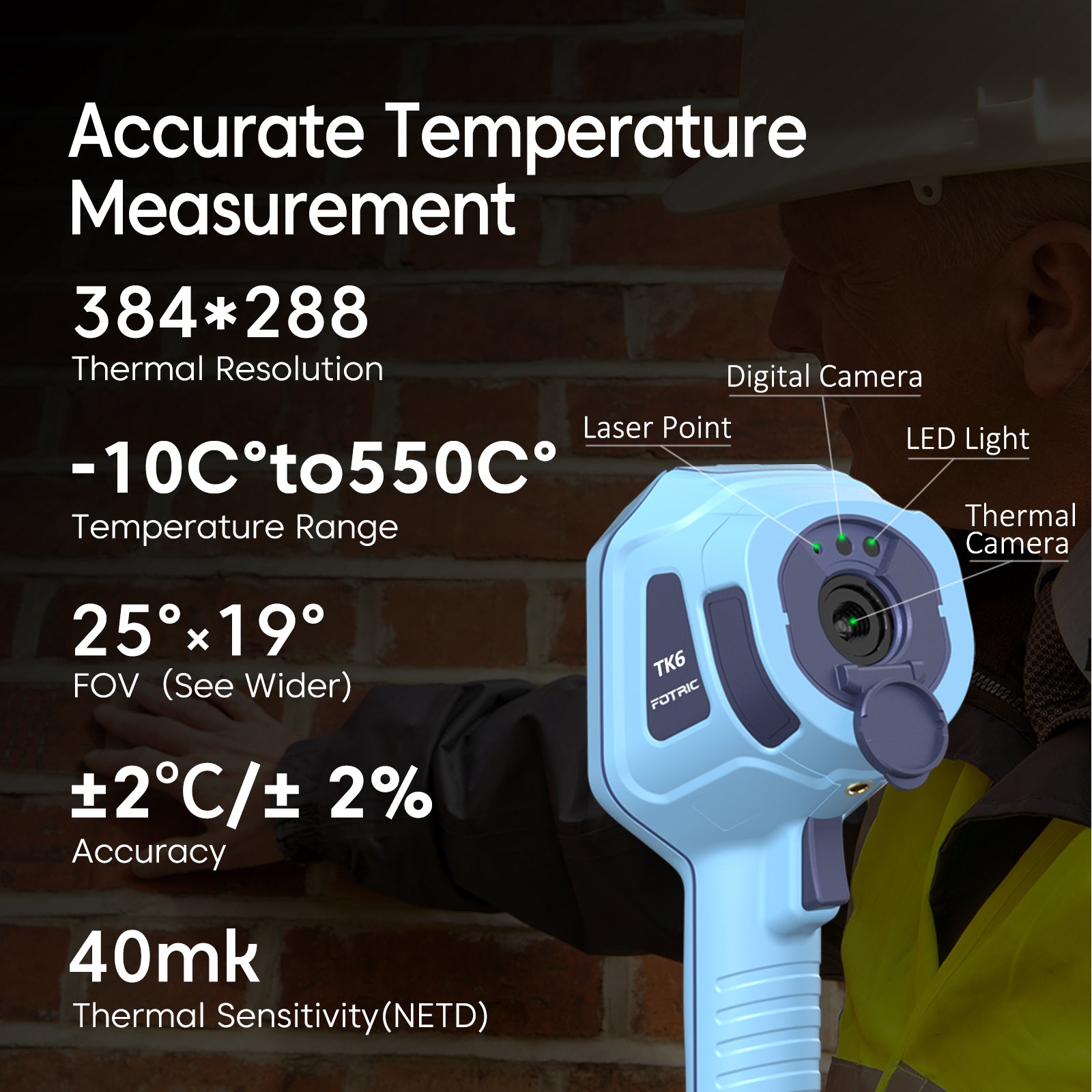

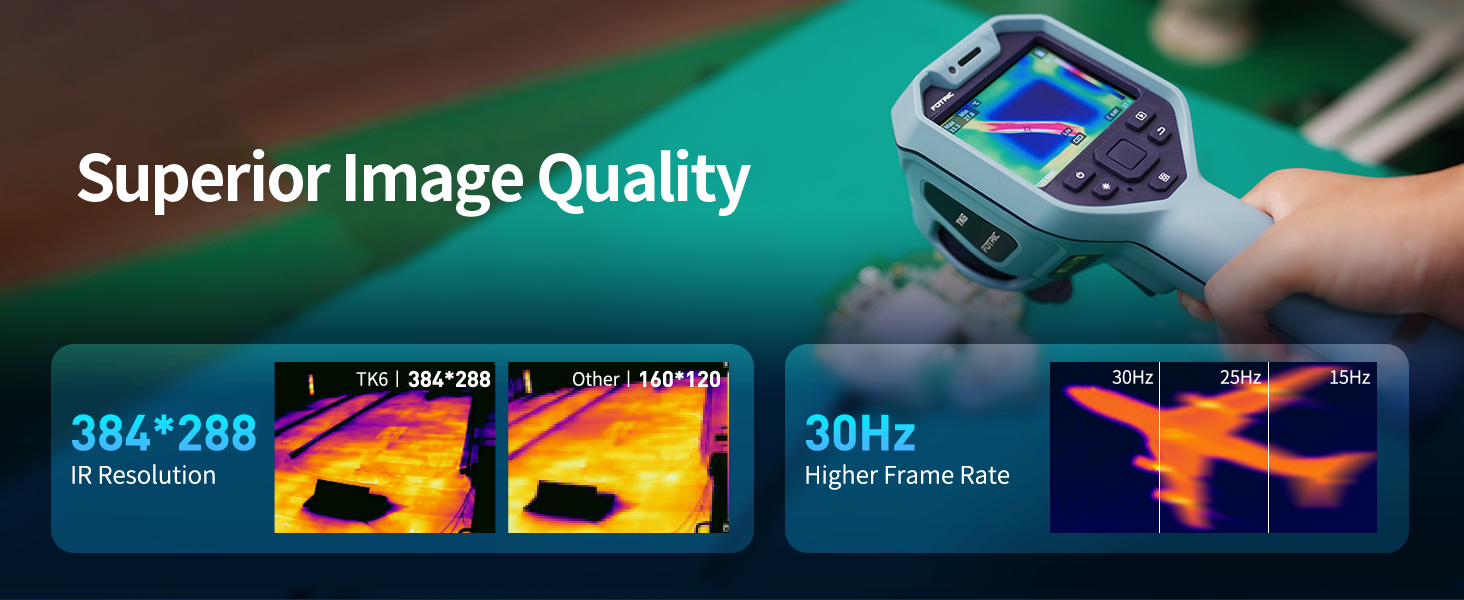

FOTRIC TK6 combines a true 384 × 288 infrared detector (110,592 real pixels) with ceramic sensor packaging, ensuring durability, accuracy, and reliability in demanding industrial environments. In the thermal imaging industry, 384 × 288 and above defines the professional class—below this range, most products rely on interpolated or algorithmic “up-res” methods that simulate higher resolution rather than capturing it.
High Precision
At its core, the TK6 employs a 17 µm pixel-pitch detector, larger than the 12 µm sensors commonly used in budget models. The result is a stronger signal-to-noise ratio and sharper, higher-contrast thermal images, especially when detecting subtle temperature differences. With 40 mK thermal sensitivity, TK6 detects temperature differences as small as 0.04 °C—ideal for pinpointing electrical hotspots, heat leaks, electrical faults, or building defects.

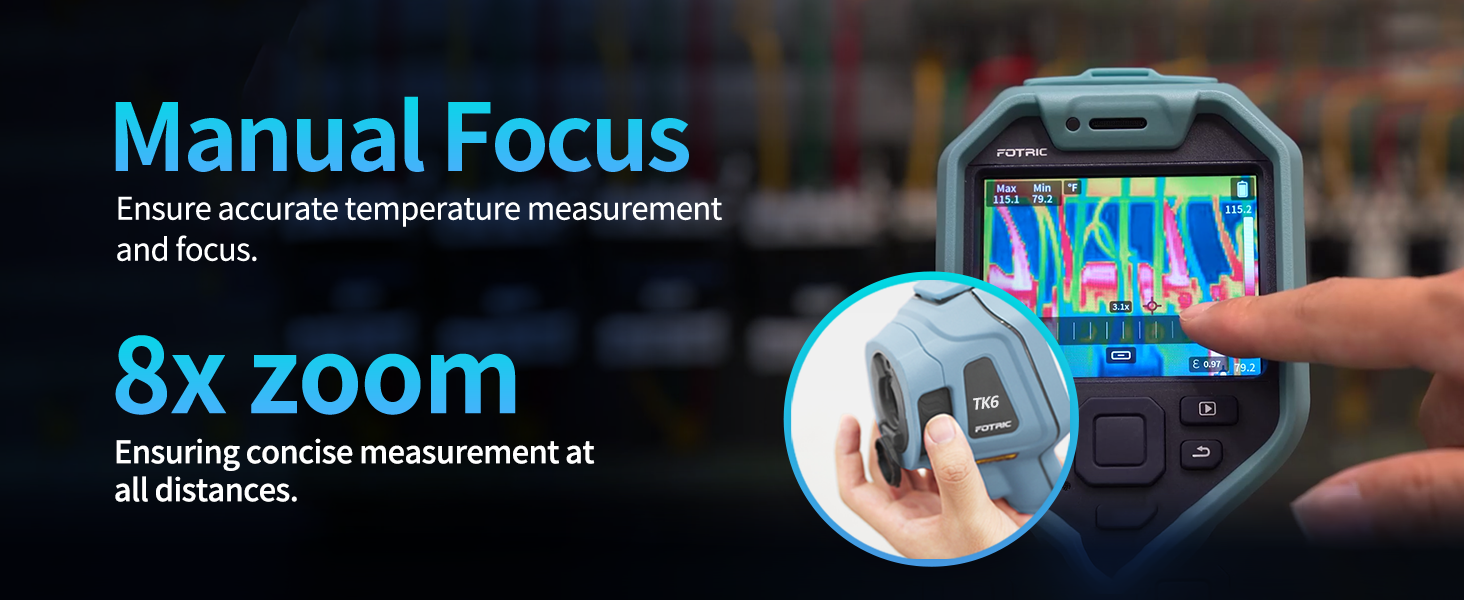

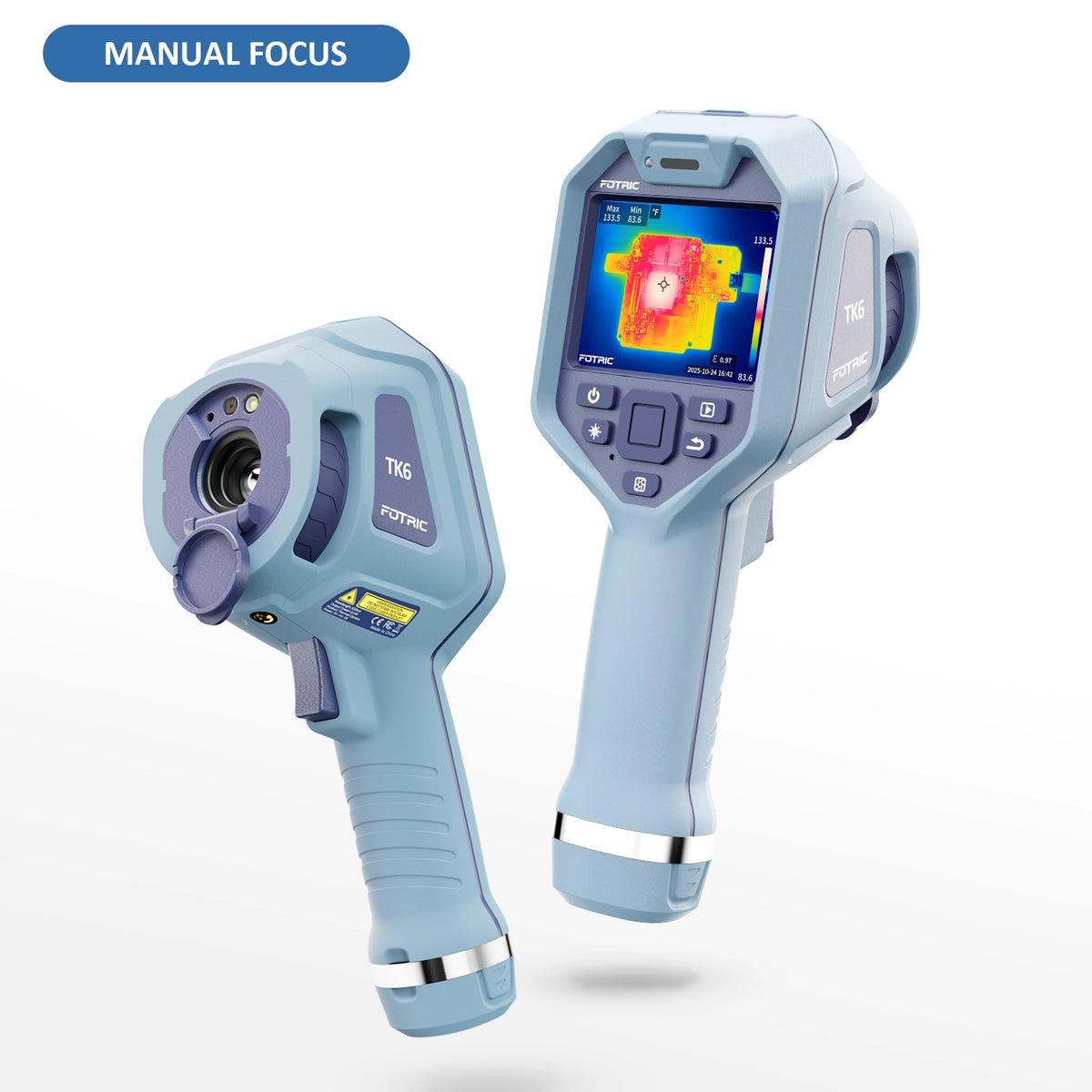

Manual Focus
The manual focus lens—a hallmark of professional imagers—enables precise clarity across varying distances, ensuring accurate temperature readings whether the target is near or far. In contrast, focus-free entry-level cameras can only measure accurately at a single fixed range.
Smart Tools for Faster Diagnostics

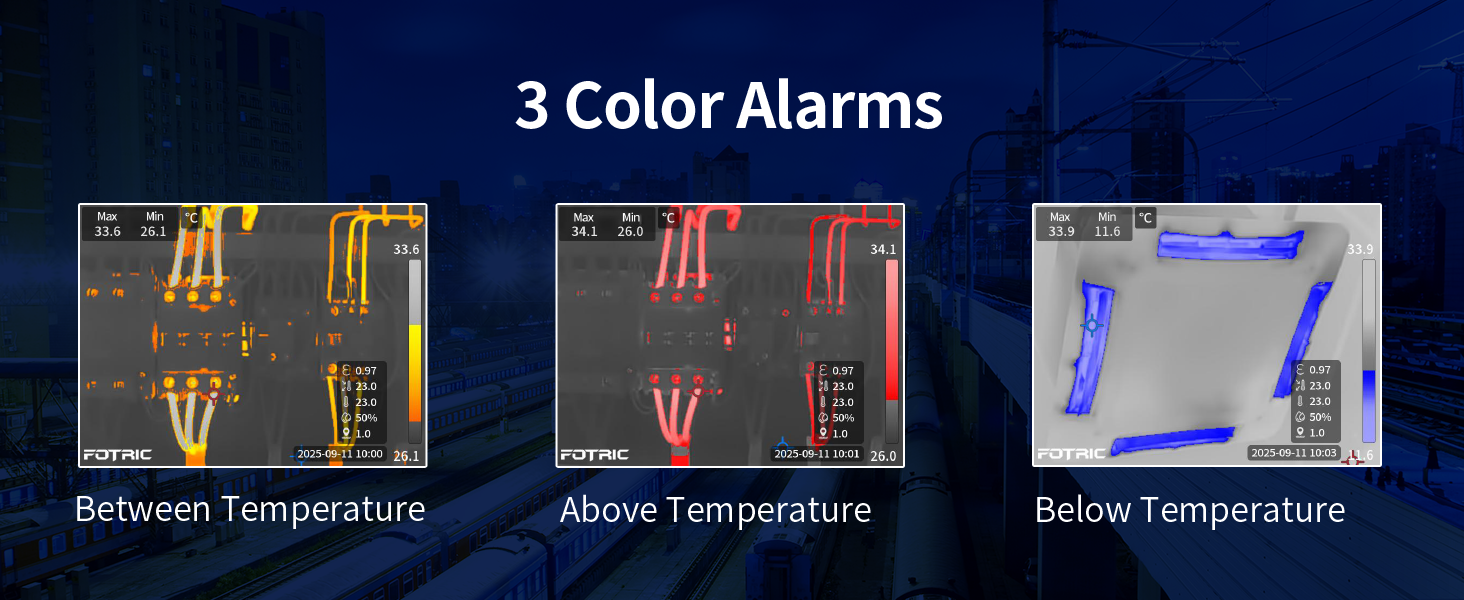

Features include auto hot/cold spot tracking, adjustable emissivity, and real-time color alarms for temperature thresholds. Ideal for:

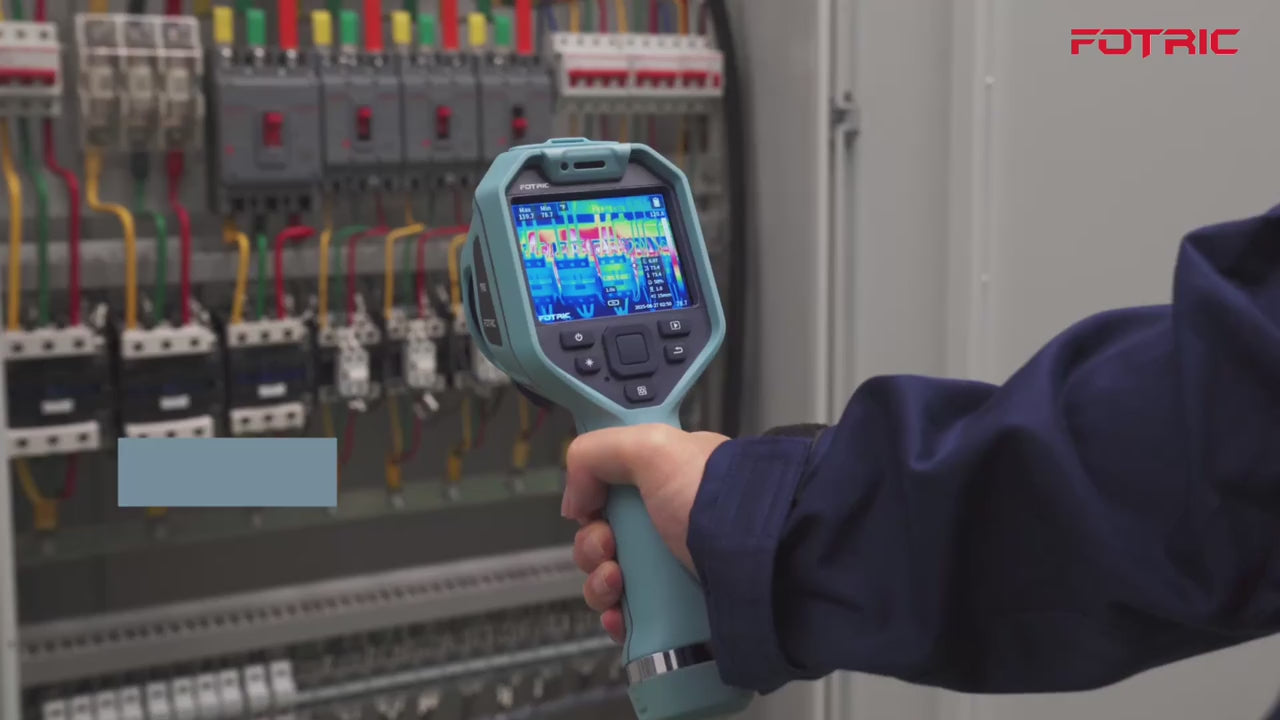

1. Electrical inspections – locate overloaded circuits or faulty connections
2. HVAC inspections – identify refrigerant leaks or ductwork inefficiencies
3. Building inspections – detect moisture intrusion or energy loss behind walls
4. Home inspections – floor heating issues, house leaks, sewer blockages
5. PCBA inspections – manual focus enables detection of abnormal temperature distribution; clear images can be captured at distances as close as 10 cm
Image Modes & TWB Feature

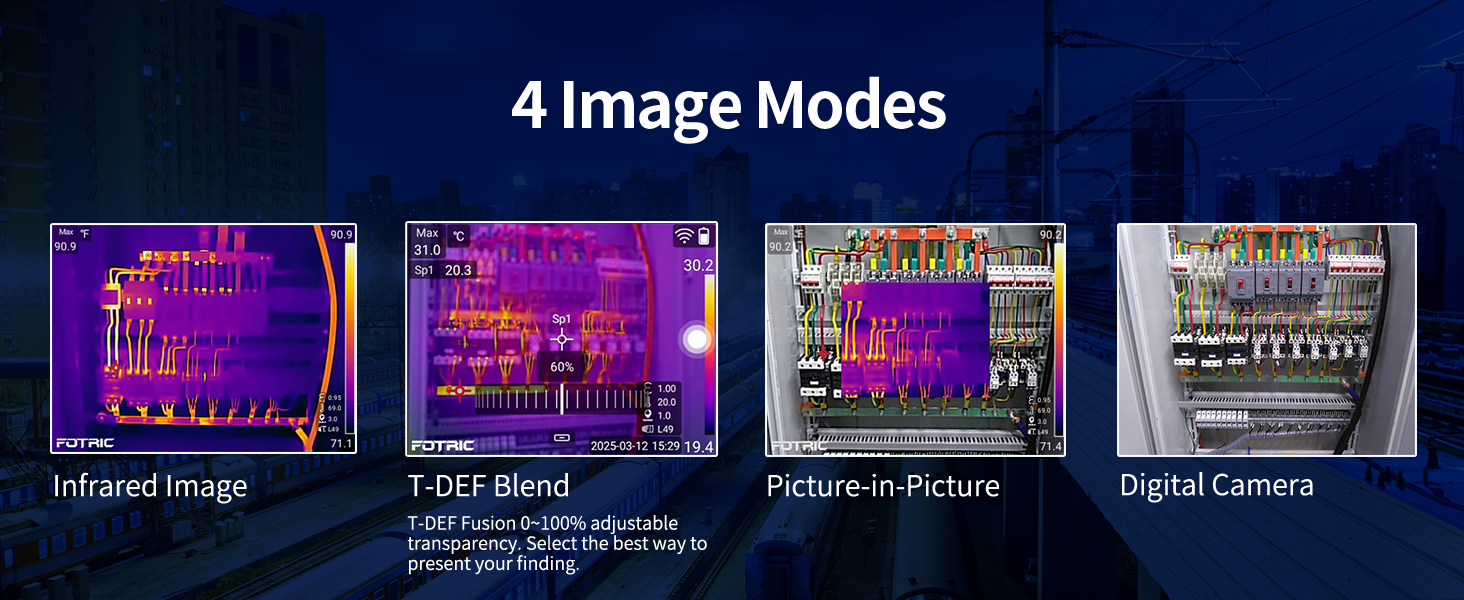

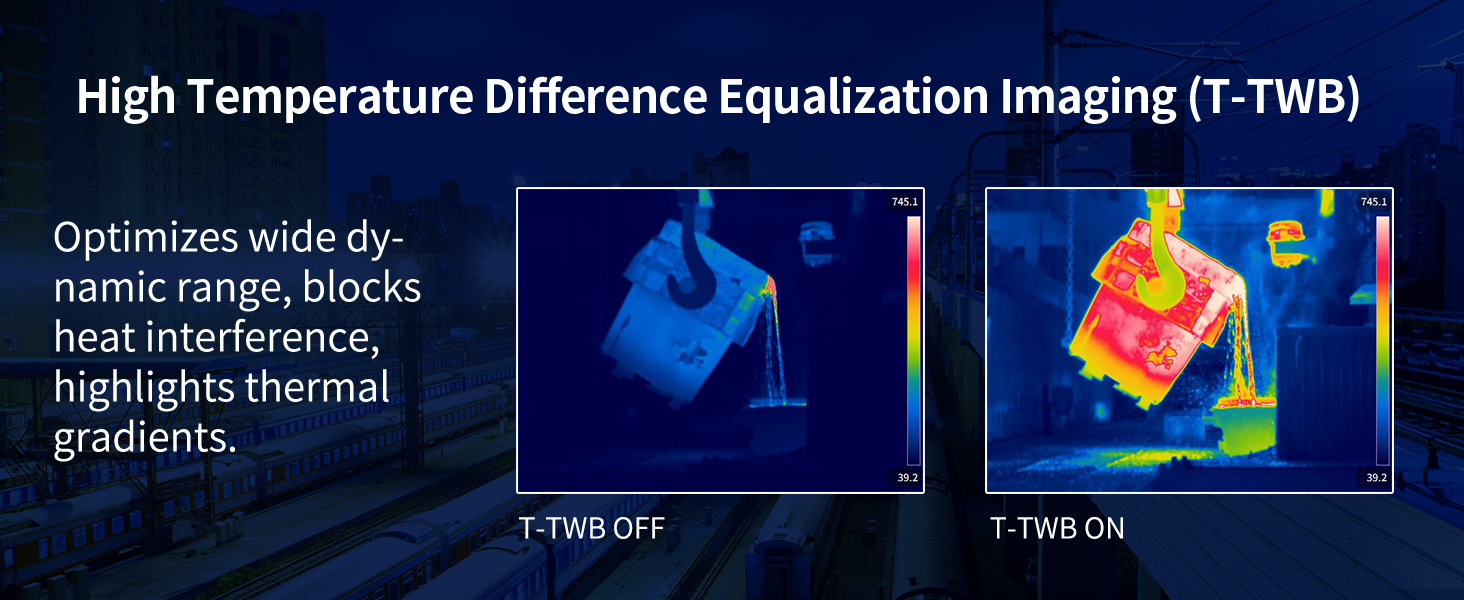

TK6 offers four image modes: Infrared Image, T-DEF Fusion, Picture-in-Picture, and Digital Camera. The TWB feature dynamically re-scales the color palette based on pixel temperature distribution, allowing inspectors to visualize overall temperature patterns more clearly and accurately.
Portable & Rugged Design

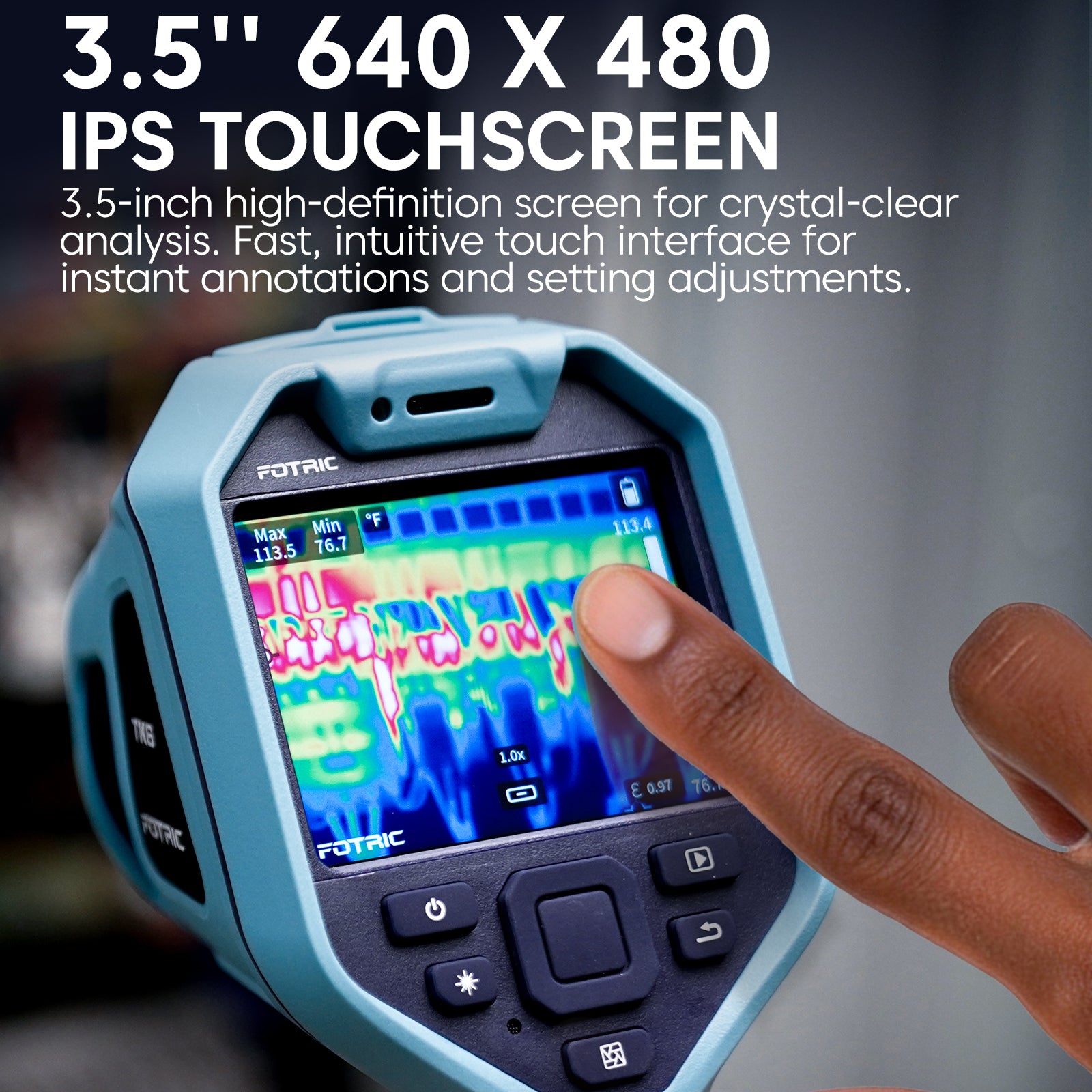

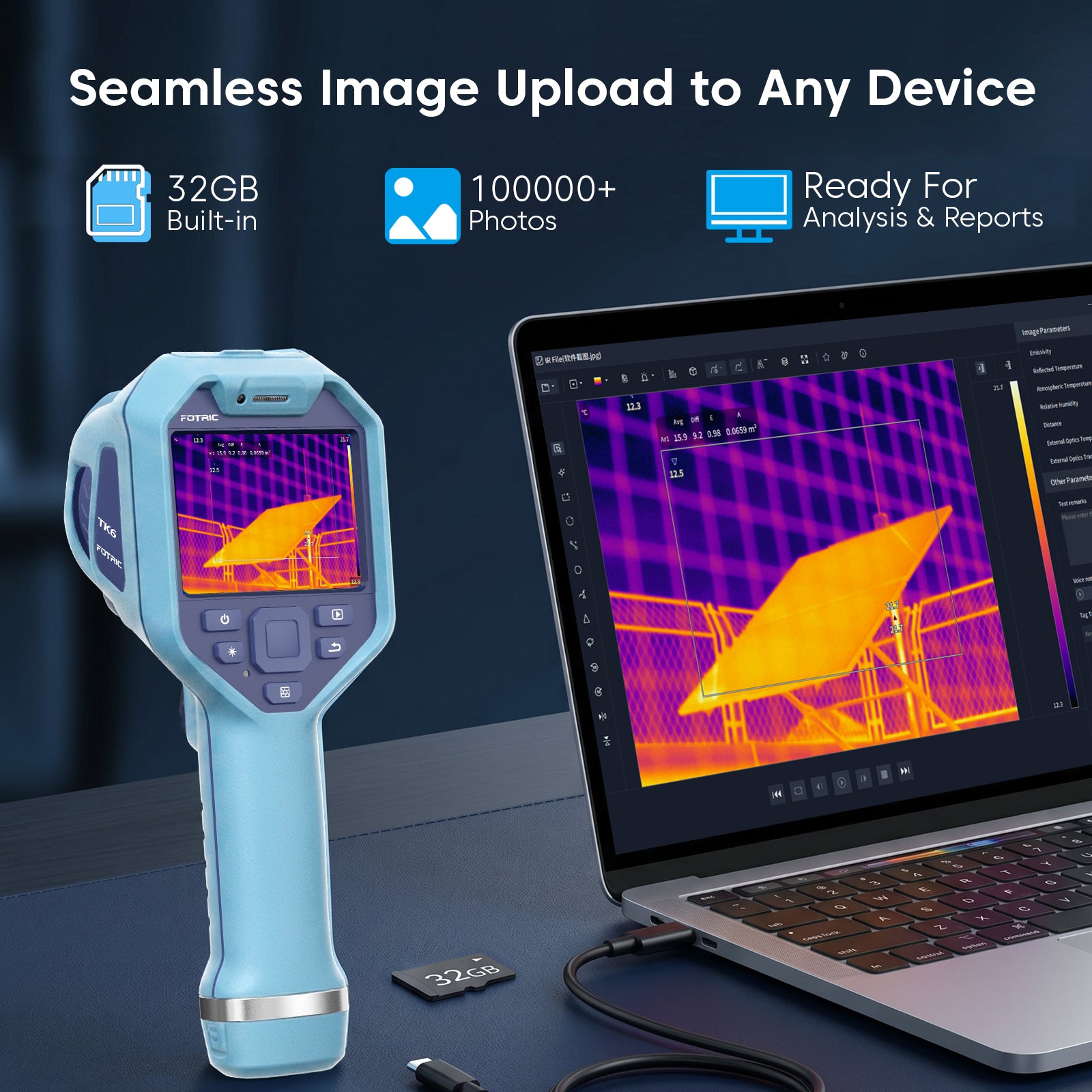

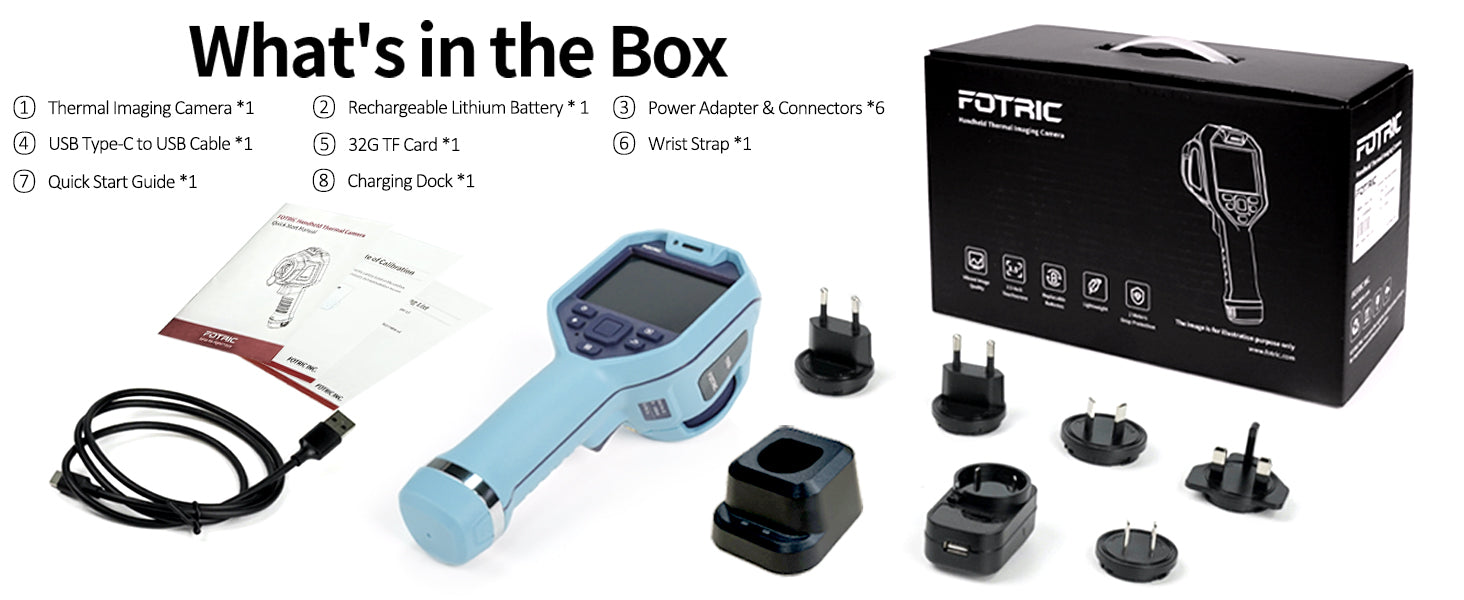

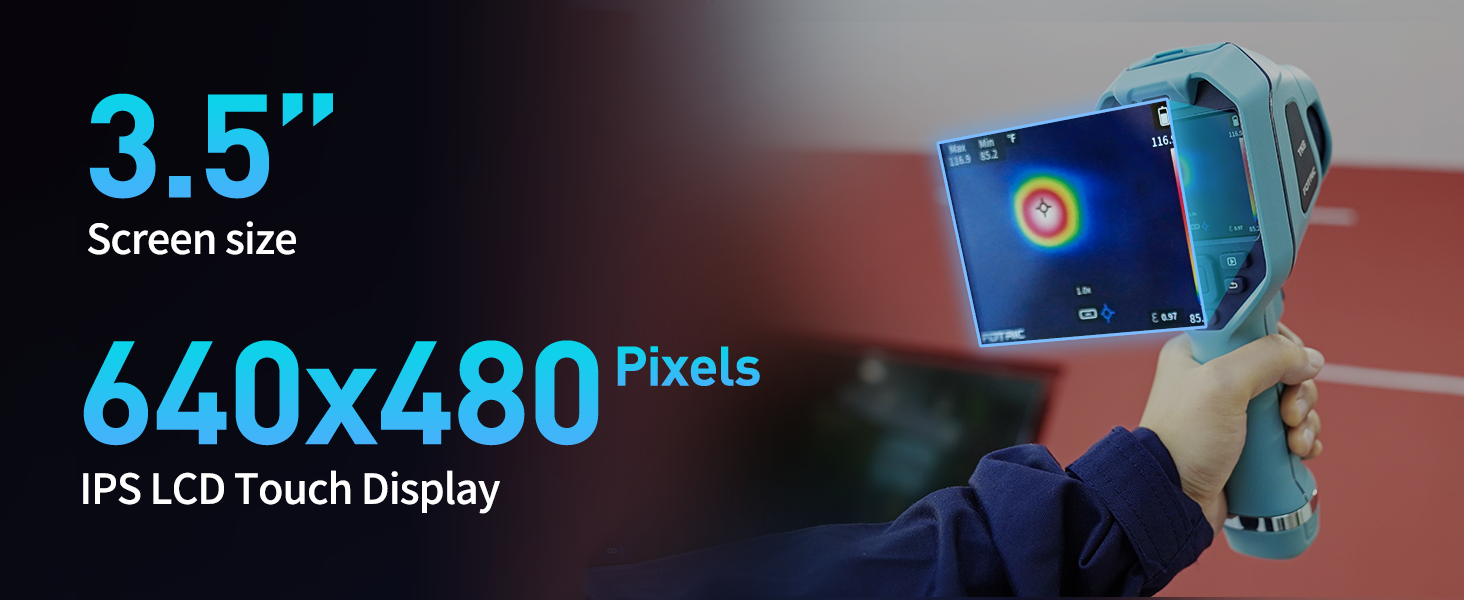

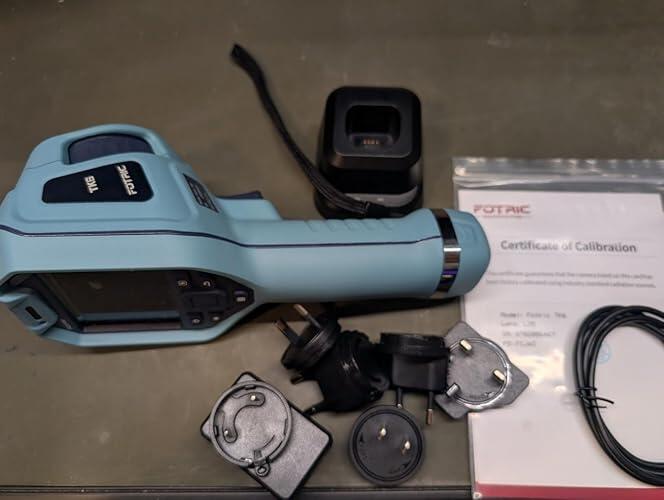

The thermal camera complies with IP54 standards for dust and water splash protection and offers 2 m drop resistance (IEC 60068-2-32 tested). A 3.5" touchscreen and 5 MP visual camera ensure clear documentation in bright sunlight or dark environments. Stores JPG thermal images on a 32 GB TF card. Includes one removable 5000 mAh Li-ion battery providing 4+ hours of continuous use, with USB-C fast charging (approximately 2.5 hours to full). Weighs just 1.59 lbs (0.72 kg).

FOTRIC은 산업 및 검사 애플리케이션을 위한 전문 열 및 음향 이미징 솔루션을 개발합니다.

FOTRIC 열화상 카메라는 엔지니어, 전기 기술자, 유지보수 팀, 연구원 및 산업 검사 전문가에게 적합합니다.

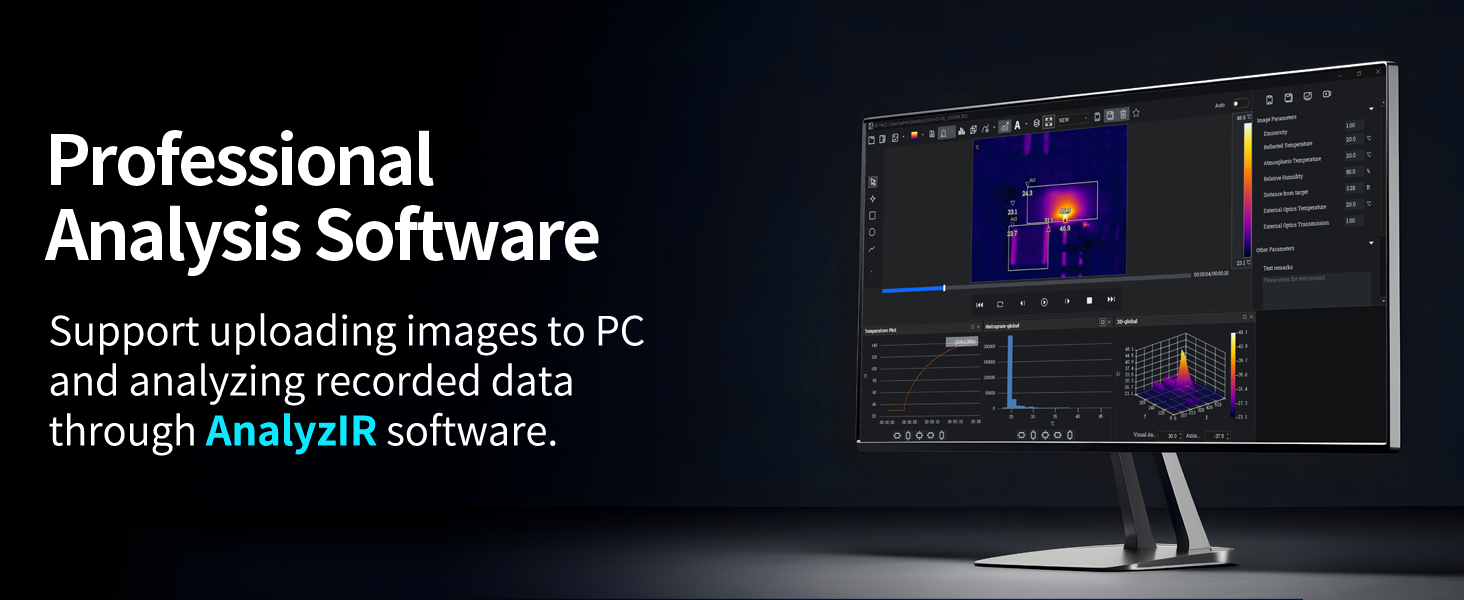

네, FOTRIC 카메라는 분석, 보고서 작성 및 실시간 모니터링을 위한 PC 소프트웨어와 모바일 애플리케이션을 지원합니다.

FOTRIC은 전문적인 기술 지원, 펌웨어 업데이트 및 지속적인 소프트웨어 개선을 제공합니다.

미국 내 무료 배송

30일 반품 정책

2년 보증

24/7 고객 지원

Specifications

Image Frame Rate 30Hz

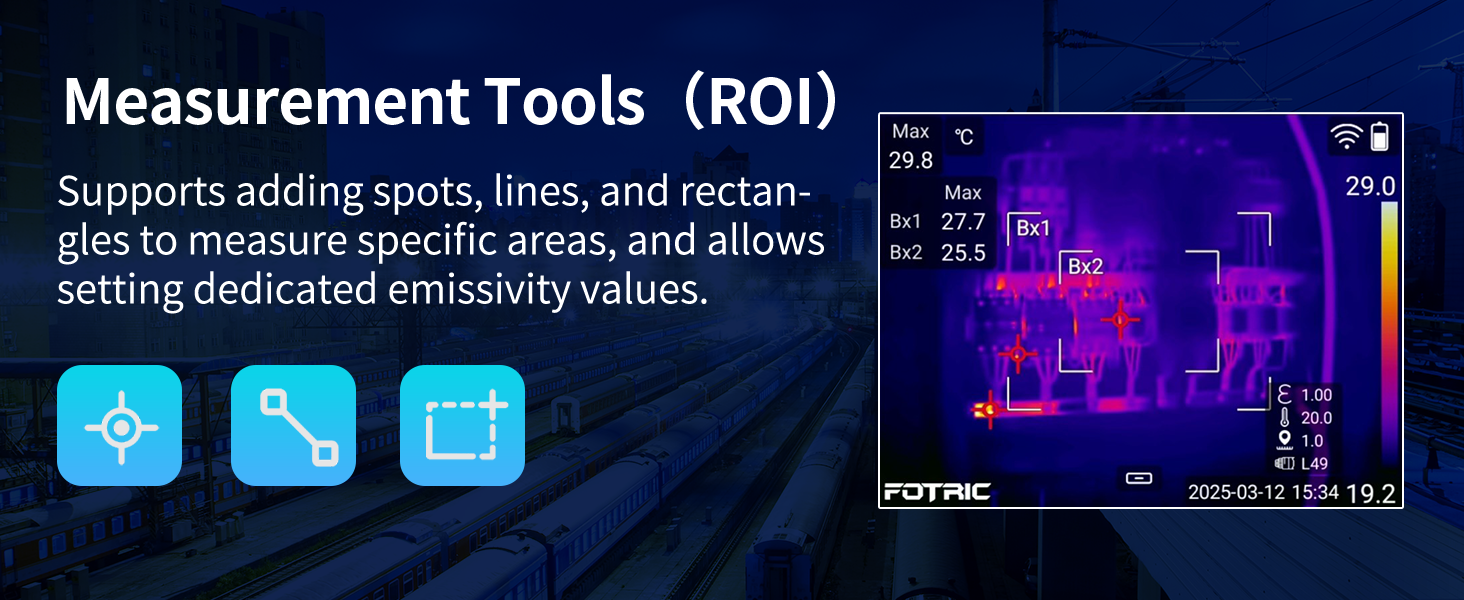

Measurement Spot 20
Measurement Line 10
Measurement Area 10
Image Mode Thermal image, Digital camera, Picture in Picture & T-DEF® blend
T-DEF® Support, thermal and visible light image blend, transparency 0% ~100%
T-TWB® Support histogram thermal color display
Infrared Resolution 384x 288
IR Detector Type Uncooled FPA infrared detector
Thermal Sensitivity（NETD) 40mk(0.04° C)@30° C(86 ℉ )
Detector Pitch 17μm
Spectral Range 8-14μm
Field of View (FOV) 25° x 19°
Spatial Resolution (IFOV) 1.14 mrad
Minimum Imaging Distance 0.15m
Focus Mode Manual focus

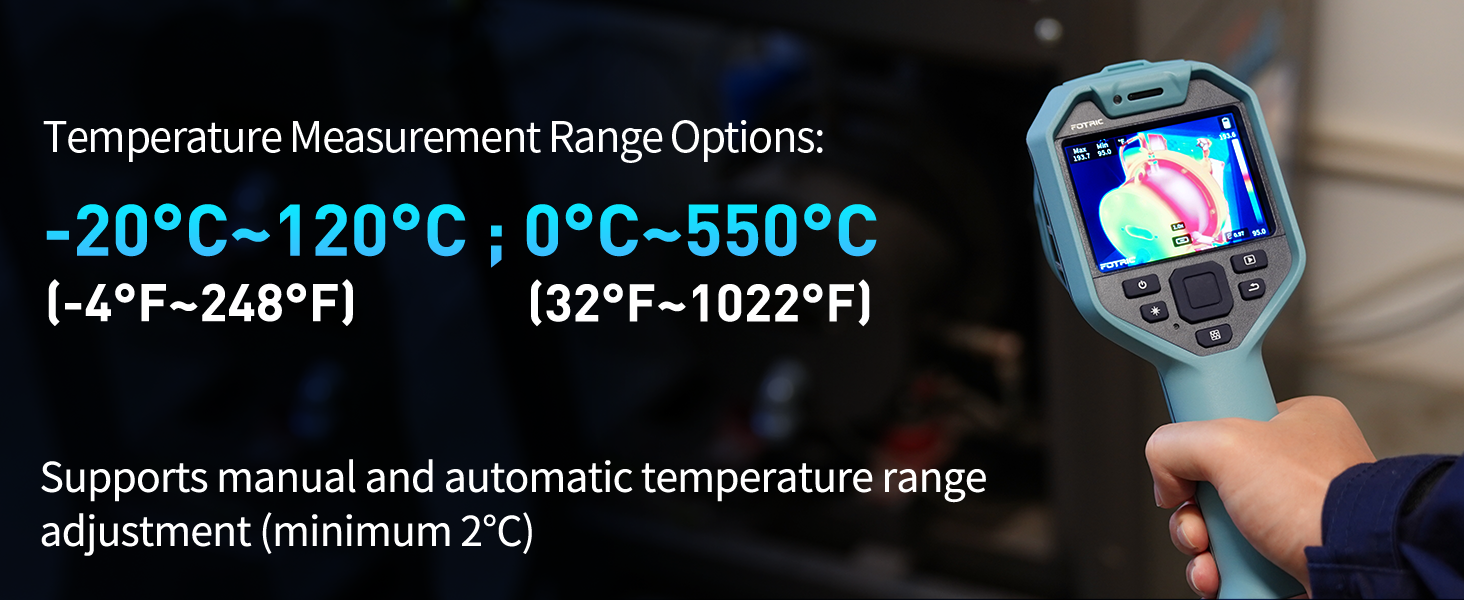

Complete Temperature Range -20~550℃ (-4~1022 ℉ )
Accuracy ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter)
Digital Camera 5 MP industrial camera
Battery Type Rechargeable Li-ion, 3.6V, 5000mAh,≥ 4 hours
